Overview

Reliable Power Backup for Critical Equipment

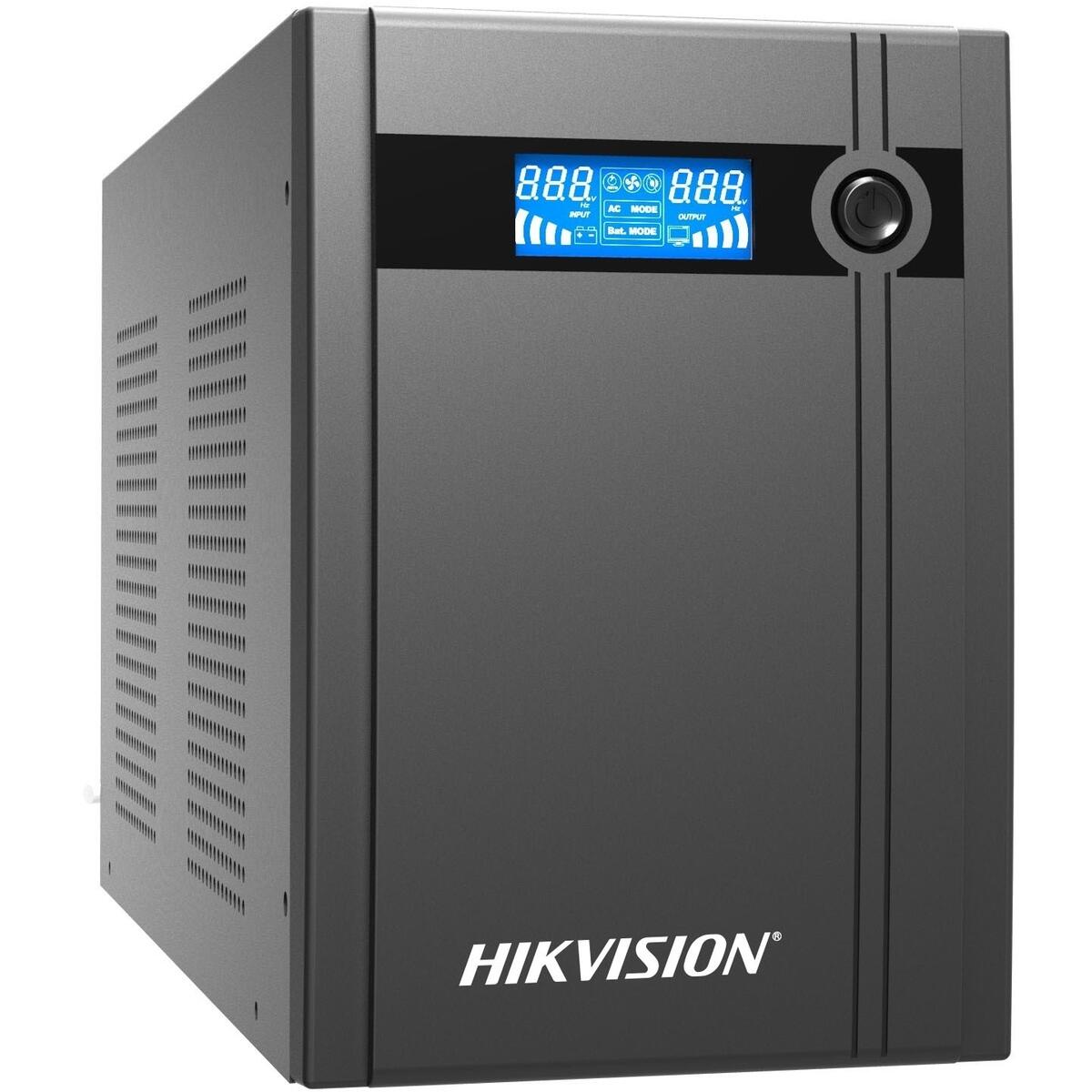

The Hikvision DS-UPS3000 is a dependable uninterruptible power supply (UPS) designed to keep essential equipment operating during power interruptions and voltage fluctuations. With a built-in Automatic Voltage Regulator (AVR), a wide input voltage range, and rapid charging capability, it helps protect connected devices from unstable power conditions. The integrated LCD display provides clear system information, while the USB port enables convenient remote monitoring and control.

Description

Ideal for offices, security installations, networking equipment, and other business-critical applications, the Hikvision DS-UPS3000 delivers stable backup power when you need it most. Its advanced protection functions help safeguard connected devices against overloads, short circuits, and power surges, reducing the risk of downtime and equipment damage. The combination of efficient battery charging, dependable runtime, and user-friendly monitoring makes this UPS an excellent choice for maintaining business continuity.

Features

Key Benefits

• Built-in Automatic Voltage Regulator (AVR) for stable power output
• Wide input voltage range for improved performance in unstable power environments
• Fast battery charging for reduced downtime
• LCD display for real-time operating status
• USB connectivity for remote monitoring and management
• Protection against overloads, short circuits, and power surges

Performance Details
The DS-UPS3000 provides up to 1800W of backup power and is engineered to deliver consistent performance during unexpected outages. A transfer time of approximately 10 ms helps ensure a smooth transition to battery power, minimizing interruptions to connected equipment.

Its internal battery system consists of four 12V 9Ah sealed lead-acid batteries, offering reliable backup with a recharge time of approximately 6 to 8 hours to reach 90% capacity. Under a 100W load, the unit can provide up to 150 minutes of runtime, making it suitable for extended backup requirements.

Technical Information

• Part Number / SKU: 314001229
• Model: Hikvision DS-UPS3000
• Maximum Output Power: 1800W
• Input Voltage Range: 140 VAC to 290 VAC
• Output Voltage Range: 210 VAC to 235 VAC
• Transfer Time: 10 ms
• Waveform: PWM
• Battery Type: 12V / 9Ah Lead-Acid x4
• Battery Recharge Time: 6 to 8 hours to 90% capacity
• Runtime: Up to 150 minutes at 100W load
• Display: LCD screen
• USB Port: Yes, for remote control and monitoring

Ideal Applications
The Hikvision DS-UPS3000, Part Number 314001229, is well suited for protecting:

• CCTV and surveillance systems
• Network switches and routers
• Office computers and workstations
• Point-of-sale systems
• Small servers and communication equipment
• Other critical electronic devices requiring uninterrupted power

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	314001229
Input
Input Voltage Range	140 VAC to 290 VAC
Input Frequency	50/60 Hz self-adaptive
Plug Type	AU TYPE I , TYPE H , Type B (NEMA 5-15) , TYPE L (10A) , UK TYPE G , Schuko
Output
Output Voltage Range	210 VAC to 235 VAC
Output Frequency	50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time	≤ 10 ms
Waveform	PWM
Outlet Type	AU TYPE I , TYPE H , Universal , TYPE L (10/16A)
Outlet Number	4
Battery
Battery Type	12 V/9 Ah *4 pcs, lead-acid battery
Recharge Time	6-8 hours recover to 90% capacity
Typical Backup Time	Run time at 100w: 150 min
	Run time at 600w: 15 min
	Run time at 900w: 6 min
Interface
Communicate Ports	USB
Protection
Full Protection	Surge protection, Overload protection, Discharge protection, Short circuit protection
Indicator
Display	LCD Screen
	Input Voltage, Output Voltage, Battery capacity, load level
Alarm	Charging Mode (DC mode): Sounding every 8 seconds
	Low Battery: Sounding every second
	Overloading Mode: Sounding every 0.5 seconds
	Fault: Continuously sounding
General
Operating Temperature	0 degreesC to 40 degreesC (32 degreesF to 104 degreesF)
Operating Humidity	30% to 90% (non-condensing)
Dimension	412 mm x 145 mm x 210 mm (16.22" x 5.71" x 8.27")
	Approx. 18.5 kg (40.8 lb)
