90BXG4E01-A20KA0W

Overview:

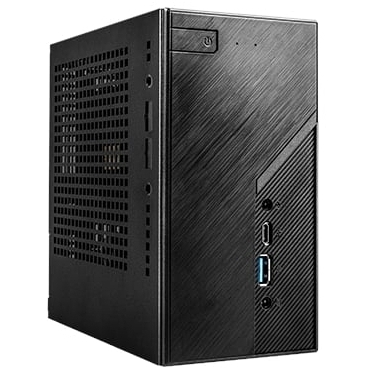

ASRock DESKMINI B760W Barebone - LGA1700 Socket
The AsRock DeskMini B760 Series supports the most recent 14th Generation Intel Core processors, delivering maximum computing performance in a smaller PC form factor. When compared to mobile processors, Intel's latest processors provide the best performance for multitasking computing. The DeskMini B760W also supports dual-channel DDR4-3200MHz high-speed memory with a capacity of up to 64GB, allowing you to complete tasks with ease and efficiency. The DeksMini B660 also supports Intel OptaneTM memory and storage technology, allowing it to set a new standard for high performance and responsiveness. All of your apps and programmes will load at breakneck speed, allowing you to work or play faster than ever before.

On the rear I/O, there is a USB 3.2 Gen2 Type-C with an alternate mode that provides a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate. The latest USB 3.2 Gen2x2 Type-C provides a blazing-fast data transfer interface with a reversible USB Type-C design that fits the connector either way, with a data transfer rate of up to 20 GB/s, which is twice as fast as the previous generation. The DeskMini B660 has a USB 3.2 Gen2 Type-A port on the front panel that supports a 10Gbps data transfer rate. Furthermore, the DeskMini B760W includes four USB Type-A ports on the rear I/O for all of your peripherals. For productivity and multitasking, up to four video outputs can be used at the same time. 1.4 DisplayPort allows you to enjoy Ultra HD content on an 8K monitor or TV.

Features:

• Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700 ), up to 65W
• Dual DDR4-3200MHz SO-DIMMs, up to 64GB
• Multi-Video Outputs: 1 x DisplayPort, HDMI & D-Sub
• USB 3.2 Gen2x2 Type-C port (20 Gb/s)
• USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
• USB 3.2 Gen2 Type-A port (10 Gb/s)
• Blazing M.2 (PCIe Gen5 x4 ) Slot
• Hyper M.2 (PCIe Gen4 x4 ) Slot
• 2.5" HDD/SSD with RAID 0/1
• M.2 Key-E for Wi-Fi

WHAT'S IN THE BOX:

• AsRock DeskMini B760W Barebone Desktop PC - Black x1

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	90BXG4E01-A20KA0W
CPU	Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Max. TDP 65W
Cooler	Supports Intel CPU Cooler (Max. Height ≦ 47mm)
Memory	Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset	Intel B760
Graphics	HDMI (4K@60Hz), DisplayPort 1.4, DisplayPort 1.4 (over USB Type-C Alt Mode), D-Sub, Supports up to 4 displays simultaneously
Audio	Realtek ALC269 Audio Codec
Storage	2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1), 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Supports Intel Optane Technology, Supports NVMe SSD as boot disks, Supports Intel Volume Management Device (VMD)
LAN	2.5 Gigabit LAN (Dragon RTL8125BG)
WLAN	1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
Front I/O	1 x MIC-In, 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x Headphone with MIC Jack
Rear I/O	1 x DC-In Jack (Compatible with the 19V power adapter), 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode), 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED
Connectors	1 x USB 2.0 Header, 1 x Front Panel Header, 2 x 4-Pin fan connectors (CPU, SYS), 1 x Internal Speaker Header (4-Pin), 1 x Audio Header (4-Pin)
Accessory	2 x SATA Data with Power Cable, 1 x 120W/19V adapter, 1 x Screws Pack, 1 x Intel AC-3168 Wi-Fi Kit
OS	Microsoft Windows 10 64-bit / 11 64-bit
Product Dimensions	15.5 x 15.5 x 8 cm
