A620AM PRO RS

Overview

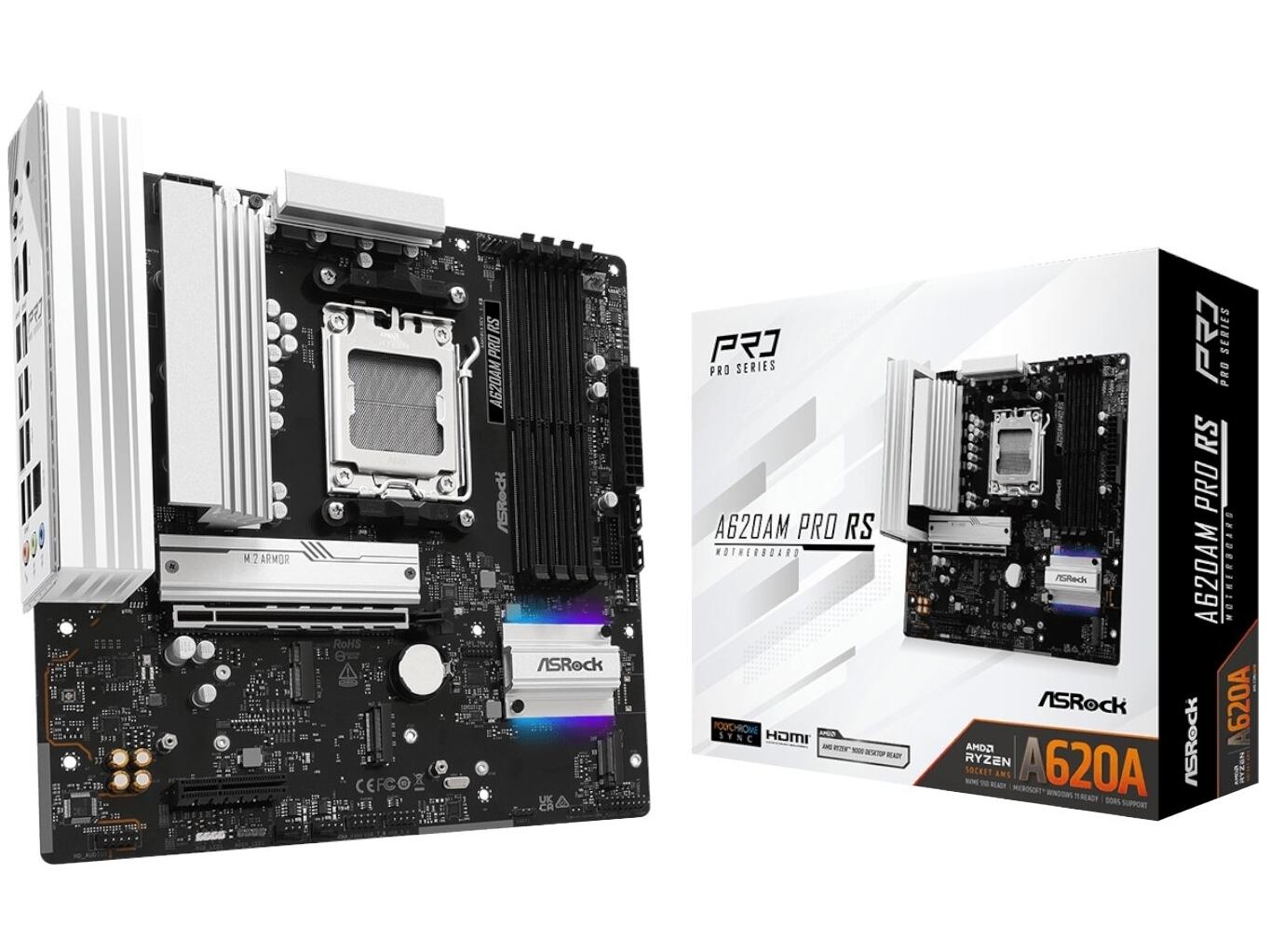

ASRock A620AM PRO RS AM5 Micro ATX Motherboard - AMD Ryzen 7000 / 8000 / 9000 Series Support
The ASRock A620AM PRO RS is built for users who demand performance, stability, and modern connectivity in a compact Micro ATX form factor. Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, it provides a reliable platform for gaming, productivity, and multimedia use. With DDR5 support, PCIe 4.0 expansion, and high-speed network capabilities, it's an ideal choice for PC builders who value efficiency and future-ready technology.

Description

This ASRock A620AM PRO RS motherboard offers the perfect balance between power and practicality. Supporting the latest AMD Ryzen AM5 processors, it delivers impressive speed and responsiveness for gaming and multitasking. DDR5 memory support ensures seamless performance, while the 2.5G LAN and multiple USB 3.2 ports enable fast data transfers. With HDMI 2.1 and DisplayPort 1.4 for vivid visuals, it's a versatile foundation for both work and play.

Features

Built for AMD Ryzen AM5 Processors
Engineered to support AMD Ryzen 7000, 8000, and 9000 Series CPUs, the ASRock A620AM PRO RS provides a strong foundation for modern performance computing. The AMD A620A chipset ensures system stability, efficient power delivery, and compatibility with next-gen applications and games.

High-Speed DDR5 Memory Support
The motherboard supports up to 256GB of DDR5 memory across four DIMM slots, enabling ultra-fast data processing and smoother multitasking. Whether you're gaming, editing videos, or managing demanding workloads, the boost in memory speed enhances overall responsiveness and productivity.

Comprehensive Connectivity Options
With multiple USB 3.2 Gen1 Type-A and Type-C ports, along with USB 2.0 support, this motherboard ensures effortless peripheral connection. Fast data transfer speeds and reliable connections make it ideal for external drives, accessories, and other USB-enabled devices.

Graphics and Display Output
Equipped with both HDMI 2.1 and DisplayPort 1.4, the board delivers 4K 120Hz visuals with HDR and HDCP 2.3 support. Integrated AMD RDNA graphics compatibility (depending on CPU) allows for crisp, high-definition output suitable for gaming and creative work.

Powerful Expansion and Storage Options
The ASRock A620AM PRO RS includes:

• 1 x PCIe 4.0 x16 slot for GPUs
• 1 x PCIe 3.0 x16 (x2 mode) slot
• 2 x Hyper M.2 sockets (PCIe Gen4x4)
• 1 x Ultra M.2 socket (PCIe Gen3x4)
• 2 x SATA3 6.0 Gb/s connectors

This layout provides room for NVMe SSDs and expansion cards, enabling flexible storage configurations and fast data access.

Immersive Audio and Networking
The Realtek ALC897 7.1-channel HD Audio Codec with Nahimic Audio support ensures crystal-clear sound. A 2.5 Gigabit LAN powered by Dragon RTL8125BG offers stable and responsive online connectivity, ideal for gaming and streaming.

Compact and Efficient Design
The Micro ATX form factor (24.4 cm x 24.4 cm) allows builders to create powerful yet space-saving systems. Despite its compact size, it supports multiple fan headers and customizable RGB lighting, making it suitable for both professional and gaming setups.

Durable Build and Software Enhancements
ASRock integrates advanced engineering with a 6+2+1 phase power design and Dr.MOS technology for reliability. The board supports Windows 10 and 11 (64-bit) and includes ASRock utilities such as:

• A-Tuning for performance management
• Dragon 2.5G LAN software for network optimization
• Polychrome Sync for lighting customization

Included in the Box

• ASRock A620AM PRO RS AM5 Micro ATX Motherboard
• 2 x SATA Cables
• 4 x M.2 Screws
• 1 x M.2 Standoff

Why Choose ASRock
ASRock continues to lead in motherboard innovation, offering cutting-edge solutions for PC builders and enthusiasts worldwide. Known for its durability, quality, and performance, ASRock ensures that every system delivers exceptional value and reliability. The A620AM PRO RS is the perfect choice for users in South Africa looking for a dependable and feature-rich AM5 motherboard.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	A620AM PRO RS
Unique Feature	Superb Productivity
	- Dual Channel DDR5
	Rock-Solid Durability
	- 6+2+1 Power Phase, Dr.MOS
	- Pre-Installed I/O Shield
	Ultrafast Connectivity
	- 2.5G LAN
	EZ Update
	- BIOS Flashback Button
	- ASRock Auto Driver Installer
	EZ Troubleshooter
	- ASRock Post Status Checker
CPU	- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset	- AMD A620A
Memory	- Dual Channel DDR5 Memory Technology
	- 4 x DDR5 DIMM Slots
	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
	- Max. capacity of system memory: 256GB
	- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU)
	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- Dragon RTL8125BG
	- Supports Dragon 2.5G LAN Software
	- Smart Auto Adjust Bandwidth Control
	- Visual User Friendly UI
	- Visual Network Usage Statistics
	- Optimized Default Setting for Game, Browser, and Streaming Modes
	- User Customized Priority Control
Slots	CPU:
	- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
	Chipset:
	- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
	* Supports NVMe SSD as boot disks
Storage	CPU:
	- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
	Chipset:
	- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode
	- 2 x SATA3 6.0 Gb/s Connectors
	* Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
	* Requires additional M.2 NVMe expansion cards to support RAID 10
USB	CPU:
	- 1 x USB 3.2 Gen1 Type-C (Rear)
	- 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
	- 1 x USB 3.2 Gen1 Type-C (Front)
	- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
	- 8 x USB 2.0 (4 Rear, 4 Front)
	* All USB ports support ESD Protection
Connector	- 1 x SPI TPM Header
	- 1 x Power LED and Speaker Header
	- 1 x RGB LED Header
	- 3 x Addressable LED Headers
	- 1 x CPU Fan Connector (4-pin)
	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	- 1 x Front Panel Type C USB 3.2 Gen1 Header
	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	**** CPU_FAN2/WP supports the fan power up to 2A (24W).
	***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
	CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	- 2 x Antenna Mounting Points
	- 1 x HDMI Port
	- 1 x DisplayPort 1.4
	- 3 x USB 3.2 Gen1 Type-A Ports
	- 1 x USB 3.2 Gen1 Type-C Port
	- 4 x USB 2.0 Ports
	- 1 x RJ-45 LAN Port
	- 1 x BIOS Flashback Button
	- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software
	- ASRock Motherboard Utility (A-Tuning)
	- ASRock Dragon 2.5G LAN Software
	- ASRock Polychrome SYNC
	UEFI
	- ASRock Full HD UEFI
	- ASRock Auto Driver Installer
	- ASRock Instant Flash
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	- 1 x User Manual
	- 2 x SATA Data Cables
	- 4 x Screws for M.2 Sockets
	- 1 x Standoff for M.2 Socket
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	- Microsoft Windows 10 64-bit / 11 64-bit
Certifications	- FCC, CE
	- ErP/EuP ready (ErP/EuP ready power supply is required)
