B760M-E DDR5 MSI Pro B760M-E DDR5 Intel 12th / 13th / 14th Gen Socket LGA 1700 mATX Motherboard

B760M-E DDR5

R 2,255.00

inc. VAT

In Stock

Add To Cart

Rate

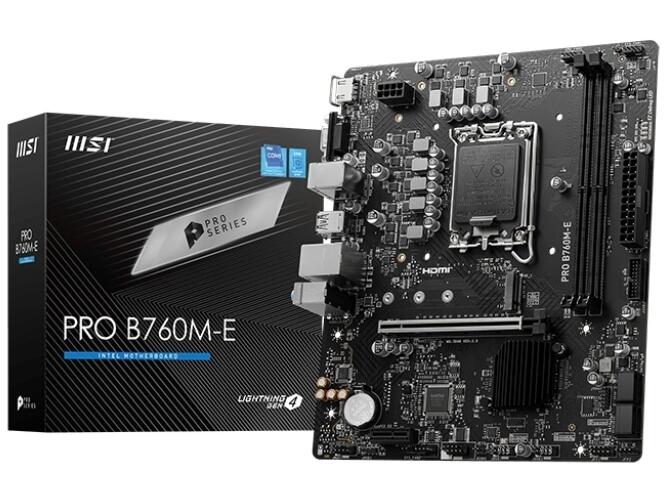

MSI Pro B760M-E DDR5 Intel 12th / 13th / 14th Gen Socket LGA 1700 mATX Motherboard

Images are for illustrative purposes and actual product may differ.

B760M-E DDR5

Motherboards: Intel LGA1700 12th/13th/14th gen

MSI

B760M-E DDR5 information and overview

MSI Pro B760M-E DDR5 Intel 12th / 13th / 14th Gen Socket LGA 1700 mATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Memory slots, 1x VGA, 1x HDMI, 1x PCI-e x16 slot, 1x PCI-e x1 slot, PCI_E1 Gen PCI-e 4.0 supports up to x16, PCI_E2 Gen PCI-e 3.0 supports up to x1, 7.1-channel High Definition Audio, 1x M.2 slot supports up to PCI-e 4.0 x4, 4x SATA 6G Ports, Gigabit LAN, Keyboard / Mouse, USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0 Ports, Audio connectors

Specifications & more information about B760M-E DDR5, Motherboards: Intel LGA1700 12th/13th/14th gen manufactured by MSI

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

PRO B760M-E

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Features:

AUTO DETECT YOUR FAN
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more

*Please ensure to connect the internet, or the Driver Utility Installer won't launch automatically.
*MSI Driver Utility Installer will be ready in Windows 11 build 22H2.

Double Esd Protection
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	B760M-E DDR5
Chipset	INTEL B760
CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU	LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB
	Memory Support DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC)
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6400+ MHz
	1DPC 2R Max speed up to 5600+ MHz
	Supports Intel XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI
	Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
	1x VGA
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek ALC897 Codec
Audio	7.1-Channel High Definition Audio
Storage	1x M.2
	M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
LAN	Realtek RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI
	VGA
	Keyboard / Mouse
	USB 3.2 Gen 1 5Gbps (Type-A)
	LAN port
	Audio Connectors
	USB 2.0
	USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info	mATX
PCB Info	200mmx236.16mm
