B860MGAMINGPLUSWIFI6E

Overview

The MSI B860M GAMING PLUS WIFI6E is a Micro-ATX motherboard built around the LGA1851 socket and Intel B860 chipset, designed for gamers and builders who want to pair the latest Intel Core Ultra Series 2 processors with modern connectivity and storage. Whether you are assembling a new rig from scratch or upgrading an existing system, this board gives you the platform to do it without compromise, backed by MSI's engineering pedigree.

Description

This motherboard delivers high-performance computing for next-gen gaming and content creation. It features LGA1851 support for Intel Core Ultra Series 2 processors, DDR5 memory capacity up to 256GB, and PCIe 5.0 storage with triple M.2 slots. Connectivity is enhanced by Wi-Fi 6E and 5G LAN, ensuring low latency and fast speeds. The board includes a robust power delivery system and Frozr cooling technology for stability during intense sessions.

Features

A Solid Foundation for Your Next-Gen Build
The B860M GAMING PLUS WIFI6E is designed to handle the demands of modern gaming and heavy workloads. It serves as the perfect platform for users looking to build a reliable system that can scale with future hardware upgrades.

Power That Doesn't Quit
Tired of motherboards that throttle the moment your CPU is pushed to its limit The B860M GAMING PLUS WIFI6E answers with a 12+1+1+1 Duet Rail Power System built on a 6-layer server-grade PCB, combined with Core Boost technology to keep power delivery stable during sustained gaming and heavy workloads. Extended heatsinks and thermal pads rated at 7W/mK work alongside this power design to keep temperatures in check, so your system stays reliable during marathon sessions rather than backing off when you need it most.

Connectivity Built for Speed
Onboard Wi-Fi 6E and 5G LAN give you fast, low-latency networking whether you are gaming online or transferring large files, while the mix of rear USB ports - including USB 5Gbps Type-A, USB 5Gbps Type-C, and USB 10Gbps Type-A - means your peripherals, drives, and accessories all get the bandwidth they need. It is connectivity designed to keep pace with a modern gaming setup, without the compromises of an entry-level board.

Storage and Expansion Without the Bottleneck
With a PCIe 5.0 slot for your graphics card and three M.2 slots - one running at Lightning Gen 5 x4 - the B860M GAMING PLUS WIFI6E is ready for the fastest SSDs and GPUs on the market. M.2 Shield Frozr protects your storage from thermal throttling, and MSI's EZ DIY touches, including the EZ PCIe Clip II and pre-installed I/O shield, make the whole build process noticeably less fiddly.

Key Features

• Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket
• 4x DDR5 memory slots supporting up to 256GB, with speeds up to 8800+ MT/s (OC)
• PCIe 5.0 x16 slot plus Lightning Gen 5 x4 M.2 for next-gen GPU and SSD bandwidth
• 3x M.2 slots with M.2 Shield Frozr thermal protection for high-speed storage
• Onboard Wi-Fi 6E and 5G LAN for fast, stable, low-latency networking
• 12+1+1+1 Duet Rail Power System with Core Boost for sustained performance under load
• EZ DIY design with EZ PCIe Clip II, pre-installed I/O shield, and EZ Debug LED for easier builds
• Studio-grade 7.1-channel HD audio via Realtek ALC897 codec

Technical Specifications

The product comes with part number B860MGAMINGPLUSWIFI6E. The motherboard utilizes the INTEL B860 chipset and features a Micro-ATX form factor. It supports DDR5 memory with four slots capable of holding up to 256 GB total.

• Socket: LGA1851
• Memory Type: DDR5
• M.2 Slots: 3
• PCIe Version: PCIe 5.0
• Onboard Wi-Fi: Wi-Fi 6E
• LAN Speed: 5G LAN
• Colour: Black/Silver

The rear I/O panel includes a variety of ports to ensure compatibility with modern peripherals, including USB 2.0, USB 5Gbps Type A and C, and USB 10Gbps Type A. The board also supports HDMI 2.1 and DisplayPort 1.4 for visual output when using a processor with integrated graphics.

What's in the Box

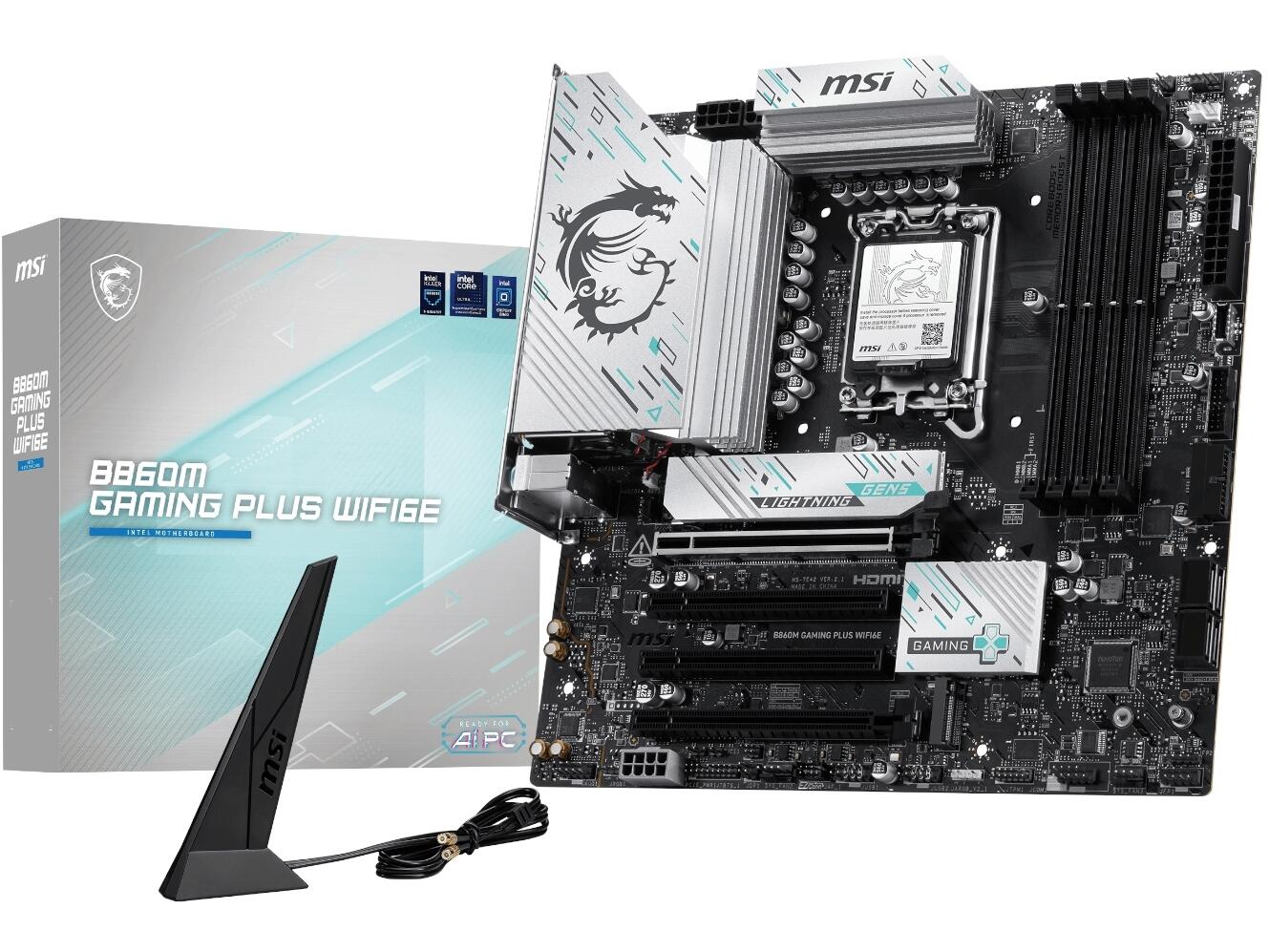

• 1 x MSI B860M GAMING PLUS WIFI6E LGA1851 M-ATX Gaming Motherboard
• 1 x EZ Wi-Fi Antenna
• 1x SATA Cable
• 3 x M.2 Screw and Standoff Sets
• 1 x 1 to 2 EZ Conn-cable (V1)
• 1 x Quick Installation Guide

Why MSI
MSI has built its reputation on giving gamers and builders the performance and reliability they demand, and the B860M GAMING PLUS WIFI6E carries that commitment into the Intel B860 platform. With durable engineering, thoughtful EZ DIY touches, it is a motherboard PC builders can trust as the foundation of a serious gaming rig.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	B860MGAMINGPLUSWIFI6E
Chipset	INTEL B860
CPU	Supports Intel Core Ultra Processors (Series 2)
	LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 8800+ MT/s
	1DPC 2R Max speed up to 7200+ MT/s
	2DPC 1R Max speed up to 6400+ MT/s
	2DPC 2R Max speed up to 5600+ MT/s
	Supports Intel POR Speed and JEDEC Speed
	Supports Memory Overclocking and Intel XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
	The DIMM slots on this motherboard only have single-sided latches.
Onboard Graphics	1x HDMI
	Support HDMI 2.1, maximum resolution of 4K 60Hz
	1x DisplayPort
	Support DisplayPort 1.4, maximum resolution of 4K 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
Storage	3x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
	4x SATA 6G
	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	1x USB 5Gbps Type C (Rear)
	4x USB 5Gbps Type A (Front)
	1x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Front)
LAN	Intel Killer E5000 5Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3)
	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	3x System Fan
	1x EZ Conn-header (JAF_1)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E Solution
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth 5.3**, FIPS, FISMA
	* Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Display Port
	USB 2.0
	USB 5Gbps (Type-A)
	5G LAN
	Wi-Fi / Bluetooth
	HDMI
	Clear CMOS Button
	USB 5Gbps (Type-C)
	USB 10Gbps (Type-A)
	Audio Connectors
OPERATING SYSTEM	Support for Windows 11 64-bit
BOX CONTENT
PCB Info	mATX
	243.84mmx243.84mm

FAQ

What processors are compatible with this motherboard?
This board features an LGA1851 socket and supports Intel Core Ultra Processors (Series 2), designed to power through next-gen workloads without throttling.

Does the MSI B860M GAMING PLUS WIFI6E support DDR5 memory overclocking?
Yes, it includes four DIMM slots that support up to 256GB of DDR5 memory with speeds reaching 8800+ MT/s via OC, and it supports Intel XMP 3.0 for easy performance tuning.

What connectivity options are available for networking?
The motherboard comes equipped with onboard Wi-Fi 6E (including Bluetooth 5.3) and an Intel Killer E5000 5G LAN controller to ensure low-latency, high-speed internet for gaming and file transfers.

Can I install multiple M.2 SSDs on this board?
Absolutely; there are three M.2 slots available, with the first slot supporting PCIe 5.0 x4 speeds, while the other two support PCIe 4.0, all protected by M.2 Shield Frozr thermal pads.

Is the installation process difficult for a first-time builder?
No, MSI includes EZ DIY features such as an EZ PCIe Clip II, pre-installed I/O shield, and EZ Debug LED to simplify the build process.
