CC-9011330-WW

Overview

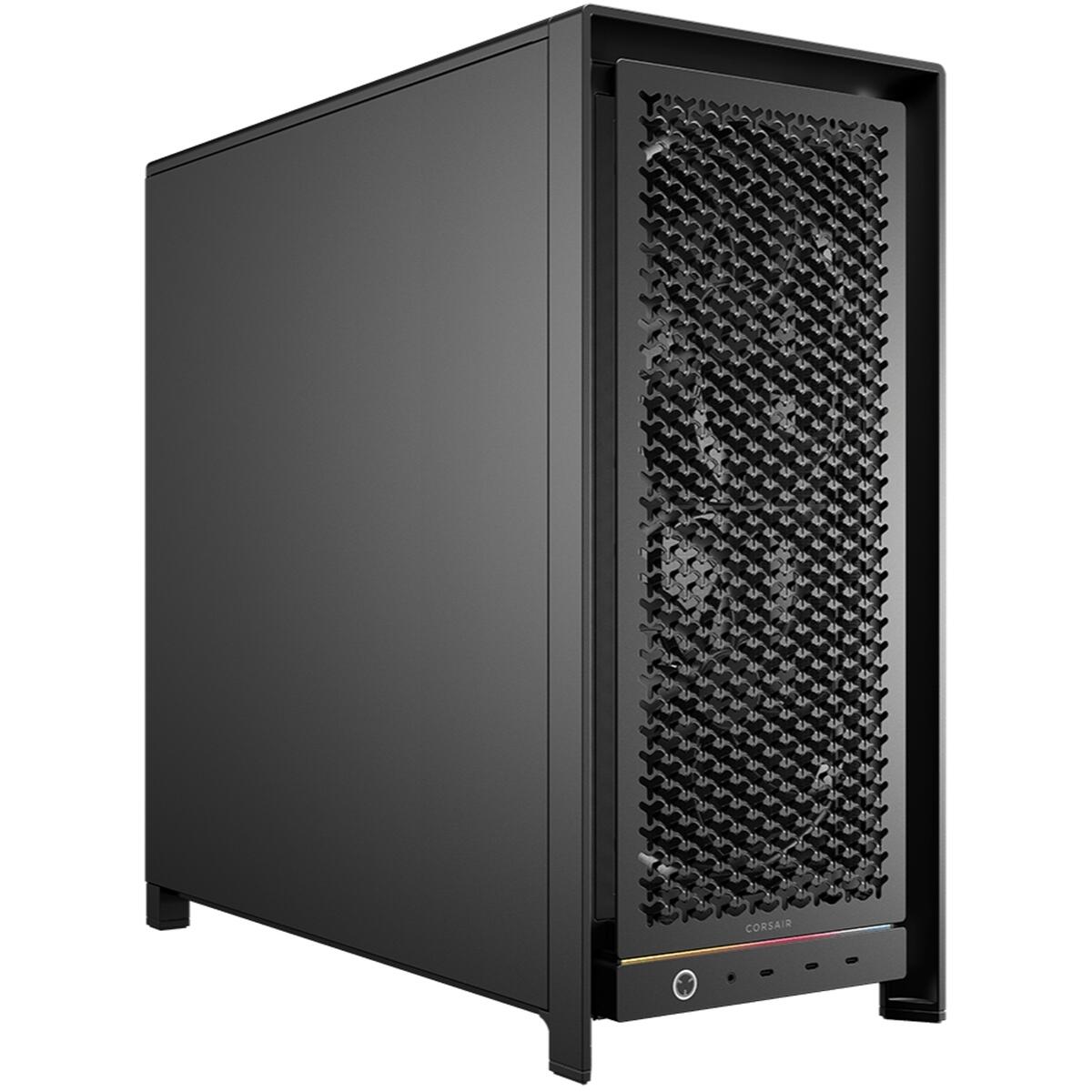

Corsair FRAME 5000D WORKSTATION Modular Mid-Tower PC Case
The Corsair FRAME 5000D WORKSTATION is a mid-tower chassis engineered for builders who refuse to compromise. Whether you are assembling a content-creation powerhouse, a professional rendering rig, or a high-end workstation, this case gives you the room, the structure, and the flexibility to realise your vision. With support for motherboards from Mini-ITX all the way up to E-ATX, SSI-CEB, and SSI-EEB - including reverse-connector designs - the FRAME 5000D is ready for whatever platform your build demands.

Description

Designed for serious workstation builds, this modular mid-tower case combines expansive cooling support with robust hardware accommodation. It features a tempered glass showcase panel to display interior components while offering extensive radiator mounting options up to 420mm on multiple panels. The chassis includes a dedicated anti-sag stabilisation arm and comprehensive accessory kit to ensure professional cable management and stability for heavy graphics cards.

Features

A Chassis Built for Serious Workstation Builds
The FRAME 5000D opens up an extraordinary range of liquid and air cooling configurations. Radiators up to 420mm are supported at the front, top, and side simultaneously, while a 175mm CPU cooler height clearance accommodates the tallest tower coolers on the market. Fan positions across the front, top, rear, and bottom - accepting 120mm, 140mm, and 200mm fans - mean there is no shortage of airflow paths for even the most thermally demanding workstation hardware. The included InfiniRail fan mount system makes repositioning fans and radiators straightforward and tool-friendly.

With a maximum GPU length of 450mm (425mm with fans installed), the FRAME 5000D accommodates the largest graphics cards available. A dedicated GPU anti-sag stabilisation arm and rubber spacer are included in the box to keep heavy dual-slot and triple-slot cards securely positioned over time. Eight horizontal and three vertical PCI expansion slots give you the configuration freedom for multi-card and high-expansion workstation setups, while vertical mount support - with a riser card available separately - lets you showcase your GPU through the tempered glass side panel.

The FRAME 5000D keeps cable management organised with 42mm of rear cable-routing space, RapidRoute cable management, and 12 zip ties included in the accessory kit. Dust filters on the front, side, and bottom protect your components in long-term operation. The front I/O panel delivers four USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2x2 Type-C port, and a combined mic/headphone jack for day-to-day connectivity. The 3D-Y Airflow Steel front panel and steel side panels - with sound dampening material - round out a chassis that is as practical as it is purposeful.

Key Specifications

• Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, and SSI-EEB including reverse-connector designs
• Radiator Support up to 420mm at the front, top, and side with additional rear support options
• Maximum GPU length of 450mm (425mm with fans installed) supported by anti-sag stabilisation arm
• 175mm maximum CPU cooler height clearance for compatibility with large tower coolers
• 8 horizontal and 3 vertical PCI expansion slots for multi-GPU and high-expansion configurations
• Front I/O: 4x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C, 1x combo mic/headphone jack
• 42mm rear cable-routing space with RapidRoute cable management system and included dust filters
• Pre-installed 12x InfiniRail fan mounts for flexible, tool-friendly fan and radiator positioning

Corsair has built its reputation on performance-focused PC components trusted by builders, professionals, and enthusiasts worldwide. From their acclaimed cooling solutions to their rigorously engineered chassis, Corsair delivers the quality and thoughtful design that South African PC builders demand - making the FRAME 5000D a natural centrepiece for any serious workstation build.

What's in the Box

• 1 x Corsair FRAME 5000D WORKSTATION Mid-Tower PC Case - Black
• 1 x Side Fan Mounting Bracket
• 1 x Reverse Connector Magnetic Strip
• 12 x InfiniRail Fan Mounts (pre-installed)
• 1 x Front I/O Adapter
• 12 x Zip Ties
• 16 x QuikTurn Fan Screws
• 8 x Long Fan Screws
• 18 x Motherboard / HDD Screws
• 16 x SSD Screws
• 1 x Spare Motherboard Standoff
• 2 x Vertical Mount Standoffs
• 12 x InfiniRail Fan Mount Lock Screws
• 1 x Anti-Sag Arm Rubber Spacer
• 1 x GPU Anti-Sag Stabilisation Arm Mini Mount
• 1 x CORSAIR Side Cable Shroud Sticker

The product part number for this item is CC-9011330-WW.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CC-9011330-WW
Brand	Corsair
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX
Side Panel	Tempered Glass
Included Fans	4
Max GPU Length	450 mm
Max CPU Cooler Height	175 mm
Radiator Support
Front	240mm, 280mm, 360mm, 420mm
Top	240mm, 280mm, 360mm, 420mm
Rear	120mm, 140mm
Side	240mm, 280mm, 360mm, 420mm
PSU Shroud	None
Front I/O	4x USB 3.2 Gen 1 Type-A
	1x USB 3.2 Gen 2
	x2 Type-C
	1x Power Button
	1x Combo Mic / Headphone
RGB Lighting	False
PSU Included	False

FAQ

Which motherboard sizes does the Corsair FRAME 5000D WORKSTATION support?
The case supports Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm), SSI-CEB, and SSI-EEB motherboards, including reverse-connector designs.

What is the maximum GPU length I can install in this case?
You can accommodate graphics cards up to 450mm long, though clearance reduces to 425mm if fans are installed on the radiator. The box includes a dedicated anti-sag stabilisation arm and rubber spacer to support heavy dual or triple-slot cards.

Can I install large liquid cooling radiators in this chassis?
Yes, the FRAME 5000D supports radiators up to 420mm at the front, top, and side simultaneously. It also accepts 120mm or 140mm radiators at the rear.

Does this case come with fans included?
The package includes four pre-installed InfiniRail fan mounts that allow for tool-friendly repositioning of fans or radiators, along with a comprehensive accessory kit containing zip ties and screws.

How is cable management handled in the FRAME 5000D WORKSTATION?
The design features 42mm of rear cable-routing space with a RapidRoute system to keep wiring organized. The case also includes dust filters on the front, side, and bottom to protect components during long-term operation.
