CNV-CSC-5500

About this product

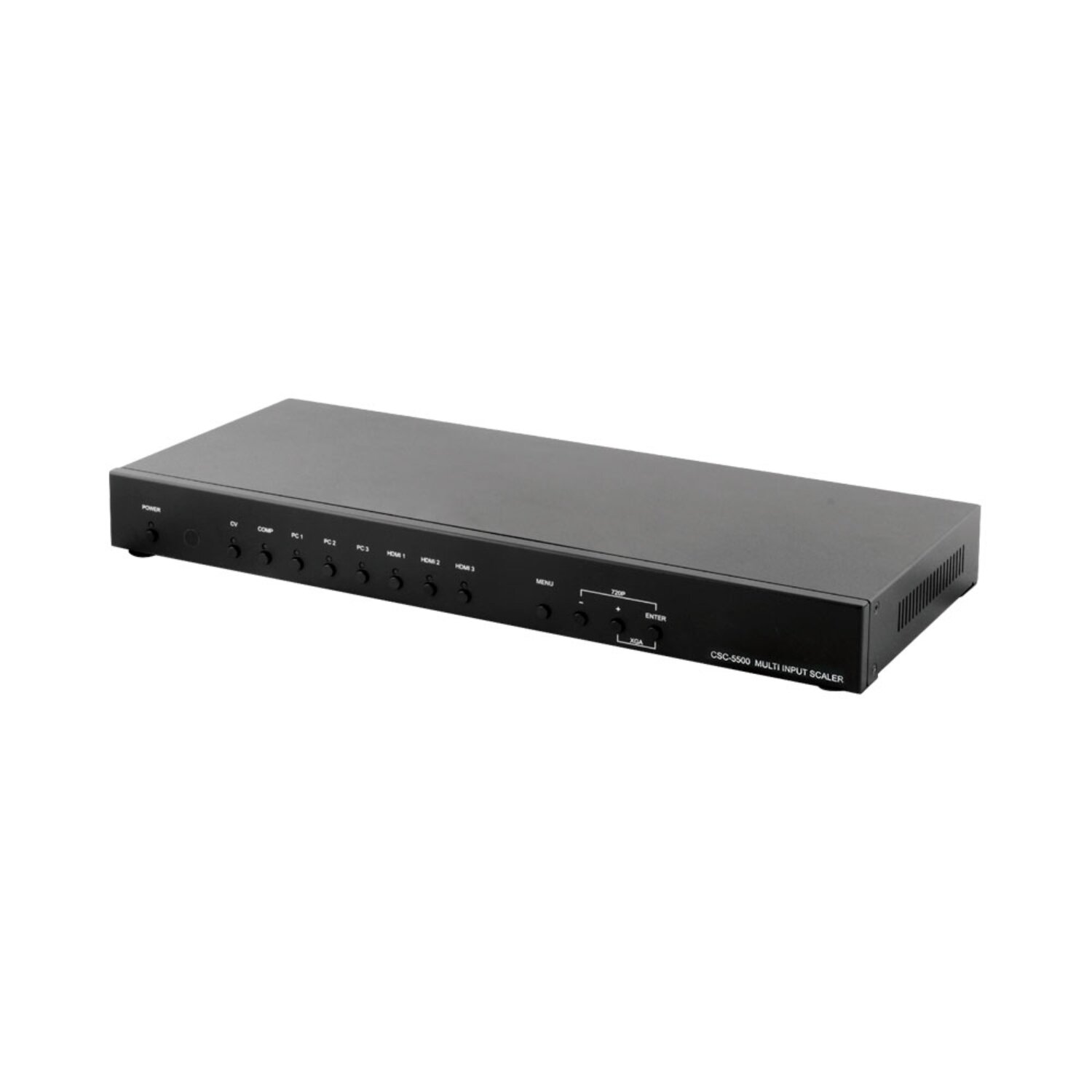

The CYP CSC-5500 is a professional multi-format video scaler and switcher designed to connect HDMI, VGA, Component Video and Composite Video sources to HDMI or VGA displays. It supports video scaling up to 1920 x 1080 at 60Hz over HDMI and up to 1920 x 1200 at 60Hz over VGA, with EDID, HDCP, frame rate conversion, 3D de-interlacing and audio conversion. Buy now from our website for a versatile video switching and scaling solution for presentation, AV and display applications.

Overview Summary

Description

The CYP CSC-5500 is a multi-format AV scaler and video switcher designed for environments where multiple video sources need to be connected to modern HDMI or VGA displays. The unit combines video switching, signal scaling and audio conversion in a single device, reducing the need for separate format converters for different source types.

Multiple HDMI and VGA inputs allow computers and other compatible sources to be connected alongside Component Video and Composite Video equipment. The selected source can be scaled for HDMI or VGA display output, making the CSC-5500 suitable for presentation systems, meeting rooms, classrooms and professional AV installations that need to accommodate both current and legacy equipment.

Video processing features include 3D de-interlacing, noise reduction, 3D comb filtering and frame rate conversion. HDMI output supports resolutions up to 1920 x 1080 at 60Hz, while VGA output supports resolutions up to 1920 x 1200 at 60Hz with reduced blanking. The device also supports EDID and HDCP for display and source compatibility.

Audio support is provided through digital and analogue inputs and outputs. Built-in analogue-to-digital and digital-to-analogue conversion allows audio from different source types to be handled as part of the AV signal path. Control options include the front panel, IR remote, RS-232 and IP control, providing flexibility for both local and installed AV systems.

Features

The CSC-5500 combines multi-format video switching, scaling and audio conversion for professional AV applications.

• Supports switching and scaling of multiple AV inputs to HDMI or PC/HD outputs
• Supports 3 x HDMI inputs
• Supports 3 x VGA inputs
• Supports Component Video input
• Supports Composite Video input
• Provides 2 x HDMI outputs
• Provides 1 x VGA output
• Supports HDMI output up to 1920 x 1080 at 60Hz
• Supports VGA output up to 1920 x 1200 at 60Hz with reduced blanking
• Supports EDID
• Supports HDCP 1.4
• Supports 3D de-interlacing
• Supports noise reduction
• Supports 3D comb filtering
• Supports frame rate conversion
• Supports output timing hotkey switching
• Supports digital-to-analogue audio conversion
• Supports analogue-to-digital audio conversion
• Supports digital and analogue stereo audio
• Supports RS-232 control
• Supports IP control including Telnet and WebGUI
• Supports IR control
• Includes an on-screen display for configuration and control
• Metal chassis construction

Whats in the Box

• 1 x CYP CSC-5500 Multi-format HDMI/VGA Scaler and Video Switcher

Specifications

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	CNV-CSC-5500
Inputs	3x HDMI [3x Uncompressed AV and Data]
	3x 15-pin D-sub [3x RGBHV]
	6x 3.5mm Stereo Mini-jack [6x Stereo(L/R)]
	3x RCA [1x YPbPr Component]
	1x RCA [1x Composite Video]
	4x RCA [2x Stereo (L/R)]
	1x 9-pin D-sub [1x RS-232 Data]
	1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
	1x RJ45 [1x IP Control]
	1x USB Type A [1x SERVICE Propriety Data]
Outputs	2x HDMI [2x Uncompressed AV and Data]
	1x 15-pin D-sub [1x RGBHV / YPbPr Component]
	1x RCA [1x COAX 2 Channel LPCM]
	1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
PSU	5V/3A
Dimensions	432mm [W] x 183mm [D] x 47mm [H]
Net Weight	2140g

FAQ

What is the CYP CSC-5500?

The CYP CSC-5500 is a multi-format video scaler and switcher that accepts HDMI, VGA, Component Video and Composite Video sources and scales them for HDMI or VGA displays.

What video inputs does the CSC-5500 support?

It supports 3 x HDMI, 3 x VGA, 1 x Component Video and 1 x Composite Video inputs.

What video outputs are available?

The CSC-5500 provides 2 x HDMI outputs and 1 x VGA output.

What is the maximum HDMI output resolution?

The maximum HDMI output resolution is 1920 x 1080 at 60Hz.

What is the maximum VGA output resolution?

The maximum VGA output resolution is 1920 x 1200 at 60Hz with reduced blanking.

Does the CSC-5500 support HDCP?

Yes. The CSC-5500 supports HDCP 1.4 and HDMI 1.3 compliance.

Does the CSC-5500 support audio conversion?

Yes. It supports analogue-to-digital and digital-to-analogue audio conversion, with digital and analogue stereo audio support.

How can the CSC-5500 be controlled?

The unit can be controlled through the front panel, IR, RS-232 and IP control using Telnet or WebGUI.

What type of applications is the CSC-5500 suitable for?

It is suitable for professional AV installations, presentation systems, classrooms, conference rooms and environments where HDMI, VGA and legacy video sources need to be connected to modern displays.

Does the CSC-5500 support video processing?

Yes. It supports 3D de-interlacing, noise reduction, 3D comb filtering and frame rate conversion.
