DS-2CE16D0T-LPXTS(3.6mm)

Overview

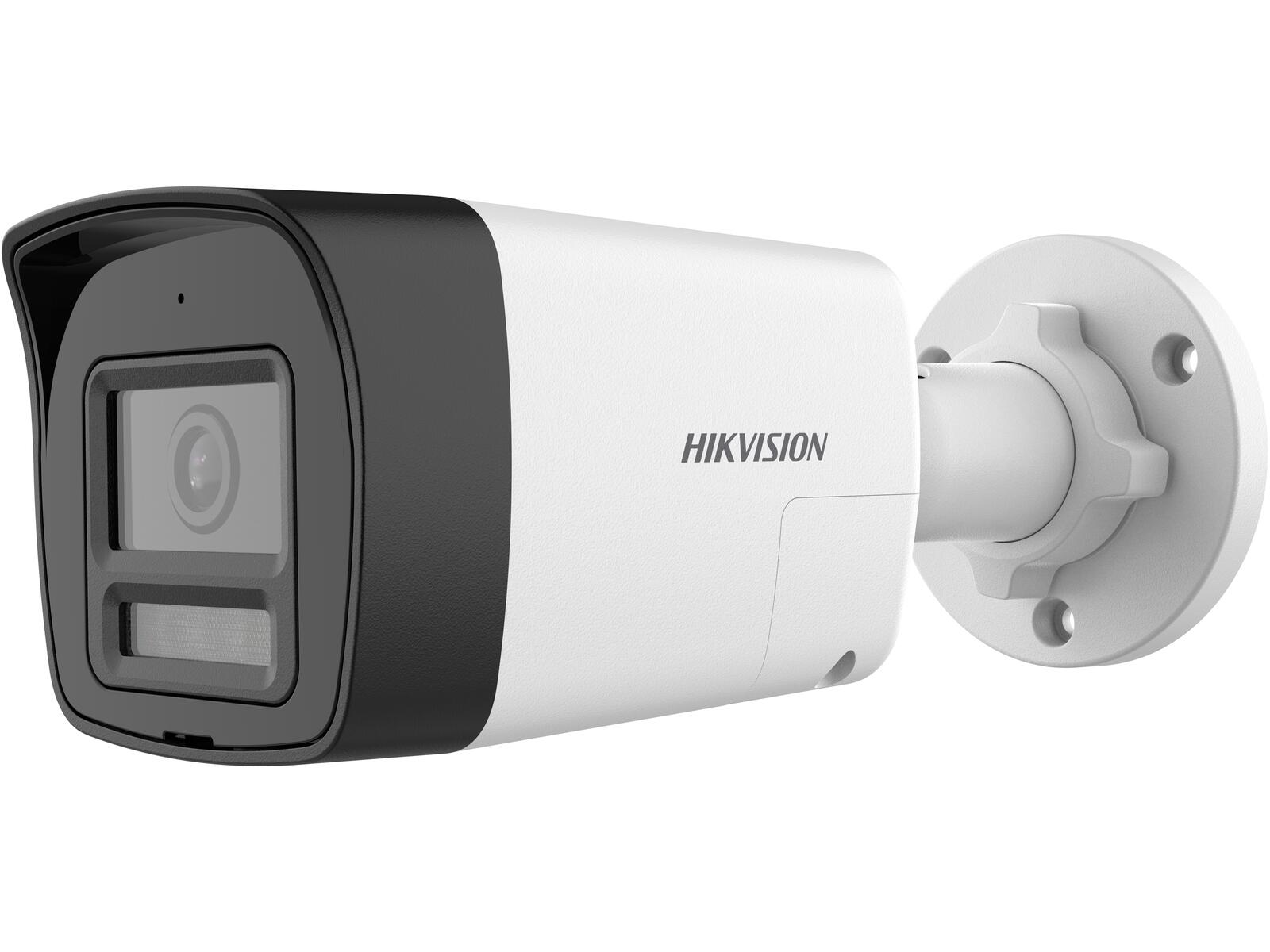

2MP Mini Bullet Camera with Two-Way Audio and Active Deterrence
The Hikvision DS-2CE16D0T-LPXTS(3.6mm) is a compact analogue mini bullet camera designed for reliable day and night surveillance. It delivers clear 1080p video, enhanced by intelligent lighting and audio capabilities that extend beyond passive monitoring. With built-in two-way communication and an active siren with flashing lights, this model supports both observation and real-time intervention. Its durable IP67-rated housing ensures consistent performance in outdoor environments, while flexible mounting and adjustable angles simplify installation.

Description

This 2MP mini bullet camera combines full HD video with integrated audio and active deterrence tools to strengthen perimeter security. It captures detailed footage in varying light conditions using IR and white light illumination, while the built-in microphone and speaker enable direct communication. The flashing red and blue alarm light and siren provide a visible and audible warning to deter intrusions. Designed for straightforward analogue integration, it offers stable performance, efficient noise reduction, and adaptable image controls for clearer results in challenging scenes.

Features

Core Capabilities and Imaging Performance
This unit is built around a 2MP CMOS sensor, producing a maximum resolution of 1920 x 1080. Image clarity is maintained across lighting conditions through digital WDR, 3D DNR noise reduction, and multiple enhancement controls such as BLC and HLC. The camera adapts dynamically between day and night modes using an ICR filter, ensuring consistent output whether in daylight or complete darkness.

The 3.6mm fixed lens offers a balanced field of view suited to general monitoring areas, while precise angle adjustment allows installers to fine-tune positioning across pan, tilt, and rotation axes.

Integrated Audio and Active Alerts
Unlike standard analogue cameras, this model incorporates two-way audio over coaxial cable, eliminating the need for additional wiring. A built-in microphone captures sound within a 5 meter radius, while the 2W speaker enables real-time voice communication.

For proactive security, the system includes:

• flashing red and blue light alarm for visual deterrence
• audible siren activation to discourage unwanted activity
• echo cancellation and AI noise reduction for clearer audio transmission

Night Visibility and Smart Lighting
The camera uses a hybrid lighting system to maintain visibility in low light conditions. It automatically balances IR and white light depending on the scenario, improving identification accuracy.

Key illumination details:

• IR range up to 25 m for discreet night monitoring
• white light range up to 20 m for full-color night footage
• smart hybrid lighting adapts to environmental conditions

Technical Highlights and Key Details
Important specifications are summarized below for quick reference:

• resolution: 1920 x 1080 at 25/30 fps
• image sensor: 2 MP CMOS
• lens: 3.6 mm fixed lens with wide coverage
• minimum illumination: 0.01 Lux, 0 Lux with IR
• audio: built-in mic and 2 W speaker with up to 5 m range
• video output: 1 HD analogue output
• alarm system: flashing red and blue light with siren
• noise reduction: 3D DNR
• image controls: DWDR, BLC, HLC, global and HLS modes

Build Quality and Installation Environment
Engineered for outdoor deployment, the unit operates in extreme temperatures ranging from -40 C to 60 C. Its IP67-rated enclosure protects against dust and water ingress, making it suitable for exposed installations.

Additional physical and power details:

• housing: durable plastic construction
• dimensions: 179 mm x 66 mm x 69.1 mm
• weight: approximately 265 g
• power supply: 12 VDC with a maximum consumption of 6.5 W

Application Fit and Deployment Use
The DS-2CE16D0T-LPXTS(3.6mm) SKU is well suited to residential perimeters, small business premises, and entry point monitoring where both surveillance and deterrence are required. Its combination of audio interaction, visible alarms, and adaptable lighting makes it effective in reducing incidents while maintaining clear video records.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-2CE16D0T-LPXTS(3.6mm)
Camera
Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) x 1080 (V)
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1 / 50,000 s,NTSC: 1/15 s to 1 / 50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0degrees to 360degrees,Tilt: 0degrees to 90degrees,Rotate: 0degrees to 360degrees
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm, 3.6 mm fixed lens
Focal Length & FOV	2.8 mm, horizontal FOV: 101degrees, vertical FOV: 56degrees, diagonal FOV: 118degrees
	3.6 mm, horizontal FOV: 78degrees, vertical FOV: 42degrees, diagonal FOV: 92degrees
Lens Mount	M12
Microphone
Pickup Distance	In a radius of up to 5 m
Amount	1
Speaker
Rated Power	2 W
Speaker Range	In a radius of up to 5 m
Illuminator
Supplement Light Type	Smart,IR,White Light
Supplement Light Range	IR: Up to 25 m,White Light: Up to 20 m
Image Settings	Anti-banding
	Brightness
	Sharpness
	Smart IR
Frame Rate	TVI: 1080p @25 fps/30 fps
Day/Night Mode	Auto/Color
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR
	BLC
	HLC
	Global
	HLS
Noise Reduction	3D DNR
White Balance	Auto
	Manual
Audio
Audio Function	Echo Cancellation, AI Noise Reduction, Automatic Gain Control
Interface
Video Output	1 HD analog output
Alarm	Flashing Light Alarm (Red & Blue)
General
Power	12 VDC ± 25%, max.6.5 W,*You are recommended to use one power adapter to supply the power for one camera.
Material	Plastic
Dimension	179 mm x 66 mm x 69.1 mm (7.05" x 2.6" x 2.72")
	Approx. 265 g (0.58 lb.)
Operating Condition	-40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
