DS-3E0310HP-E

Overview

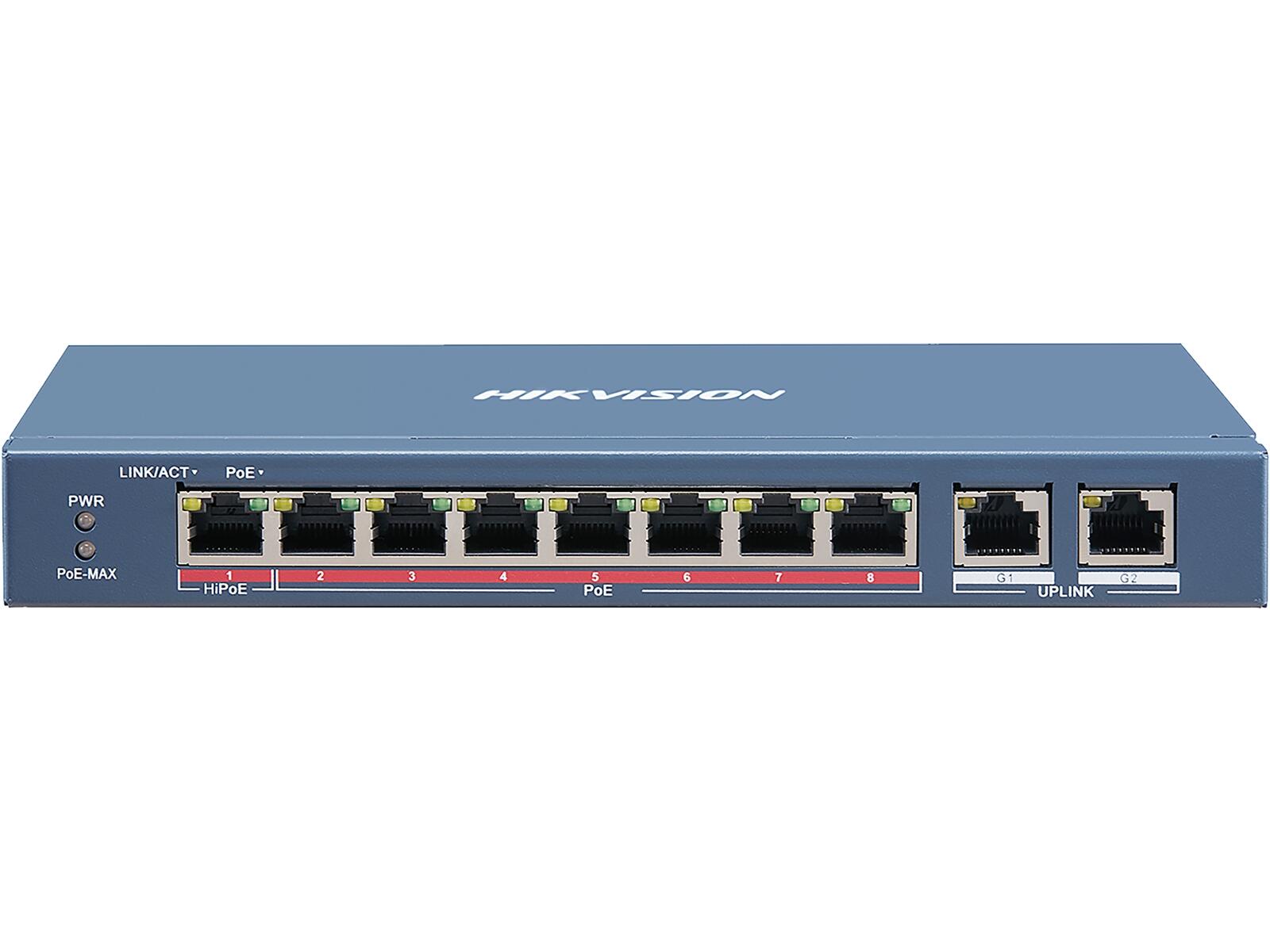

The Hikvision DS-3E0310HP-E is an 8 port Fast Ethernet unmanaged PoE switch designed to provide reliable network connectivity and power delivery for compatible IP cameras, access points, VoIP devices and other PoE network equipment. It combines eight 10/100 Mbps PoE ports with two Gigabit RJ45 uplink ports, making it suitable for small surveillance and network installations where dependable PoE performance is required.

Description

The Hikvision DS-3E0310HP-E is an 8 port unmanaged PoE switch with a total PoE power budget of 110 W. Its eight PoE ports support long-range PoE transmission of up to 300 m, helping installers connect compatible devices over extended cable distances. Port 1 supports up to 90 W of power, while ports 2 to 8 can provide up to 30 W per port.

The switch uses a fan-free design and metal construction, making it a practical choice for installations where quiet operation and durability are important. Intelligent PoE management helps optimise power delivery, while 6KV surge protection provides additional protection against electrical surges in demanding environments.

Features

Hikvision 8 Port PoE Switch for Network Installations
With eight 10/100 Mbps PoE ports and two Gigabit RJ45 ports, the DS-3E0310HP-E provides a straightforward way to connect and power multiple PoE devices from a central network switch. As an unmanaged switch, it is designed for simple plug-and-play deployment without requiring complex network configuration.

The long-range PoE capability can be particularly useful for CCTV installations where cameras need to be positioned further from the network cabinet. Compatible devices can receive both network connectivity and power through the Ethernet cable, reducing the need for separate power connections at each endpoint.

Long Range PoE Transmission
Ports 1 to 8 support PoE transmission distances of up to 300 m when used with compatible Hikvision equipment and suitable installation conditions. This extended transmission capability can help simplify larger surveillance deployments and installations where standard PoE distances are not sufficient.

Key PoE capabilities include:

• 8 x 10/100 Mbps PoE ports
• 2 x Gigabit RJ45 ports
• Up to 300 m PoE transmission on ports 1 to 8
• Port 1 supports up to 90 W maximum port power
• Ports 2 to 8 support up to 30 W maximum port power
• 110 W total PoE power budget
• IEEE 802.3bt standard Hi-PoE support

Reliable Power Delivery
The switch supports 4/8-core adaptive power supply technology, helping reduce power loss during PoE transmission. Intelligent PoE management further assists with efficient power delivery to connected devices.

For installations exposed to electrical disturbances, the built-in 6KV surge protection adds an extra layer of protection and helps improve network reliability in harsh operating environments.

Fan-Free Metal Design
The fan-free design allows the DS-3E0310HP-E to operate without the noise associated with cooling fans. Its metal construction provides a practical enclosure for use in network cabinets, communications areas and surveillance installations.

The switch is designed for straightforward deployment and is suitable for applications where multiple PoE endpoints need to be connected without the complexity of a managed network switch.

DS-3E0310HP-E Applications
The Hikvision DS-3E0310HP-E can be used in a range of PoE networking applications, including:

• IP surveillance cameras
• PoE access points
• VoIP phones
• Network-connected security equipment
• Small business network installations
• Extended-distance PoE deployments

Technical Details

• Model: DS-3E0310HP-E
• Switch type: 8 port Fast Ethernet unmanaged PoE switch
• PoE ports: 8 x 10/100 Mbps
• Uplink ports: 2 x Gigabit RJ45
• Maximum PoE power budget: 110 W
• Maximum power on Port 1: 90 W
• Maximum power on Ports 2 to 8: 30 W per port
• Maximum PoE transmission distance: Up to 300 m
• Construction: Metal
• Cooling: Fan-free design
• Surge protection: 6KV
• PoE standard: IEEE 802.3bt

For ordering and product identification, the part number / SKU for this Hikvision PoE switch is DS-3E0310HP-E.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-3E0310HP-E
General
Shell	Metal material, fan-free design
Net Weight	0.55 kg (1.21 lb)
Gross Weight	1.22 kg (2.69 lb)
Dimensions (W x H x D)	217.6 mm x 27.8 mm x 103.55 mm (8.6'' x 1.1'' x 4.1'')
Operating Temperature	0 degreesC to 40 degreesC (32 degreesF to 104 degreesF)
Storage Temperature	-40 degreesC to 85 degreesC (-40 degreesF to 185 degreesF)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	48 VDC, 2.5 A
Max. Power Consumption	120 W
Power Consumption in Idle	10 W
Installation Mode	Wall-Mounted,Desk-Mounted
Surge Protection	6 KV
Network Parameters
Ports	8 x 10/100 Mbps PoE port,2 x Gigabit RJ45 port
MAC Address Table	8 K
Switching Capacity	5.60 Gbps
Packet Forwarding Rate	4.17 Mpps
Internal Cache	4 Mbits
Dialing Function
Long Range	Ports 1 to 8: up to 300 m.
	Long range performance may vary depend on camera model or cable condition.
Software Function
VIP Port	Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
PoE Power Supply
PoE Standard	IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Max. Port Power	Port 1: 90 W
	Ports 2 to 8: 30 W
PoE Port	Hi-PoE: Port 1
	PoE: Ports 2 to 8
PoE Power Budget	110 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU)
