Overview:

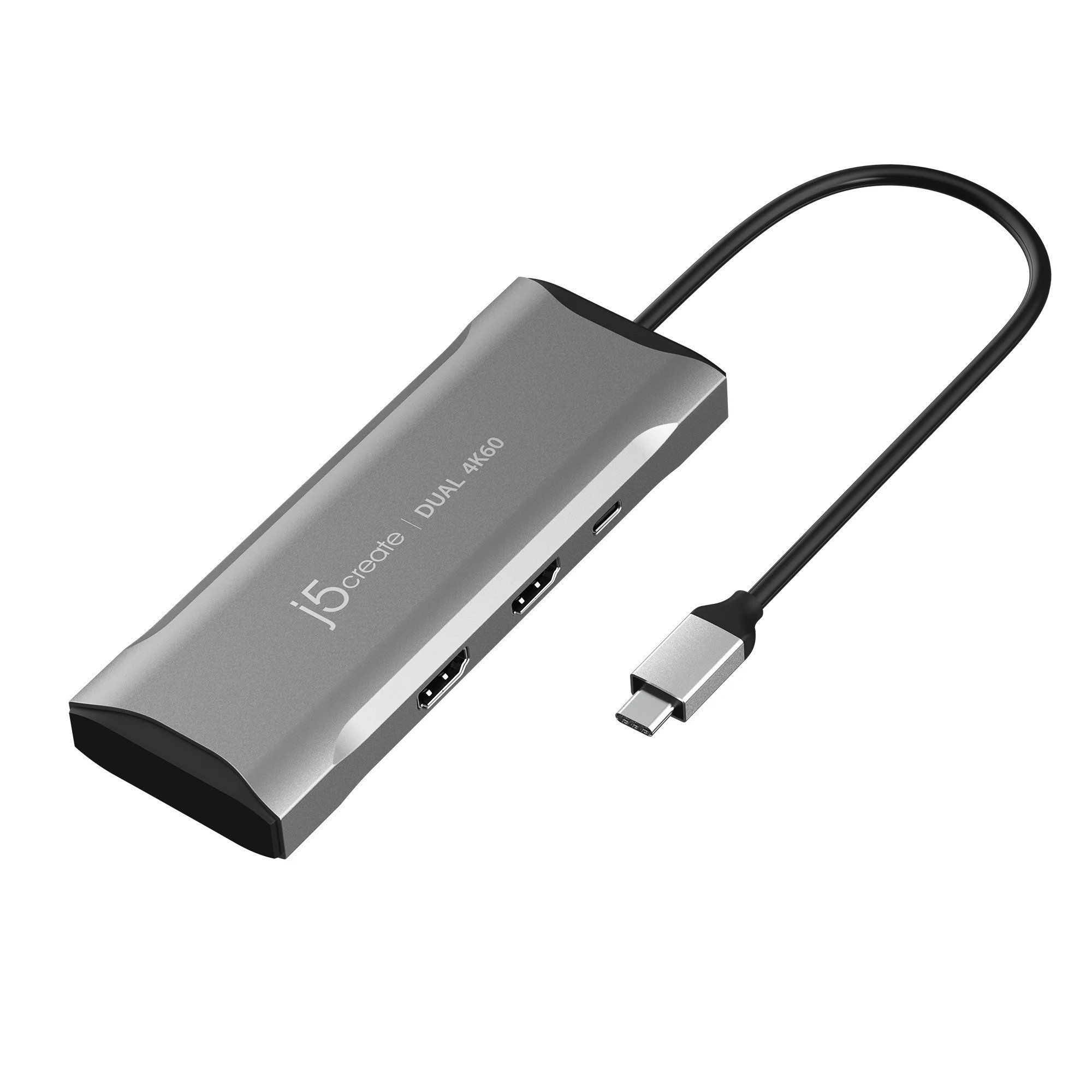

Featuring all the ports you need, the USB-C® Dual 4K60 Mini Dock. This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual 4K workstation with two HDMI™ outputs. It includes three USB™ SuperSpeed 5Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging. It also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Features:

• Features Dual 4K HDMI™ outputs, supporting video resolutions up to 3840 x 2160 at 60 Hz.
• Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate.
• Extend one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS.
• Three SuperSpeed USB™ 5Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals.
• Charge and power a connected laptop and peripherals with 100W Power Delivery.
• Plug-and-play, no driver installation required.
• Supports dual 4K60 HDMI™ on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*.

Expand Your View, Enhance Your Productivity
Enjoy crystal-clear visuals with support for two 4K60 HDMI™ monitors, perfect for multitasking and professional workflows.

All the Ports You Need
Equipped with two HDMI™ ports, two USB™ Type-A ports, a USB-C® port, and a PD pass-through charging port.

Stay Powered, Stay Productive
Deliver up to 92W of pass-through charging to your laptop

Transfer Files In Seconds
Features three SuperSpeed USB™ 5Gbps ports, including USB-C® and two USB™ A ports. Transfer data at ultra-high speeds and connect various peripherals.

Sleek and Durable Aluminum Housing
Crafted with aluminum alloy for a premium feel and enhanced durability.

Compact Yet Powerful
Delivers big features in a portable design, ideal for on the go.

Plug-and-Play
No drivers needed—simply connect and start working, gaming, or creating with ease.

Compatibility And Resolution
This product is recommended for Windows® users. For macOS® users, the external two monitors will display the same content.

System Requirements:

• Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. Please refer to the manufacturer of your computer for more information about your device.
• The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
• The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:
• Macbook Air® 13" 2019 or later
• Macbook Pro® 15" 2017 or later
• Macbook Pro® 16"
• iPad Pro® 11"/12" 2018 or later
• Surface™ Pro 7
• Surface™ laptop 3

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-JCD396
Hardware
Audio Supported	Yes
Host Connector	1 - USB-C Male
Network Interface	N/A
Ports	1 - USB-C SuperSpeed 5Gbps
	2 - USB Type-A SuperSpeed 5Gbps
	1- USB-C Power Delivery 3.0
	2 - 4K HDMI
Power Source	Bus-powered or self-powered
Video Output	2 - HDMI Female
Performance
Audio Channel	2.1 via HDMI
Compatible Networks	N/A
Displays Supported	2
Max Data Transfer Rate	5 Gbps
Max Display Refresh Rate	Windows (MST)
	3840 x 2160 @ 60 Hz
	2560 x 1440 @ 120 Hz
	1920 x 1080 @ 144 Hz
Max Display Resolution	3840 x 2160 @ 60 Hz
Power
Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.6A
Output Voltage	Up to 20V
Power Consumption	≤ 400 mA
Power Delivery	Up to 100W via USB-C
Physical Specifications
Cable Length	7.87 in. (200 mm)
Colour	Space Grey
Enclosure Type	Aluminum
Operating Humidity	< 85% non-condensing
Operating Temperature	30 to 116°F (-1 to 41°C)
Product Depth	1.96 in. (50 mm)
Product Height	0.62 in. (16 mm)
Product Weight	3.77 oz (107g)
Product Width	5.4 in. (138 mm)
Storage Humidity	< 85% non-condensing
Storage Temperature	0 to 155°F (-17 to 68°C)
