DS-KV8413-WME1

Overview

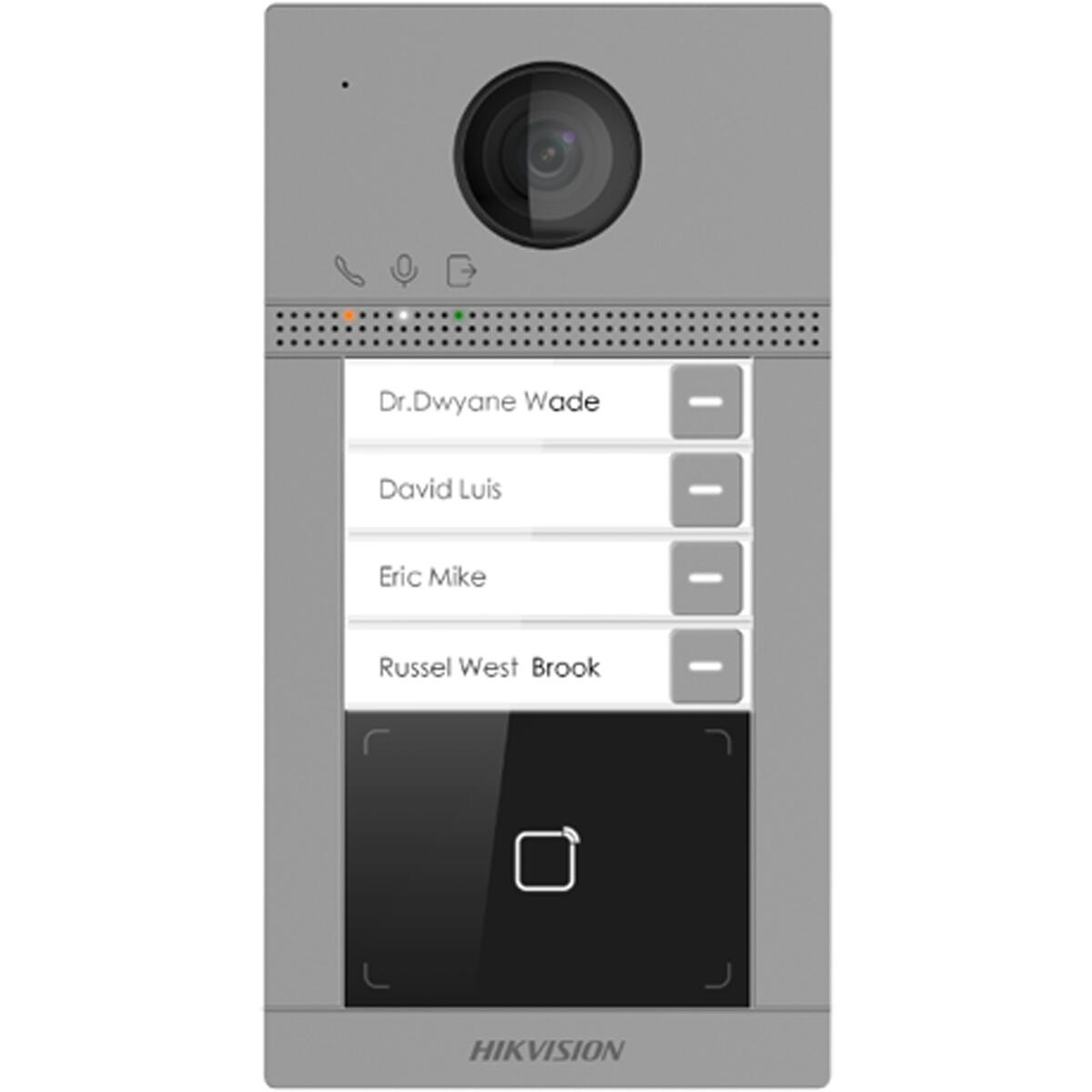

The Hikvision DS-KV8413-WME1 is a 4-button metal villa door station designed for reliable access control and clear two-way communication in residential and multi-unit properties. Its durable aluminum alloy construction, 2MP HD camera and IR illumination provide dependable visitor identification, while standard PoE or 12 VDC power simplifies installation. With Ethernet connectivity, web configuration, integrated Mifare card access and support for up to four indoor stations, it is suited to modern Hikvision intercom systems.

Description

The Hikvision 4 Button Metal Villa Door Station combines video intercom communication with practical door access control in a robust surface-mounted design. The built-in 2MP HD camera supports up to 1920 x 1080 resolution, with IR supplementation for improved visibility when lighting is limited. Noise suppression and echo cancellation help provide clearer conversations between visitors and occupants.

The unit supports WiFi for convenient setup and configuration, while 10/100 Mbps self-adaptive Ethernet provides network connectivity. It also supports standard PoE or 12 VDC power, giving installers flexibility when planning the system.

Built for outdoor use, the door station features an aluminum alloy housing with IP65 protection and IK08 impact resistance. Three integrated indicators provide useful status information, while the internal Mifare card reader adds an additional access control option.

Features

Hikvision 4 Button Video Door Station
Four call buttons make the DS-KV8413-WME1 suitable for villas, multi-occupancy properties or installations requiring several individual indoor stations. The system supports access control for up to four indoor stations, helping provide a practical solution where multiple occupants need to receive calls from the entrance.

The camera and communication system work together to allow visitors to be identified and spoken to before access is granted.

Outdoor Door Station Design
The aluminum alloy housing is designed for demanding installation environments. IP65 protection helps protect the unit against dust and water ingress, while IK08 provides resistance against mechanical impact. Surface mounting allows the door station to be installed directly onto a suitable wall or mounting surface.

Key installation and hardware details include:

• 4 physical call buttons
• Aluminum alloy housing
• IP65 weather protection
• IK08 impact protection
• Surface mounting installation
• 3 integrated status indicators
• Internal Mifare card reader

2MP HD Camera and Night Visibility
The integrated 2MP HD camera delivers a maximum resolution of 1920 x 1080 for clearer visitor identification. IR supplementation assists with visibility in low-light conditions, making the door station suitable for use during both daytime and nighttime.

Door Access and Control
The door station provides multiple connection options for access control equipment and door monitoring. It includes two exit button inputs, two lock control connections and two door contact inputs, allowing the system to integrate with suitable door hardware.

• 2 exit button inputs
• 2 lock control connections
• 2 door contact inputs
• 4-channel indoor station access control
• Internal Mifare card reader

Network and Power Connectivity
The DS-KV8413-WME1 supports 10/100 Mbps self-adaptive Ethernet for network communication and configuration. Standard PoE support can simplify installation by allowing power and network connectivity to be delivered through a compatible Ethernet connection. A 12 VDC power option is also available where required.

The door station supports web configuration, making system setup and management more convenient. WiFi support can also assist with initial configuration where appropriate.

Clear Two-Way Communication
For visitor communication, the unit incorporates noise suppression and echo cancellation. These functions help reduce unwanted audio interference and improve voice clarity during conversations between the entrance and connected indoor stations.

Part Number and Model
The product part number / SKU is DS-KV8413-WME1 . The supplied model information also references DS-KV8413-WME1(B), which is marked as discontinued. Confirm the exact available model and revision before ordering.

Technical Details

• Product type: 4-button metal villa door station
• Camera: 2MP HD with IR supplementation
• Maximum resolution: 1920 x 1080
• Network: 10/100 Mbps self-adaptive Ethernet
• Power: Standard PoE / 12 VDC
• Connectivity: Ethernet and WiFi support
• Access reader: Internal Mifare card reader
• Lock control: 2
• Exit button inputs: 2
• Door contact inputs: 2
• Installation: Surface mounting
• Housing: Aluminum alloy
• Protection rating: IP65
• Impact protection: IK08
• Communication: Noise suppression and echo cancellation

The Hikvision DS-KV8413-WME1 is a practical choice for residential video intercom and access control installations that require durable outdoor construction, HD video, multiple call buttons and flexible network and power options.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-KV8413-WME1
Display parameters
Size	/
Operation method	/
Type	/
Video parameters
Supplement light	IR supplement
Lens	1
FOV	Horizontal: 129degrees Vertical: 75degrees
Pixel	Main stream : 1920 x 1080
	Sub stream : 720 x 480
Audio parameters
Audio quality	Noise suppression and echo cancellation
Network parameters
Communication protocol	TCP/IP, RSTP
Wired network	10/100 Mbps self-adaptive Ethernet
Wi-Fi	/
Bluetooth	/
Device interfaces
Network interface	1
Exit button	2
Lock control	2
Door contact input	2
Power interface	1
General
Button	4
Installation	Surface Mounting
Indicator	3
	385g
Protective level	IP65, IK08
Power supply method	IEEE802.3af, standard PoE
	12 VDC
Working temperature	-40degrees C to +55degrees C(-40degrees F to 131degrees F)
Working humidity	10% to 95%
Dimensions	174 mm x 91 mm x 29 mm
Battery	/
Application environment	Outdoor
Power consumption	< 10 W
Language	English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Slovak, Portuguese
