DS-KV9503-WBE1

Overview

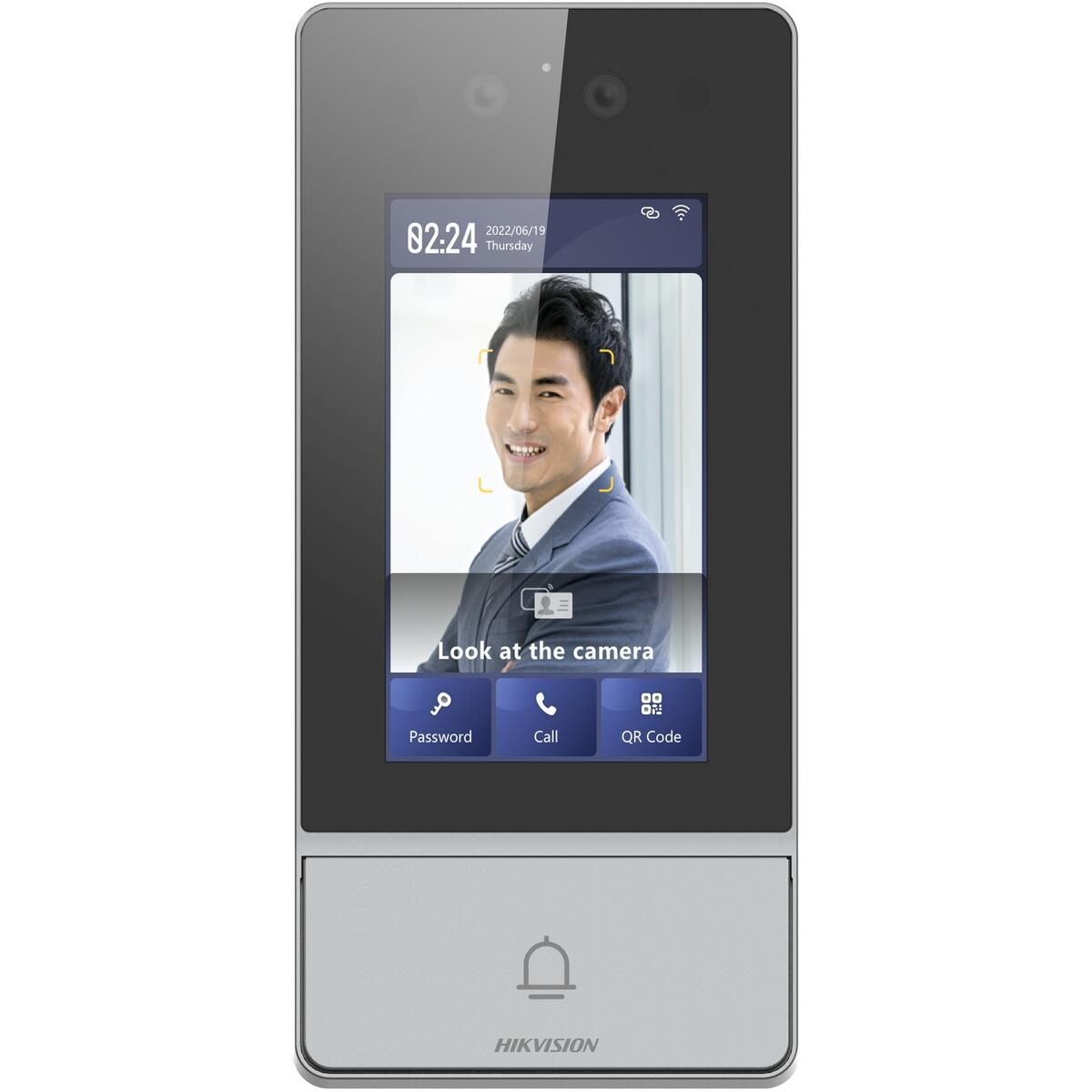

The Hikvision DS-KV9503-WBE1 is a metal vandal-resistant facial recognition IP villa door station designed for secure residential access control and convenient visitor communication. It combines facial recognition, card, PIN code, QR code and Bluetooth authentication with a 4.3-inch capacitive touch screen and dual 2 MP cameras. With Wi-Fi, Bluetooth and standard PoE support, the door station can provide flexible installation and connectivity options while also allowing calls to the Hik-Connect app without requiring a separate indoor station.

Description

The Hikvision DS-KV9503-WBE1 provides a modern and secure entrance solution for villas and residential properties. Its durable metal construction is designed for demanding outdoor environments, with IP65 and IK08 protection helping protect the unit against dust, water and physical impact.

The integrated facial recognition system provides convenient access control, while other authentication options allow users to select the method that best suits their requirements. The 4.3-inch 800 x 480 capacitive touch screen provides a clear interface, and the one-touch physical call button makes visitor communication straightforward.

The dual 2 MP cameras include IR illumination for improved identification and monitoring in low-light conditions. Built-in audio hardware provides two-way communication, while the door station can connect directly with the Hik-Connect app, making it possible to answer calls remotely without installing an indoor station.

Features

Secure Access Control for Residential Entrances
Multiple authentication methods provide flexibility for residents and authorised users:

• Facial recognition
• PIN code authentication
• Card authentication
• QR code authentication
• Bluetooth authentication

The system supports up to 20,000 users, 10,000 stored faces and 100,000 cards, making it suitable for larger residential access management requirements as well as private villas.

Camera and Visitor Communication
Two 2 MP cameras provide visual identification at the entrance, with IR illumination reaching up to 3 metres. H.264 video compression is supported for the main and sub streams, helping provide efficient video transmission.

The door station includes a built-in omnidirectional microphone and loudspeaker for two-way communication. A one-touch physical button provides a simple way for visitors to initiate a call.

Access Control and Door Management
The DS-KV9503-WBE1 provides several connection options for integrating the door station with an access control setup. Dual relay outputs can be used for lock control, while additional inputs support door monitoring, exit buttons and alarm devices.

Key connection and control options include:

• 4 alarm inputs
• 1 tamper input
• 2 exit button inputs
• 2 door contact inputs
• 1 RS-485 interface
• 2 relay outputs for lock control
• Standard PoE power supply

Network Connectivity and Installation
The IP-based door station supports Wi-Fi and Bluetooth connectivity alongside Ethernet and standard PoE power. Its Linux operating system and embedded high-performance processor provide the processing platform for facial recognition, access authentication and visitor communication.

Surface mounting allows the unit to be installed directly at the entrance of a villa or residential property. Its IP65 and IK08 protection ratings make it suitable for outdoor installation where protection against environmental conditions and impact is important.

Technical Details

• Model: Hikvision DS-KV9503-WBE1
• Product type: Facial recognition IP villa door station
• Display: 4.3-inch IPS capacitive touch screen
• Display resolution: 800 x 480
• Cameras: 2 x 2 MP
• IR illumination: Up to 3 m
• Video compression: H.264 main stream and sub stream
• Operating system: Linux
• Microphone: Built-in omnidirectional microphone
• Speaker: Built-in loudspeaker
• User capacity: Up to 20,000 users
• Face capacity: Up to 10,000 faces
• Card capacity: Up to 100,000 cards
• Connectivity: Ethernet, Wi-Fi and Bluetooth
• Protection: IP65 and IK08
• Installation: Surface mounting
• Power: Standard PoE

The product part number / SKU is DS-KV9503-WBE1, which can be used to identify the exact Hikvision door station model when ordering or configuring the system.

Suitable Applications
The Hikvision DS-KV9503-WBE1 is well suited to villas, private residences, gated homes and other residential entrances where secure access control and convenient visitor communication are required. Its combination of facial recognition, multiple authentication methods, video cameras, remote Hik-Connect calling and physical access control connections makes it a versatile IP door station for modern residential security systems.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-KV9503-WBE1
System parameters
Operation system	Linux
ROM	4 GB
RAM	1 GB
Processor	Embeded high performance processor
Display parameters
Screen size	4.3-inch
Operation method	Capacitive touch screen
Type	IPS
Resolution	800 x 480
Luminance	425 cd/m²
Video parameters
Lens	2
Resolution	2 x 2 MP
FOV	Horizontal: 88degrees, Vertical: 44degrees
Wide dynamic range (WDR)	Support 120 dB
Supplement light	IR light, up to 3 m
Video compression standard	Main stream and sub stream: H.264
	Third stream: H.265
Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio compression standard	G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio output	1 built-in loudspeaker
Audio compression bitrate	G.711u, G.711a, Opus : 64kbps ; G.722.1, G.726 : 32kbps ; AAC-LD, AAC-LC : 16kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
User capacity	20000
Face capacity	10000
Fingerprint capacity	/
Card capacity	100000
Message capacity	/
Linked indoor station capacity	500
Sub door station capacity	16
Network parameters
Network protocol	TCP/IP, RTSP
Wi-Fi	IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth	Support : 2.0
3G/4G	/
Authentication
Card reading frequency	13.56 MHz
Face recognition distance	0.3 to 2 m
Face recognition accuracy rate	≥ 99%
Face recognition duration	< 0.2 s per person
Device interfaces
Alarm input	4 (2 exit butttons and 2 door contacts by default)
Network interface	1 RJ-45, 10/100 Mbps self-adaptive
TAMPER	1
Exit button	2
RS-485	1
USB	/
Wiegand	/
TF card	Reserved
Lock control	2 relays, Max. 30 VDC 2 A
Door contact input	2
General
Button	1 physical button
Installation	Surface mounting
Indicator	/
	Net weight: 0.405 kg
	Gross weight: 0.752 kg
Protective level	IP65, IK08
Working temperature	-40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF)
Working humidity	10% to 90% (no-condensing)
Dimension (W x H x D)	182 mm x 85 mm x 26 mm (7.16" x 3.34" x 1.01")
Battery	/
Power supply	12 VDC, 1.5 A,IEEE802.3af, Standard PoE
Application environment	Outdoor
Power consumption	≤ 6 W
Language	English,French, BrazilianPortuguese, Spanish,Russian,German, Italian,Polish, Turkish,Vietnamese, Arabic,Czech, Hungarian,Dutch, Romanian,Bulgarian, Ukrainian,Croatian, Serbian,Greek
