DS-PM1-I16O2-WE Hikvision DS-PM1-I16O2-WE Multi IO transmitter

DS-PM1-I16O2-WE

Click to view larger image

R 2,345.00

inc. VAT

In Stock

Add To Cart

Rate

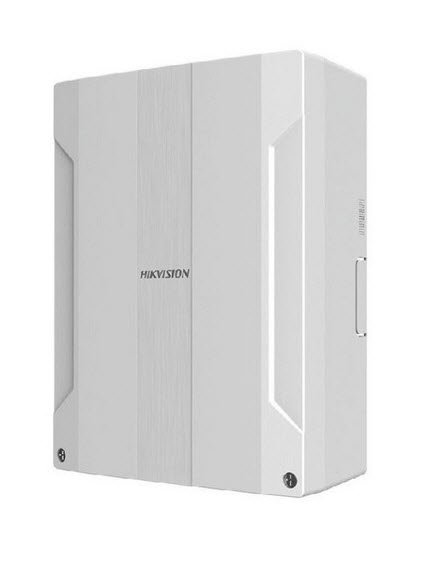

Hikvision DS-PM1-I16O2-WE Multi IO transmitter

Images are for illustrative purposes and actual product may differ.

DS-PM1-I16O2-WE

Alarm Sensors & Sirens

Hikvision

DS-PM1-I16O2-WE information and overview

Hikvision DS-PM1-I16O2-WE Multi IO transmitter. Frequency hooping against jamming .

Good news! We found a possible cheaper supplier here

Specifications & more information about DS-PM1-I16O2-WE, Alarm Sensors & Sirens manufactured by Hikvision

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Features:

868MHz two-way wireless communication
LED display, show the real status of device
With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
With two 12v power outputs, can be used to power up external wired detectors
Large space for back up storage battery

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-PM1-I16O2-WE
Software features
End of Line Resistance	1k 2.2k 4.7k 8.2k
End of Line Resistance	NO/NC
Hardware features
Serial port	1
Battery port	1, 12 VDC input
Tamper-Proof	Front and rear
Power switch	1
Alarm input	16
Alarm output	2
Power Output	2 (12v, total1A)
Electrical characteristics
Battery type	Compatible with 12v 7 Ah
Battery type	150 x 64 x 94 mm
Power supply	100-240VAC, 30w
Operation humidity	10%~90%
Operation temperature	-10 ~ 40°C
Power consumption	Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)
Power consumption	220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
Battery life span	Up to 36 hours
Wireless transmission
RF frequency	868MHz
RF method	Two-way communication
RF modulation	2GFSK
RF distance	1100m
Display
Indicator	3: Power(Green), Fault(Amber), Signal Strength(Green/Red)
General
Installation method	Wall Mounting
Dimension(WxHxD)	26119986.4mm
Shell material	Plastic
Color	White
Weight	975 g (without battery)
Weight	3024g (with battery)
