Overview Summary

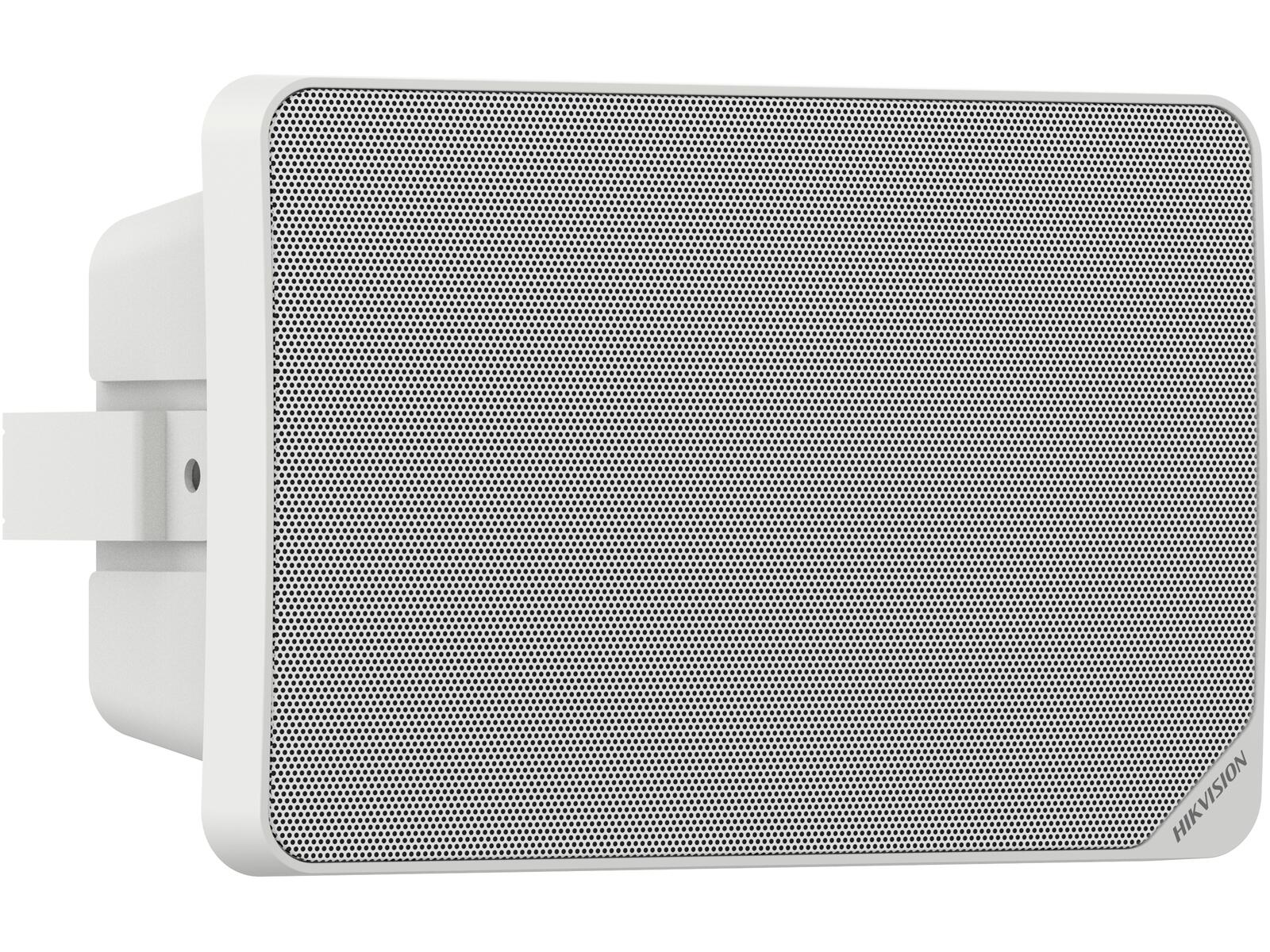

The Hikvision 20W Analog Cabinet Speaker is a practical choice for clear public address audio in commercial and professional environments. With a 5.25-inch speaker unit, selectable 70V and 100V power settings, and 8-ohm input, it offers flexible installation for a range of audio systems. The white cabinet design provides a clean, professional appearance.
Ideal for announcements, background audio and voice communication, this Hikvision speaker delivers up to 103 dB SPL with a 130 Hz to 17.5 kHz frequency response. Buy now or shop now for a dependable 20W cabinet speaker for your audio installation.
Performance tier: Professional
Uses: Public address systems, voice announcements, commercial audio, background music, schools, offices, retail spaces Overview
The Hikvision DS-QAE0120G1R/EN/WHITE is a 20W analog cabinet speaker designed for clear, reliable sound distribution in commercial, public address and emergency voice alarm installations. Its 5.25-inch speaker unit supports both 70 V and 100 V line systems, making it suitable for a range of professional audio applications where consistent sound coverage is required.
Description
The Hikvision analog cabinet speaker provides flexible power selection with 5 W, 10 W, 15 W and 20 W settings on both 70 V and 100 V systems. It delivers up to 103 dBSPL maximum acoustic pressure with a sensitivity of 90 dB at 1 m and 1 W, while its 130 Hz to 17.5 kHz frequency response helps provide clear speech and general audio reproduction.
The cabinet is designed for all-direction sound distribution and includes a fixed-pressure input for 70 V or 100 V systems, as well as an 8 ohm fixed-resistance input. This gives installers flexibility when integrating the speaker into different commercial audio and public address systems.
The white finish offers a clean appearance for installations where the speaker needs to blend into its surroundings. A metal U-shaped bracket is supplied for mounting, while the plastic main body and front cover provide a practical and lightweight enclosure.
Audio Performance
The 5.25-inch speaker unit is designed to provide dependable audio output across a broad frequency range. With a maximum acoustic pressure level of 103 dBSPL and 90 dB +/- 3 dB sensitivity, the speaker is well suited to speech announcements, background audio and public address applications.
Key audio details include:
- Speaker unit: 5.25 inch x 1
- Rated power: 70 V: 5 W, 10 W, 15 W or 20 W
- Rated power: 100 V: 5 W, 10 W, 15 W or 20 W
- Impedance: 8 ohm
- Maximum acoustic pressure: 103 dBSPL
- Sensitivity: 90 dB +/- 3 dB at 1 m, 1 W
- Frequency response: 130 Hz to 17.5 kHz
- Sound direction: All directions
70 V and 100 V Audio System Support
The DS-QAE0120G1R/EN/WHITE can be integrated into 70 V and 100 V distributed audio systems, allowing installers to select the appropriate power setting for the installation. The available 5 W, 10 W, 15 W and 20 W settings make it easier to balance speaker output across different areas and coverage requirements.
An 8 ohm fixed-resistance input is also provided, giving the speaker additional compatibility for suitable audio installations.
Installation and Construction
The speaker uses a plastic main body and front cover with a metal bracket for mounting. Its compact cabinet design makes it practical for wall and other fixed installations where clear audio coverage is required without using a large speaker enclosure.
The speaker measures 268.4 mm x 180.4 mm x 125.12 mm and has an approximate weight of 1.5 kg. The supplied U-shaped bracket and screw pack help simplify installation.
Operating Conditions
Designed for use in a variety of indoor environments, the speaker operates from -30 C to 60 C with relative humidity below 90 percent, provided there is no condensation.
- Operating temperature: -30 C to 60 C
- Operating humidity: Less than 90 percent, non-condensing
- Dimensions: 268.4 mm x 180.4 mm x 125.12 mm
- Approximate speaker weight: 1.5 kg
- Package dimensions: 340 mm x 306 mm x 180 mm
- Approximate packaged weight: 2 kg
- Colour: White
Part Number and Installation Package
For ordering and product identification, the part number / SKU is DS-QAE0120G1R/EN/WHITE. The package includes the speaker, U-shaped mounting bracket, screw pack, installation sticker and regulatory compliance and safety information.
The Hikvision DS-QAE0120G1R/EN/WHITE is a practical choice for public address, commercial audio and distributed voice systems requiring flexible 70 V or 100 V operation, selectable power levels and dependable sound output in a compact cabinet.
Features
The Hikvision DS-QAE0120G1R/EN/WHITE is a 20W analog cabinet speaker designed for clear, reliable sound distribution in commercial, public address and emergency voice alarm installations. Its 5.25-inch speaker unit supports both 70 V and 100 V line systems, making it suitable for a range of professional audio applications where consistent sound coverage is required.
Description
The Hikvision analog cabinet speaker provides flexible power selection with 5 W, 10 W, 15 W and 20 W settings on both 70 V and 100 V systems. It delivers up to 103 dBSPL maximum acoustic pressure with a sensitivity of 90 dB at 1 m and 1 W, while its 130 Hz to 17.5 kHz frequency response helps provide clear speech and general audio reproduction.
The cabinet is designed for all-direction sound distribution and includes a fixed-pressure input for 70 V or 100 V systems, as well as an 8 ohm fixed-resistance input. This gives installers flexibility when integrating the speaker into different commercial audio and public address systems.
The white finish offers a clean appearance for installations where the speaker needs to blend into its surroundings. A metal U-shaped bracket is supplied for mounting, while the plastic main body and front cover provide a practical and lightweight enclosure.
Audio Performance
The 5.25-inch speaker unit is designed to provide dependable audio output across a broad frequency range. With a maximum acoustic pressure level of 103 dBSPL and 90 dB +/- 3 dB sensitivity, the speaker is well suited to speech announcements, background audio and public address applications.
Key audio details include:
- Speaker unit: 5.25 inch x 1
- Rated power: 70 V: 5 W, 10 W, 15 W or 20 W
- Rated power: 100 V: 5 W, 10 W, 15 W or 20 W
- Impedance: 8 ohm
- Maximum acoustic pressure: 103 dBSPL
- Sensitivity: 90 dB +/- 3 dB at 1 m, 1 W
- Frequency response: 130 Hz to 17.5 kHz
- Sound direction: All directions
70 V and 100 V Audio System Support
The DS-QAE0120G1R/EN/WHITE can be integrated into 70 V and 100 V distributed audio systems, allowing installers to select the appropriate power setting for the installation. The available 5 W, 10 W, 15 W and 20 W settings make it easier to balance speaker output across different areas and coverage requirements.
An 8 ohm fixed-resistance input is also provided, giving the speaker additional compatibility for suitable audio installations.
Installation and Construction
The speaker uses a plastic main body and front cover with a metal bracket for mounting. Its compact cabinet design makes it practical for wall and other fixed installations where clear audio coverage is required without using a large speaker enclosure.
The speaker measures 268.4 mm x 180.4 mm x 125.12 mm and has an approximate weight of 1.5 kg. The supplied U-shaped bracket and screw pack help simplify installation.
Operating Conditions
Designed for use in a variety of indoor environments, the speaker operates from -30 C to 60 C with relative humidity below 90 percent, provided there is no condensation.
- Operating temperature: -30 C to 60 C
- Operating humidity: Less than 90 percent, non-condensing
- Dimensions: 268.4 mm x 180.4 mm x 125.12 mm
- Approximate speaker weight: 1.5 kg
- Package dimensions: 340 mm x 306 mm x 180 mm
- Approximate packaged weight: 2 kg
- Colour: White
Part Number and Installation Package
For ordering and product identification, the part number / SKU is DS-QAE0120G1R/EN/WHITE. The package includes the speaker, U-shaped mounting bracket, screw pack, installation sticker and regulatory compliance and safety information.
The Hikvision DS-QAE0120G1R/EN/WHITE is a practical choice for public address, commercial audio and distributed voice systems requiring flexible 70 V or 100 V operation, selectable power levels and dependable sound output in a compact cabinet.
Specifications
| ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | DS-QAE0120G1R/EN/WHITE |
| Speaker |
| Rated Power | 70 V: 5 W/10 W/15 W/20 W |
| 100 V: 5 W/10 W/15 W/20 W |
| Impedance | 8 Ω |
| Max. Acoustic Pressure | 103 dBSPL |
| Sensitivity(1 m, 1 W) | 90 dB ± 3dB |
| Direction | All directions |
| Frequency Response | 130 Hz to 17.5 kHz |
| Speaker Unit | 5.25'' x 1 |
| Interface |
| Audio In | Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 Ω x 1 |
| General |
| Material | Main body&Front cover : plastic, bracket: metal |
| Operating Temperature | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF) |
| Operating Humidity | < 90% (No condensation) |
| Dimension | 268.4 mm x 180.4 mm x 125.12 mm (10.57" x 7.1" x 4.93") |
| Package Dimension | 340 mm x 306 mm x 180 mm (13.39" x 12.05" x 7.09") |
| Approx. 1.5 kg (3.3 lb.) |
| Color | White or black appearance optional |
| With Package Weight | Approx. 2 kg (4.4 lb.) |
| Packing List | Device x 1 |
| U-shaped bracket x 1 |
| Screw pack x 1 |
| Installation sticker x 1 |
| Regulatory Compliance and Safety Information x 1 |
