E-XS5

Overview

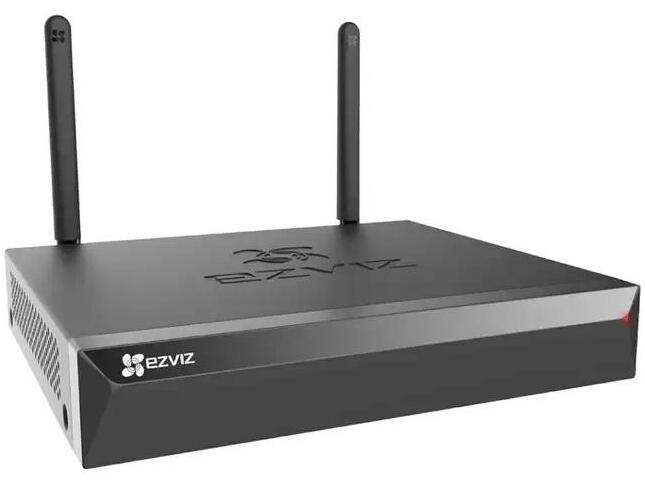

Ezviz X5S 8 Channel Wireless NVR
The Ezviz X5S is an advanced 8-channel wireless NVR designed for reliable and seamless video recording. With strong wireless connectivity, high-resolution output, and support for multiple recording modes, this NVR provides secure and efficient storage for surveillance systems at home or in business environments.

Description

The Ezviz X5S Wireless NVR offers powerful performance with up to 3K recording resolution, 100m wireless range, and compatibility with both HDMI and VGA outputs. It supports multiple video formats, H.265 compression for efficient storage, and playback of up to eight 3K streams. With a capacity of up to 8TB storage, easy backup options, and wide protocol compatibility, it's built to deliver dependable surveillance management.

Features

Key Capabilities

• 8-channel wireless NVR support
• Wireless range up to 100m
• Compatible with 2.4GHz WiFi
• One 10/100M Ethernet interface
• HDMI output up to 2592x1944 @ 30Hz
• VGA output up to 1920x1080 @ 60Hz
• 3K max recording resolution
• Video encoding with H.265 / H.264
• Playback for up to 8 channels in 3K

Storage and Recording

• One SATA port supporting 1TB-8TB HDD
• Recording modes: manual, motion detection, scheduled, event-triggered
• Backup via hard disk or internet applications
• Playback options: instant, normal, event, tag, and log event playback

Network and Connectivity

• Dual antennas for strong signal
• Required access bandwidth: 50 Mbps / 100 Mbps
• Open protocol support: Hikvision, ONVIF (V2.5)

Interfaces and Ports

• 2x USB 2.0 ports
• No audio input/output
• Hardware reset supported

Dimensions and Power

• Product size: 235 x 270 x 44.5 mm
• Packaging size: 387 x 362 x 75 mm
• Net weight: 932 g
• Power supply: DC 12V/1.5A
• Standby consumption: ≤ 8W

Package Contents

• X5S NVR
• Power adapter
• Mouse
• Screw kit
• Regulatory documents
• Quick start guide

Certifications
CE, UL, RoHS, WEEE, REACH

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	E-XS5
Model	CS-X5S-R100-8W
IPC Access Capability
Wireless/Wired IPC Access Capability	3K x 8
Wired IPC Access Capability	3K x 8 (X5S-8W)
Network Parameters
Antenna Number	2
Max Wireless Range	100m
Radio Frequency	2.4G
Ethernet Port	One 10/100M Adaptable Ethernet Interface
Required Access Bandwidth	50 Mbps/100 Mbps
Video Output
VGA	1 Channel (Identical to HDMI Output) Resolution up to 1920 x 1080/60Hz
HDMI	1 Channel Resolution up to 2592 x 1944/30HZ
Audio/Video Codec
Recording Resolution	3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
Video Encoding	H.265, H.264
Decode Playback	Supports 8 x 3K
Video Recording Management
Video Recording Mode	Manual Video Recording , Motion Detection Recording
	Scheduled Video Recording , Event Triggered Recording
Backup Mode	Hard Disk backup, Internet Application Backup
Playback Mode	Instant Playback , Normal Playback , Event Playback
	Tag Playback , Log Event Playback
Open Protocol	Open Protocol Support HIKVISION, ONVIF (V.2.5)
HDD
Interface Type	One Built-In SATA Port
Capability	Supports 1TB to 8TB 3.5 Inch HDD
External Interface
Audio Input/ Output	Not Support
Hardware Reset	Supports
USB2.0 Interface	2
Dimensions
Product Dimensions	235 x 270 x 44.5 mm (9.25 x 10.6 x 1.75 inch)
Packaging Dimensions	387 x 362 x 75 mm (15.2 x 14.3 x 3 inch)
Power Supply
DC	12V/1.5A
Consumption
Standby Status	=8W
Weight
Net Weight	932 g
In The Box
In The Box	X5S NVR x 1
	Power Adapter x 1
	Mouse x 1
	Screw Kit x 1
	Regulatory Information x 2
	Quick Start Guide x 1
Certifications	CE / UL / RoHS / WEEE / REACH
