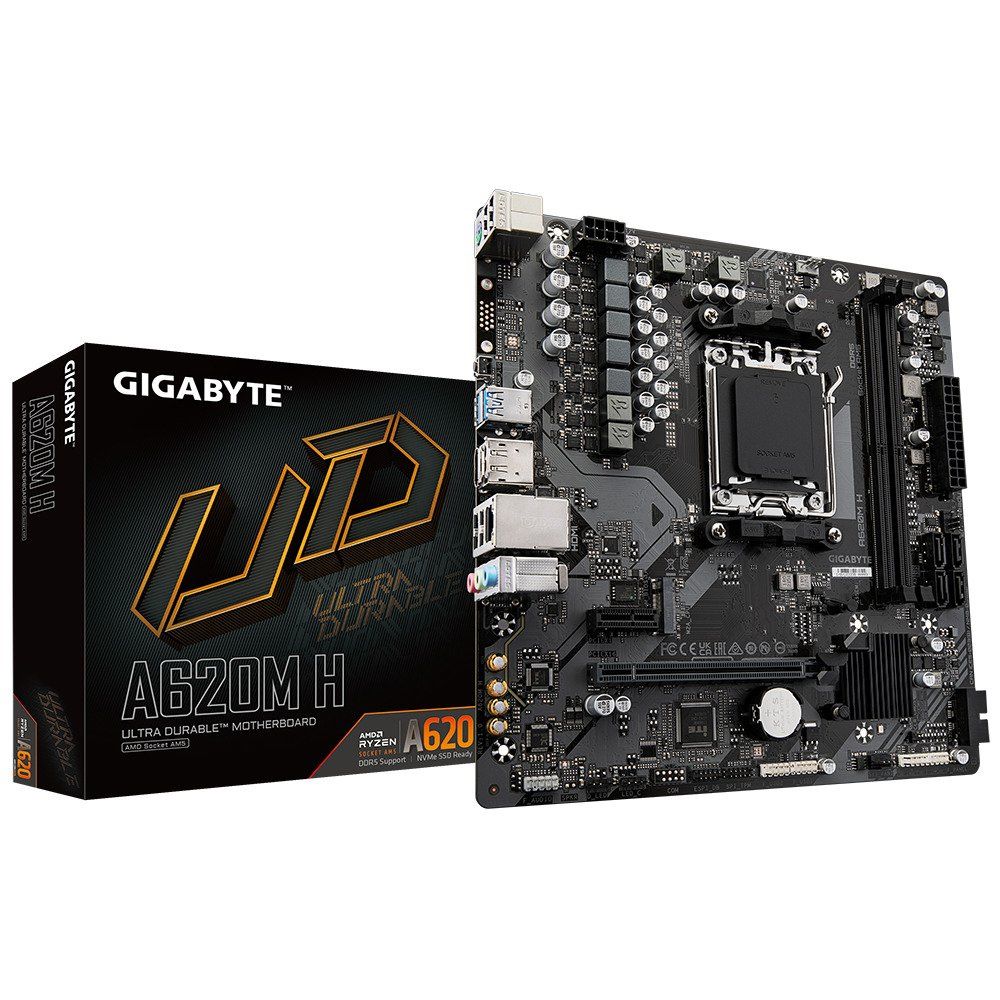

GA-A620M-H

Features:

• AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
• Unparalleled Performance:5+2+2 Phases Digital VRM Solution
• Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
• EZ-Latch:PCIe x16 Slot with Quick Release Design
• Fast Networks:GbE LAN
• Extended Connectivity:DP, HDMI
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

PCIe 4.0 Hardware Design
GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Unlock DDR5 Voltage

• GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
• Transforms Native DDR5 memory module to Overclocked DDR5 memory
• Increases DDR5 memory overclocking performance and capability
• Supports all PMIC vendors for maximum compatibility

Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

EXPO and XMP Dual Support
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

AMD EXPO™ and Intel® XMP 3.0 User Profile
Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.

• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control
Multiple temperature/fan speed control points for precise fan curve

Dual Curve Mode
Slope/Stair dual mode for different user scenario

Fan Stop
Fan can stop completely below users' specified temperature point

Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

Manual Input
For advanced users, we provide fan speed manual input for more precise control.

EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites
Add constantly used items into the favorite menu for quick access.

Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	GA-A620M-H
CPU	1. AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	1. AMD A620
Memory	1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	2. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)
Onboard Graphics	Integrated Graphics Processor:
	1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 1.4 version.
	2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to 3 displays at the same time
Audio	1. Realtek Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	1. Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU:
	1. AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
	2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
	Chipset:
	1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
	1. AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	1. 2 x USB 3.2 Gen 1 ports on the back panel
	2. 1 x USB 2.0/1.1 port on the back panel
	Chipset:
	1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
	2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 2 x system fan headers
	5. 1 x addressable LED strip header
	6. 1 x RGB LED strip header
	7. 1 x M.2 Socket 3 connector
	8. 4 x SATA 6Gb/s connectors
	9. 1 x front panel header
	10. 1 x front panel audio header
	11. 1 x USB 3.2 Gen 1 header
	12. 2 x USB 2.0/1.1 headers
	13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	14. 1 x Clear CMOS jumper
Back Panel Connectors	1. 4 x USB 2.0/1.1 ports
	2. 1 x PS/2 keyboard/mouse port
	3. 1 x Q-Flash Plus button
	4. 2 x USB 3.2 Gen 1 ports
	5. 1 x DisplayPort
	6. 1 x HDMI port
	7. 1 x RJ-45 port
	8. 3 x audio jacks
I/O Controller	1. iTE I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash Plus
	3. Support for Q-Flash
Bundled Software	1. Norton Internet Security (OEM version)
	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
	2. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor; 23.0cm x 22.5cm
