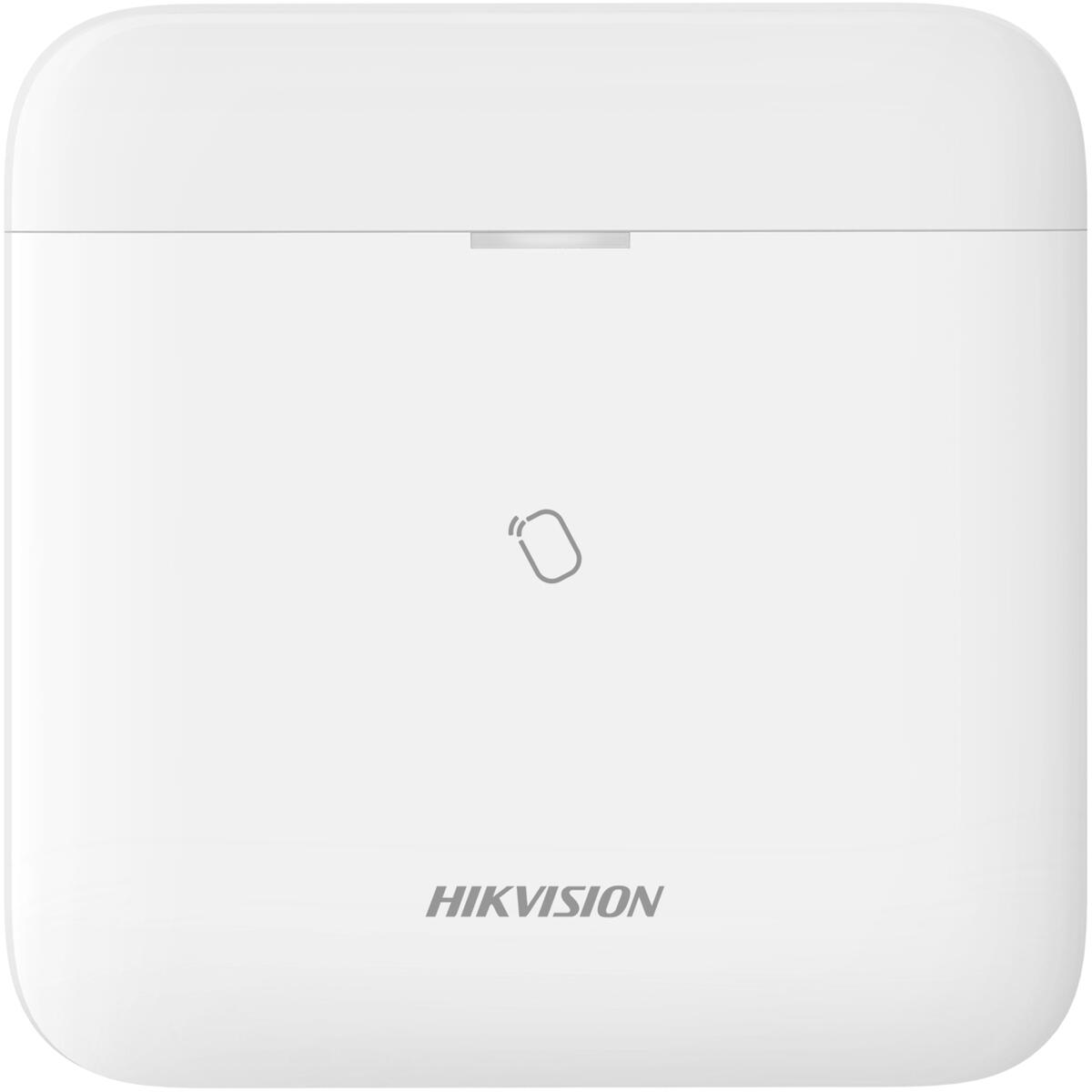

Hikvision Wireless Alarm Control Panel with Tri-X / Cam-X Technology, DS-PWA96-M-WE, Support for up to 96 Wireless zones including 48 PIRCAMs, TCP/IP / Wi-Fi / OnBoard 3G / 4G connectivity, AES-128 encrypted Wireless communication, Dual SIM slots, Video verification, Support for up to 48 Keyfobs / 8 keypads / 6 Wireless sounders / 4 repeaters
Availability will be confirmed by email.
Specifications & more information about HK-302401658, Alarm control panels manufactured by Hikvision
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview Summary
The Hikvision DS-PWA96-M-WE is a versatile wireless alarm panel designed for reliable security monitoring in homes and businesses. With support for up to 96 wireless zones, Wi-Fi, wired networking and 3/4G connectivity, it provides flexible alarm system management with remote configuration and notifications.
For convenient security control and dependable connectivity, the DS-PWA96-M-WE supports Hik-Connect, video verification, wireless keyfobs, sounders and PIRCAM devices. Its built-in backup battery helps maintain operation during power interruptions. Buy now for a flexible Hikvision wireless security solution in South Africa.
Performance tier: Professional
Uses: Home security, business security, wireless alarm systems, intrusion detection, remote security monitoring, video verification
Overview
The Hikvision DS-PWA96-M-WE is a professional wireless alarm control panel designed for flexible security system management across residential and commercial installations. It supports TCP/IP, Wi-Fi and 3/4G connectivity, providing multiple communication options for alarm reporting, remote management and system configuration.
Using Hikvision Tri-X and Cam-X wireless technology, the DS-PWA96-M-WE provides long-range wireless communication with two-way communication secured by AES-128 encryption. The panel can manage up to 96 wireless zones or outputs, including up to 48 PIRCAM devices, making it suitable for larger wireless alarm installations.
Description
The Hikvision DS-PWA96-M-WE combines wireless alarm management, multiple network connections and remote system control in a compact control panel. It supports up to 96 wireless zones, 48 keyfobs, 8 keypads or tag readers, 6 wireless sounders and 4 repeaters. Built-in 3/4G, Wi-Fi and wired network connectivity provide flexible communication options, while Hik-Connect, Hik-ProConnect, Web Portal, iVMS-4200 and Convergence Cloud support configuration and system management.
The panel also supports video verification, allowing users to view live video through Hik-Connect and receive alarm video clips through email or the app. Alarm notifications can be delivered through messages or phone calls, while voice prompts and LED status indicators provide additional system feedback.
Features
Wireless Alarm Control and Connectivity Tri-X and Cam-X wireless technology enables communication with a wide range of compatible Hikvision wireless devices. The system uses frequency hopping and 128-bit AES encryption for wireless security and operates on the 868 MHz RF frequency.
Key wireless capacity includes:
Up to 96 wireless zones or outputs
Up to 48 PIRCAM devices
Up to 48 wireless keyfobs
Up to 48 tags
Up to 8 keypads, including tag readers
Up to 6 wireless sounders
Up to 4 wireless repeaters
Up to 6 multi transmitters
Network and Remote Management The DS-PWA96-M-WE supports wired network, Wi-Fi and onboard 3/4G communication. It features dual SIM slots and can be configured or maintained through Hik-Connect, Hik-ProConnect, Web Portal, iVMS-4200 and Convergence Cloud.
The system supports up to 48 network users, consisting of 1 installer, 1 administrator and 46 normal users. Users can operate the system through the supported mobile application, while installers can use the installer APP for programming and diagnostics.
Alarm Reporting and Video Verification For professional alarm monitoring applications, the DS-PWA96-M-WE supports SIA-DC09, including SIA Level 2 and Contact ID, as well as ISUP, ISAPI and OTAP. It is compatible with Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication.
The control panel also supports video verification and remote control, with live video viewing through Hik-Connect and alarm video clips delivered through email and the APP.
System Management The panel provides 32 areas and supports Away and Stay arm modes, automatic arm and disarm timers, forced arming with open zones and firmware upgrades through the APP or Web Portal. A memory log can store up to 5000 events.
Diagnostics can be performed through the APP or Web interface, while the built-in voice prompt and LED indicators provide information about the current system condition.
Backup Power and Hardware A built-in lithium battery provides backup power for up to 12 hours at normal temperature. Battery performance can be significantly reduced at low temperatures. The panel includes a built-in power supply, loudspeaker and tag reader, along with an RS232 output.
Important technical details include:
Part Number / SKU: HK-302401658
Model: Hikvision DS-PWA96-M-WE
RF frequency: 868 MHz
Wireless security: Frequency hopping with 128 AES encryption
Network: TCP/IP, Wi-Fi and 3/4G
SIM slots: Dual
Backup battery: Built-in lithium battery, 4950 mAh
Battery backup: Up to 12 hours at normal temperature
Operating temperature: -10 C to +55 C with adapter connected
Dimensions: 170 x 170 x 38.6 mm
Weight: 557.5 g
Colour: White
Shell material: Plastic
The Hikvision DS-PWA96-M-WE provides a scalable wireless alarm platform with extensive device capacity, multiple communication methods, remote management and professional ARC reporting support. Its combination of Tri-X/Cam-X wireless technology, 3/4G, Wi-Fi, video verification and support for up to 96 wireless zones makes it suitable for larger Hikvision security system installations.
