HK-302901663

Overview

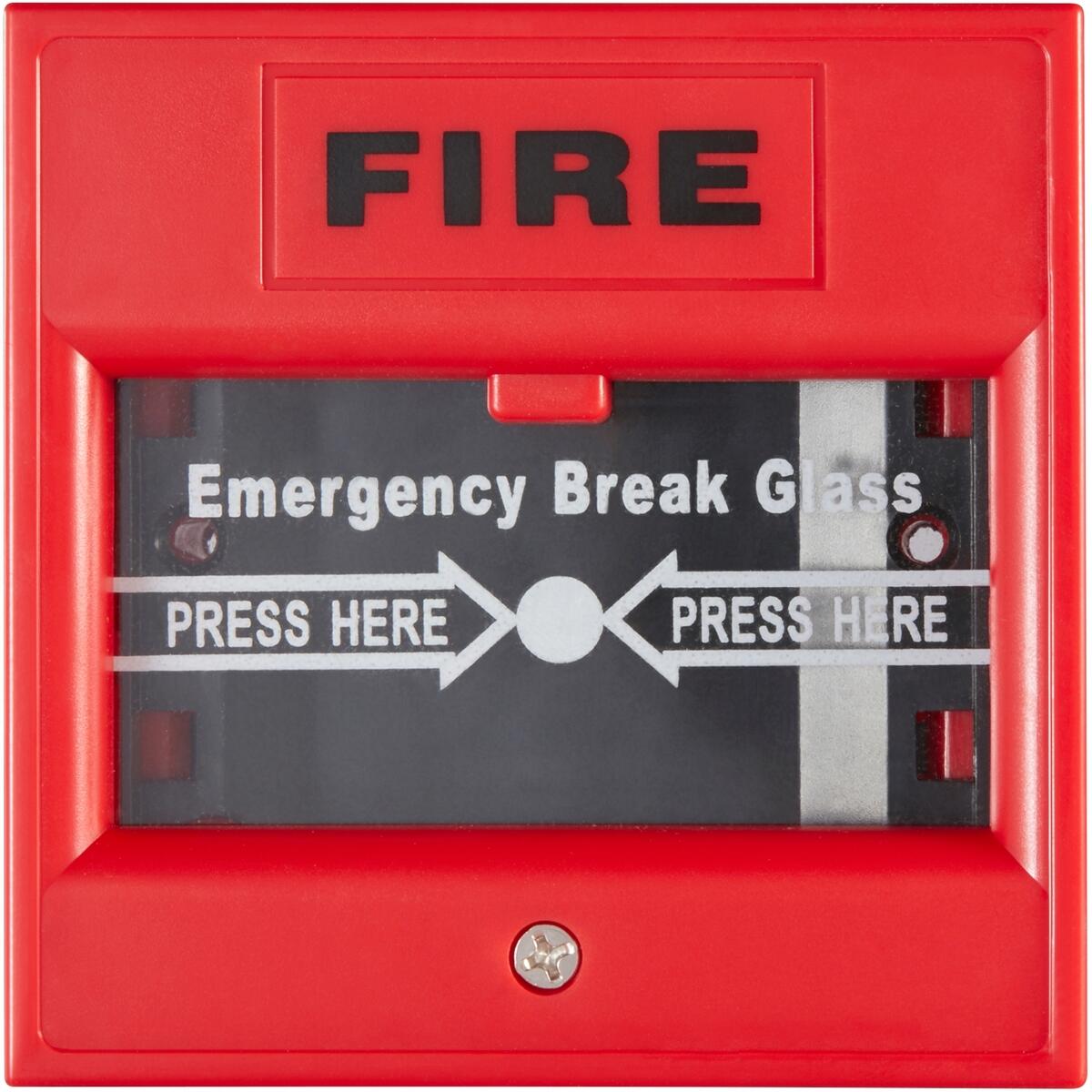

Hikvision DS-K7PEB Exit and Emergency Button
The Hikvision DS-K7PEB is an exit and emergency button designed for access control and emergency door release applications. Its red emergency break glass design provides a clear and easily identifiable method for releasing an exit door when required, making it suitable for commercial buildings, offices, industrial sites and other controlled-access environments.

Description

The DS-K7PEB provides a reliable emergency exit solution with NO/NC/COM signal output, allowing it to integrate with compatible access control and door release systems. The red housing makes the emergency button easy to locate, while its compact 86 x 86 x 50 mm design allows for practical wall installation. It supports exit door and emergency door applications and is designed to operate across a wide range of environmental conditions.

Features

Hikvision DS-K7PEB Emergency Exit Button
This Hikvision emergency exit button is designed for situations where a straightforward physical release mechanism is required. The emergency break glass construction provides a clearly visible access point, while the NO/NC/COM output offers flexible connection options for access control systems.

It supports a maximum power supply of 36 VDC and 3 A, making it suitable for a range of low-voltage door release and access control installations. The DS-K7PEB can also operate in temperatures from -10 C to 55 C and relative humidity levels from 0 to 95 percent.

Key technical points:

• Model: Hikvision DS-K7PEB
• Part Number / SKU: HK-302901663
• Type: Exit and emergency button
• Emergency break glass design
• Colour: Red
• Signal output: NO/NC/COM
• Output contact: NO/NC/COM
• Maximum power supply: 36 VDC, 3 A
• Suitable door types: Exit door and emergency door
• Working temperature: -10 C to 55 C
• Working humidity: 0 to 95 percent relative humidity
• Dimensions: 86 mm x 86 mm x 50 mm
• Weight: 0.2 kg

Access Control and Emergency Door Release
The DS-K7PEB is a practical choice for access control installations requiring a dedicated exit or emergency release button. Its NO/NC/COM contact configuration provides compatibility with systems that use standard relay-based signal connections, helping installers integrate the button into a wider door access setup.

With its compact size, visible red finish and robust operating range, the Hikvision DS-K7PEB can be used in offices, commercial premises, industrial facilities and other locations where dependable emergency door release is required.

Compact Installation Design
Measuring 86 mm x 86 mm x 50 mm and weighing approximately 0.2 kg, the Hikvision DS-K7PEB is compact enough for convenient installation while remaining easy to identify during an emergency. The red colour helps distinguish the emergency exit control from standard access control equipment.

For ordering and product identification, the Hikvision DS-K7PEB is listed under part number / SKU HK-302901663.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-302901663
General
Power supply	Max. 36 VDC, 3 A
Working temperature	-10 degreesC to 55 degreesC (14 degreesF to 131 degreesF)
Working humidity	0 to 95% (relative humidity)
Dimensions	86 mm x 86 mm x 50 mm
	0.2 kg (0.44 lb)
Door type	Exit door, emergency,door
Signal output	NO/NC/COM
Exit Button/General
Output contact	NO/NC/COM
Suitable door	Exit door, emergency,door
