HK-302902420

Overview

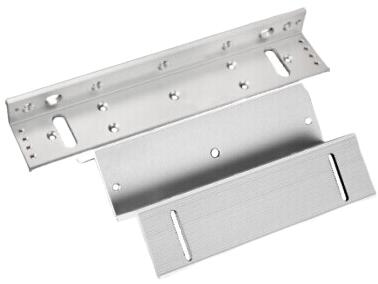

Hikvision DS-K4H450-LZ Pro Series Magnetic Lock Bracket
The Hikvision DS-K4H450-LZ Pro Series Magnetic Lock Bracket is designed for use with the K4H450 magnetic lock, providing a practical mounting solution for different door configurations. Its durable aluminum construction is suited to access control installations where a secure and reliable bracket is required.

Description

The Hikvision DS-K4H450-LZ is a magnetic lock bracket made for the K4H450 series. It combines an anodized aluminum shell with a high strength aluminum lock body featuring a sandblasted surface. The bracket is suitable for wooden doors, metal doors and narrow trim doors, making it a versatile choice for access control installations.

Features

Designed for K4H450 Magnetic Locks
The DS-K4H450-LZ provides the necessary bracket arrangement for installing a K4H450 magnetic lock. Its L-bracket and Z-bracket dimensions are designed to accommodate common door and frame configurations, helping provide a suitable mounting arrangement for different installation requirements.

The bracket is suitable for:

• Wooden doors
• Metal doors
• Narrow trim doors
• Hikvision K4H450 magnetic lock installations

Durable Aluminum Construction
The bracket uses an anodized aluminum shell for durability, while the lock body is manufactured from high strength aluminum with a sandblasted surface. This construction provides a robust mounting component for access control applications while maintaining a practical design for installation.

Dimensions and Technical Details

• Model: DS-K4H450-LZ
• Part Number / SKU: HK-302902420
• Product type: Pro Series magnetic lock bracket
• L-bracket dimensions: 265 mm x 72 mm x 45.2 mm
• Z-bracket dimensions: 185 mm x 70 mm x 61 mm
• Weight: 1.3 kg
• Shell material: Anodized aluminum
• Lock body material: High strength aluminum with sandblasted surface
• Suitable door types: Wooden door, metal door and narrow trim door
• Compatible magnetic lock: Hikvision K4H450

Practical Access Control Mounting
With its durable aluminum construction and compatibility with multiple door types, the Hikvision DS-K4H450-LZ offers a practical mounting solution for magnetic lock access control systems. The combination of L-bracket and Z-bracket dimensions allows the installation to be configured according to the door and frame arrangement.

For access control projects requiring a compatible mounting bracket for the Hikvision K4H450 magnetic lock, the DS-K4H450-LZ provides a purpose-designed solution with a strong aluminum construction and flexible door compatibility.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-302902420
General
Dimensions	L-bracket Dimension: 265 mm x 72 mm x 45.2 mm (10.43'' x 2.83'' x 1.78'')
	Z-bracket Dimension: 185 mm x 70 mm x 61 mm (7.28 x 2.76" x 2.40")
	Z-bracket Dimension: 185 mm x 70 mm x 61 mm (7.28 x 2.76" x 2.40")"
	1.3 kg (2.9 lb)
Material	Shell: Anodized aluminum
	Lock Body: High Strength Aluminum with the Surface Sandblast
Door type	Wooden Door, Metal Door, Narrow Trim Door
Bracket of Magnetic Lock/General
Suitable Door	Wooden Door, Metal Door, Narrow Trim Door
