Overview Summary
The Hikvision DS-K7P04 Exit & Emergency Button is a durable stainless steel solution for door access control in commercial and security installations. Its compact design is suitable for narrow doorframes and supports NO/NC/COM contacts with a 1A @ 30VDC current rating.
Designed for reliable everyday operation, the DS-K7P04 is suitable for offices, access-controlled entrances and other security applications in South Africa. Buy now or shop now for dependable door exit control.
Performance tier: Professional
Uses: door access control, emergency door release, office entrances, security systems, narrow doorframes Overview

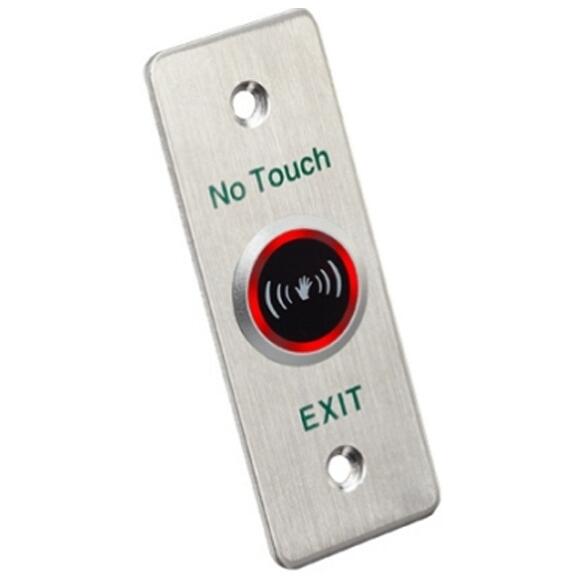

Hikvision DS-K7P04 Exit and Emergency Button
The Hikvision DS-K7P04 is a compact exit and emergency button designed for access control systems and door release applications. It uses a durable stainless steel panel and provides NO/NC/COM contacts, making it suitable for a wide range of access control installations. Its narrow 90 mm panel design is particularly well suited to narrow doorframes and confined mounting areas.
Description
The Hikvision DS-K7P04 Exit and Emergency Button provides a practical and durable way to control door release from the secure side of an access controlled door. The stainless steel construction is designed for regular use, while the NO/NC/COM contact arrangement allows flexible connection to compatible access control equipment. It has also passed a 1 million operation aging test, making it suitable for installations where the exit button is expected to be used frequently.
The DS-K7P04 is the newer version of the DS-K7P03 and is designed for use with all kinds of narrow doorframes. Its compact dimensions make installation easier where wall or frame space is limited.
Features
Hikvision DS-K7P04 for Access Control Systems
This Hikvision exit button can be integrated into access control systems to provide a convenient method of releasing a controlled door from inside the premises. The stainless steel panel provides a clean, professional appearance and is well suited to commercial, industrial and general security installations.
The button supports a 1 A at 30 VDC current rating and includes NO, NC and COM contacts for connection to compatible access control and door release equipment.
Key Product Details
- Model: Hikvision DS-K7P04
- Product type: Exit and emergency button
- Panel material: Stainless steel
- Contact type: NO/NC/COM
- Current rating: 1 A at 30 VDC
- Dimensions: 90 x 35 x 37.7 mm
- Weight: 0.18 kg
- Suitable doorframes: All kinds of narrow doorframes
- Aging test: Passed 1 million operation aging test
Compact Stainless Steel Door Exit Button
With dimensions of 90 x 35 x 37.7 mm, the DS-K7P04 is designed to fit installations where space is limited. The stainless steel panel adds durability while maintaining a compact form factor, making this Hikvision emergency exit button suitable for a variety of access control environments.
The operating temperature range of -20 C to 50 C and relative humidity range of 0 to 95% allow the button to be used in a broad range of indoor installation conditions.
Technical Details
- Working temperature: -20 C to 50 C
- Working humidity: 0 to 95% relative humidity
- Dimensions: 90 mm x 35 mm x 37.7 mm
- Dimensions in inches: 3.54 x 1.38 x 1.48
- Weight: 0.18 kg
- Panel material: Stainless steel
- Current rating: 1 A at 30 VDC
- Output contact: NO/NC/COM
Reliable Exit Button for Frequent Use
The Hikvision DS-K7P04 has completed a 1 million times aging test, supporting its use in access controlled areas where the exit button may be operated regularly. Its compact construction and flexible contact configuration make it a useful component for door access control and emergency exit applications.
For installations requiring a narrow, stainless steel access control exit button, the DS-K7P04 offers a practical combination of compact dimensions, flexible contacts and durable construction. The product part number / SKU is HK-302908147.
Applications
The DS-K7P04 can be used with access control and door release systems in offices, commercial buildings, industrial facilities, controlled entrances and other locations requiring an internal exit button. Its narrow design is especially useful when working with narrow doorframes or restricted mounting spaces.
Specifications
| ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | HK-302908147 |
| General |
| Working Temperature | -20 degreesC to 50 degreesC (-4 degreesF to 122 degreesF) |
| Working Humidity | 0 to 95% (relative humidity) |
| Dimensions | 90 mm x 35 mm x 37.7 mm (3.54" x 1.38" x 1.48") |
| Weight | 0.18 kg (0.40 lb) |
| Material | Panel: stainless steel |
| Exit Button/General |
| Current Rating | 1 A@30 VDC |
| Output Contact | NO/NC/COM contact |
| Aging Test | Already passed 1 million times aging test |
| Suitable Door | All kinds of narrow doorframes |
