Overview Summary
The Hikvision 64-channel 8K DeepinMind NVR is a high-performance video surveillance recorder designed for advanced security installations. It supports up to 64 IP cameras, resolutions up to 32 MP, 8K HDMI output and intelligent analytics including facial recognition, perimeter protection, video structuralisation, AcuSearch and ANPR.
With eight SATA interfaces supporting up to 16 TB per HDD and RAID 0, 1, 5, 6 and 10 options, this NVR is suited to demanding commercial and enterprise surveillance environments. Buy now for a powerful, scalable Hikvision security recording solution in South Africa, or shop now to upgrade your surveillance system.
Performance tier: Enterprise
Uses: IP camera recording, commercial security, enterprise surveillance, facial recognition, perimeter protection, ANPR, video analytics, security monitoring
Overview

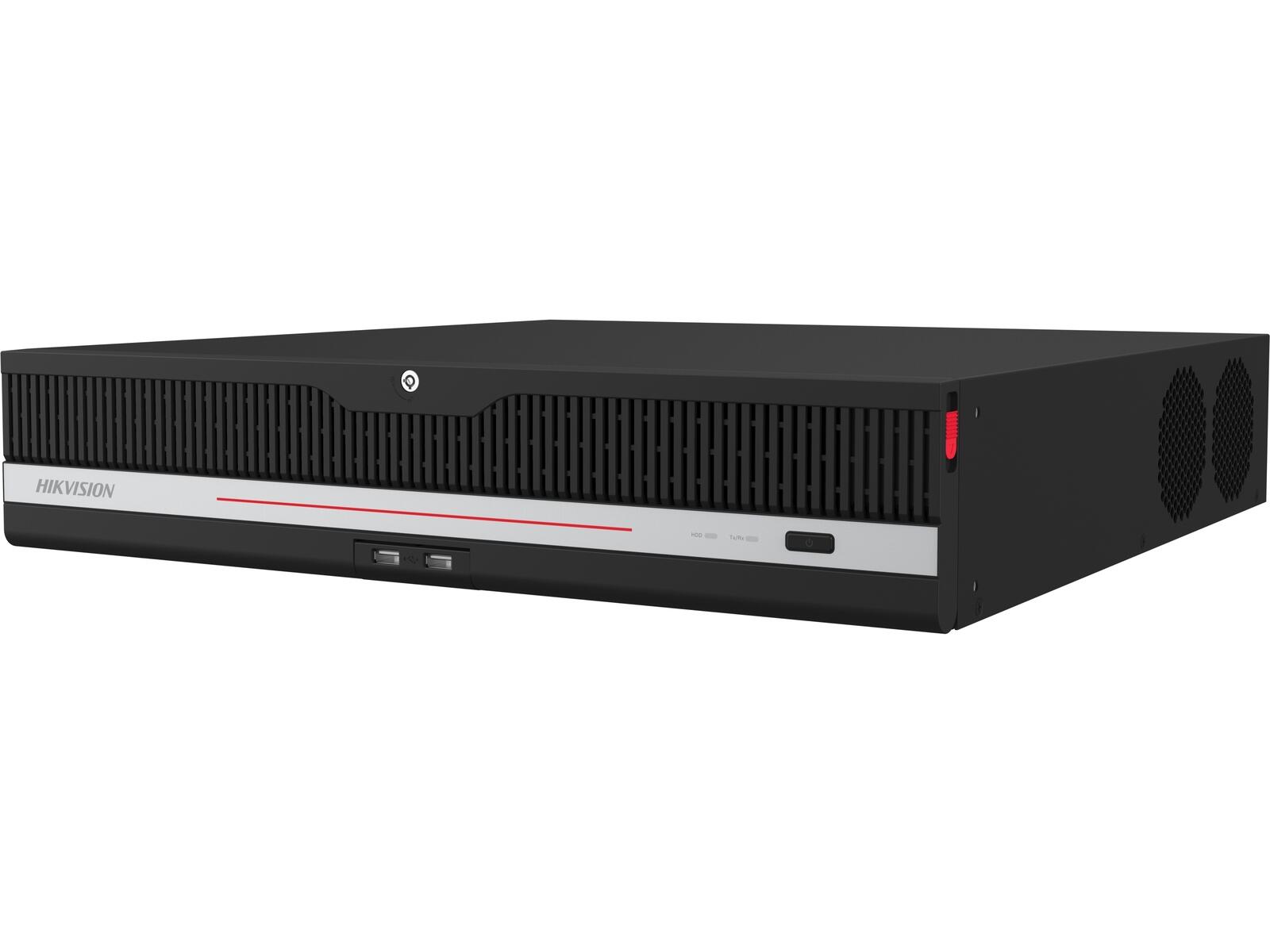

The Hikvision iDS-9664NXI-M8/X is a high-capacity 64-channel 2U 8K DeepinMind NVR designed for advanced IP video surveillance systems. It supports up to 64 IP cameras with resolutions up to 32 MP, providing a strong platform for large security installations that require high-resolution recording, intelligent video analysis and extensive storage capacity.
With DeepinMind intelligent analytics, the NVR supports facial recognition, perimeter protection, video structuralization and AcuSearch. It can also work with compatible cameras for advanced functions such as ANPR, people counting, motion detection and VCA. Dual intelligent processing engines allow the system to run adjustable intelligent algorithms for more flexible surveillance management.
Description
The Hikvision iDS-9664NXI-M8/X combines high-resolution 8K video output, advanced AI-powered surveillance analytics and extensive storage support in a 2U rackmount NVR. It supports up to 64 IP cameras, up to 32 MP recording resolution, 16-channel synchronous playback and multiple video decoding formats. The system also supports facial recognition, perimeter protection, video structuralization, AcuSearch and ANPR through the NVR and compatible cameras, making it suitable for demanding professional surveillance environments.
Features
Advanced Security Intelligence The DeepinMind platform provides multiple intelligent surveillance functions for identifying and managing security events. Facial recognition can be used for face comparison, face capture and face picture searches, while perimeter protection provides intelligent analysis for supported camera feeds.
AcuSearch helps locate relevant targets within recorded video, while video structuralization provides structured analysis of supported footage. Compatible cameras can further extend the system with ANPR, people counting, motion detection 2.0 and VCA functions.
Key intelligent functions include:
Facial recognition with support for up to 16-channel video stream recognition or up to 48-channel face picture recognition
Perimeter protection supporting up to 24 channels depending on resolution and processing mode
Video structuralization for up to 12 channels at 2 MP
AcuSearch support across camera channels, with up to 691,200 targets per day
ANPR support through compatible cameras
Face picture comparison at up to 32 pictures per second for NVR-based comparison
Face picture comparison at up to 48 pictures per second for captured camera images
Support for up to 32 face picture libraries
Face picture database capacity of up to 100,000 list pictures and up to 10,000 stranger pictures
64-Channel IP Video Surveillance The NVR provides 64 IP video inputs and supports cameras with resolutions up to 32 MP. With 400 Mbps incoming and outgoing bandwidth, it is designed to handle substantial amounts of high-resolution network video traffic.
Recording can be configured across a wide range of resolutions, from 32 MP and 24 MP through 12 MP, 8 MP, 6 MP, 5 MP, 4 MP and 1080p down to lower recording resolutions. The system supports H.265, H.265+, H.264 and H.264+ video formats for flexible camera compatibility and efficient video management.
8K Video Output The Hikvision iDS-9664NXI-M8/X provides high-resolution display connectivity for surveillance monitoring. HDMI 1 supports up to 8K resolution at 30 Hz, while HDMI 2 supports up to 4K resolution at 60 Hz. VGA outputs provide up to 1920 x 1080 at 60 Hz.
HDMI 1: Up to 7680 x 4320 at 30 Hz
HDMI 2: Up to 3840 x 2160 at 60 Hz
VGA 1 and VGA 2: Up to 1920 x 1080 at 60 Hz
HDMI 1/VGA 1 simultaneous output
HDMI 2/VGA 2 simultaneous output
1-channel BNC CVBS output
2-channel RCA audio output
1-channel RCA two-way audio
When HDMI 1 is configured for 8K output, the maximum resolution available from HDMI 2 is 1080p.
Powerful Video Decoding The NVR supports 16-channel synchronous playback and high-resolution decoding for demanding surveillance environments. Its decoding capacity includes:
2-channel at 32 MP, 30 fps
2-channel at 24 MP, 30 fps
4-channel at 16 MP, 30 fps
8-channel at 8 MP, 30 fps
16-channel at 4 MP, 30 fps
32-channel at 2 MP, 30 fps
Large Storage Capacity Eight SATA interfaces support 3.5-inch hard drives with capacity of up to 16 TB per HDD. The NVR also provides RAID0, RAID1, RAID5, RAID6 and RAID10 support for storage configurations suited to different surveillance requirements.
An additional eSATA interface provides further storage connectivity.
Network and Connectivity Two RJ-45 Gigabit Ethernet interfaces provide 10/100/1000 Mbps self-adaptive network connectivity. The NVR supports a broad range of network protocols and camera access standards, including ONVIF, RTSP, HTTP, HTTPS, TCP/IP, IPv4, IPv6, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI and UPnP.
The system supports up to 128 remote connections and provides ONVIF Profile S/G, SDK and ISAPI support for integration with compatible surveillance equipment and software.
Storage, Expansion and Interfaces The 2U rackmount chassis provides extensive connectivity for professional surveillance installations.
8 x SATA interfaces for 3.5-inch HDDs
Up to 16 TB per HDD
1 x eSATA interface
1 x RS-232
1 x RS-485 full-duplex
2 x USB 2.0 on the front panel
1 x USB 3.0 on the rear panel
16 alarm inputs and 9 alarm outputs
Controllable 12 VDC output for external alarm devices
1 x 12 VDC power output
Technical Details The Hikvision iDS-9664NXI-M8/X operates from a 100 to 240 VAC, 50 to 60 Hz power supply and has a rated consumption of up to 50 W without HDDs. It is designed to operate from -10 to 55 degrees C with 10 to 90% working humidity.
The unit measures 442 x 458 x 93 mm and weighs up to 10 kg without HDDs, making the 2U chassis suitable for rack-mounted professional surveillance environments.
Facial recognition, perimeter protection, video structuralization, AcuSearch
AI by Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
AcuSearch
By Camera
All channels, up to 691,200 targets/day
The camera should enable AcuSearch function
By NVR
Up to 8-ch, up to 691,200 targets/day
Perimeter Protection
By NVR
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model)
12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
By Camera
All channels (powered by Large Model)
Video Structuralization
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Face Picture Library
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison
16-ch
Comparison speed: 32 pictures per second
Target Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)
48-ch (24-ch for each engine)
Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance
Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
ANPR
By Camera
All channels
Plate Attributes
Plate number, license plate color, license plate type
Vehicle Attributes
Vehicle brand, vehicle color, vehicle type
Video and Audio
IP Video Input
64-ch
Up to 32 MP resolution
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz
HDMI 2 Output
4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz
*: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
