HK-314300270

Overview

RF Camera Module for Hikvision Detectors

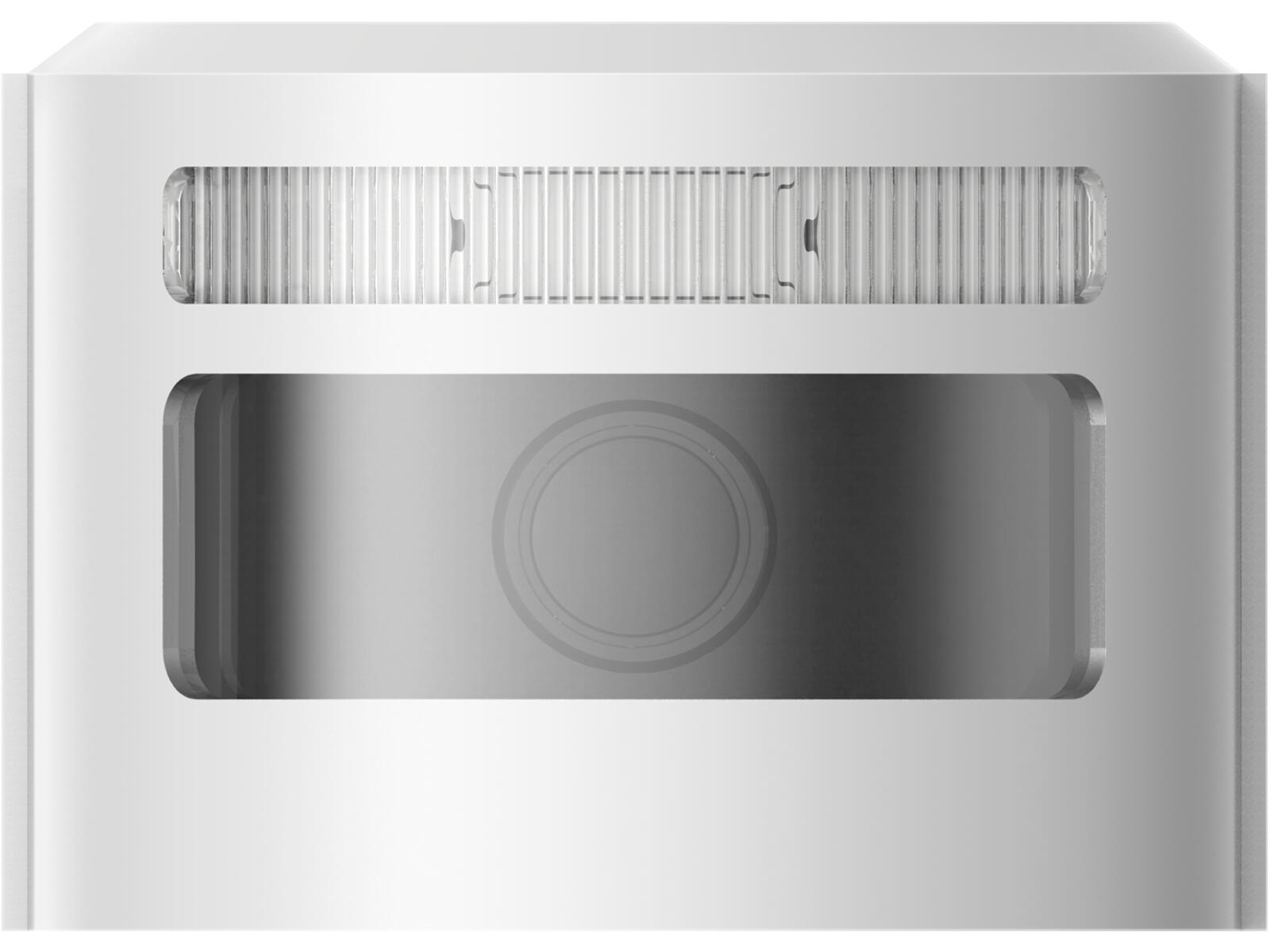

The Hikvision DS-PDCM15PF-IR RF Camera Module is designed for video verification and detection applications, providing image capture with infrared illumination for improved monitoring in low-light conditions. It combines a 1/2.7-inch Progressive Scan CMOS sensor with a 2.0 mm fixed lens to deliver clear images with a maximum resolution of 640 x 480.

Description

The DS-PDCM15PF-IR is a compact RF camera module designed to work with compatible Hikvision detectors for video verification. Its 2.0 mm fixed lens provides a suitable viewing angle, while 3D Digital Noise Reduction helps improve image clarity by reducing visual noise. The camera also includes infrared light for monitoring when ambient lighting is limited.

Installation is designed to be straightforward, and the camera angle can be adjusted to align with the angle of the TT Detector. With an IP66 protection rating, the module is built to provide protection against dust and water, making it suitable for demanding installation environments.

Features

Clear Image Capture and Video Verification
The camera uses a Progressive Scan CMOS sensor to capture images for verification and monitoring. Its infrared illumination helps maintain visibility in low-light conditions, while 3D Digital Noise Reduction supports cleaner image output.

Key imaging details include:

• 1/2.7-inch Progressive Scan CMOS sensor
• 2.0 mm fixed lens
• Maximum resolution of 640 x 480
• JPEG image type
• 3D Digital Noise Reduction
• Infrared light for low-light monitoring

Flexible Installation
The DS-PDCM15PF-IR is designed for easy installation with compatible Hikvision detector systems. The camera angle can be adjusted to match the angle of the TT Detector, helping provide more suitable image coverage after installation.

Built for Practical Security Applications
With video verification capability, infrared illumination and an IP66 protection level, this Hikvision RF camera module is suited to security and detection installations where reliable image capture is required. Its compact design and adjustable viewing direction make it practical for integration with compatible detector systems.

Technical Details

• Model: DS-PDCM15PF-IR
• Product type: RF Camera Module
• Detection method: Video verification
• Sensor: 1/2.7-inch Progressive Scan CMOS
• Lens: 2.0 mm fixed lens
• Maximum resolution: 640 x 480
• Image type: JPEG
• Noise reduction: 3D Digital Noise Reduction
• Illumination: Infrared light
• Protection level: IP66
• Installation: Easy installation
• Camera angle: Adjustable to fit the TT Detector angle
• Part Number / SKU: HK-314300270

Hikvision DS-PDCM15PF-IR for Security Systems
The Hikvision DS-PDCM15PF-IR RF Camera Module provides a practical solution for video verification, combining clear image capture, infrared illumination, noise reduction and adjustable positioning in a compact module. It is a suitable choice for compatible Hikvision detector installations requiring additional visual verification.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-314300270
Detection Performance
Detection Method	Video Verification
Feature
Digital Noise Reduction	3D
Focal length	2.0mm@F2.25
Video
Field Angle	137.2degrees(H), 80.1degrees(V)
Image Type	JPEG
Resolusion	640*480 , 320*240 , 160*120
Fill Light	Infrared Light
Fill Range	15m
Day/Night Switch	Auto
Interface
Communication Interface	1 12-Bit Data Interface
Electrical Characteristics
Power Supply	3 VDC
Power Consumption	1200mA
General
Operation Temperature	-25 degreesC to 60 degreesC (-13 degreesF to 140 degreesF)
Storage Temperature	-25 degreesC to 60 degreesC (-13 degreesF to 140 degreesF)
Operation Humidity	10% to 90%
IP Rate	IP66
Dimension(WxHxD)	74.1mm x 72.35mm x 53mm
Weight	155g
