HK-327800924

Overview

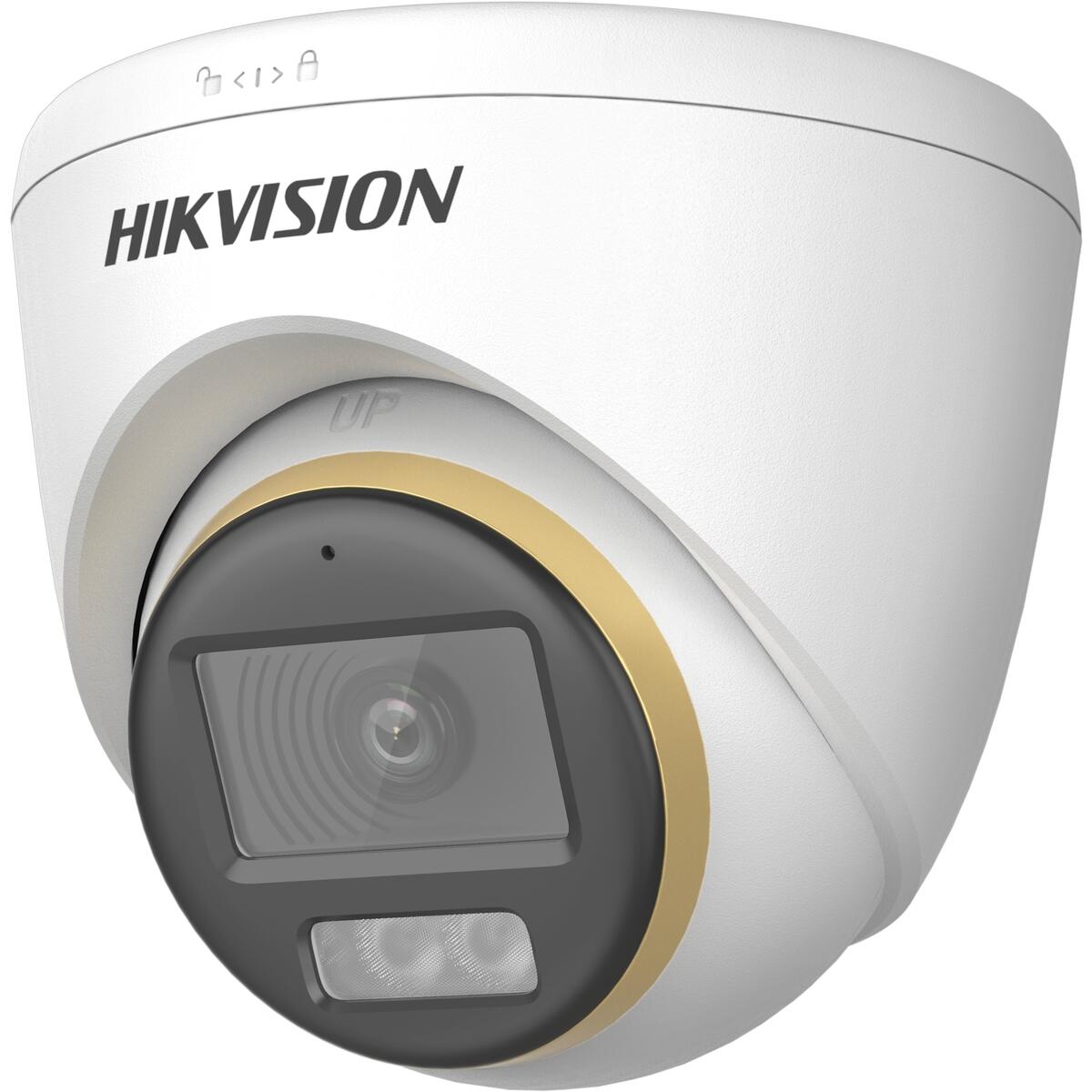

The Hikvision DS-2CE72DF3T-LFS is a 2MP ColorVu Dual-Light fixed turret security camera designed to provide clear, reliable surveillance during both daytime and nighttime. With 1920 x 1080 resolution, a wide-aperture F1.0 lens and flexible Smart-Hybrid lighting, it delivers full-color imaging around the clock while giving users the option of IR or white light for night monitoring.

Its 130 dB True WDR helps maintain image detail in scenes with strong backlighting, while 3D DNR reduces image noise for cleaner footage. The built-in microphone also provides high-quality audio over coaxial cable, making this Hikvision camera a practical choice for homes, businesses and other security installations.

Description

The Hikvision DS-2CE72DF3T-LFS combines ColorVu technology with dual-light illumination to improve visibility in challenging lighting conditions. White light can provide bright full-color night images up to 40 m, while IR illumination also reaches up to 40 m for situations where discreet nighttime monitoring is preferred.

The fixed turret design offers a compact and versatile installation option. With support for TVI, AHD, CVI and CVBS video signals through a single switchable output, the camera can be integrated into a range of compatible CCTV systems. IP67 water and dust resistance further supports reliable outdoor use.

Features

Clear 2MP Surveillance Imaging
The 2MP sensor captures video at up to 1920 x 1080 resolution, providing clear and detailed footage for everyday security monitoring. The F1.0 aperture allows more light to reach the sensor, supporting improved color imaging in low-light environments.

Key imaging capabilities include:

• 2MP resolution with 1920 x 1080 maximum image size
• 24/7 color imaging with F1.0 aperture
• 130 dB True WDR for strong backlight conditions
• 3D DNR for cleaner and sharper images
• Adjustable brightness, contrast and sharpness
• AGC, BLC, HLC and HLS image controls
• Anti-banding support
• Four programmable privacy masks

Dual-Light Night Vision
The Smart-Hybrid Light system provides flexible nighttime illumination. The camera supports both infrared and white-light illumination, allowing users to balance visibility and deterrence according to the installation environment.

• IR illumination distance up to 40 m
• White-light illumination distance up to 40 m
• Solid white-light alarm
• Full-color nighttime imaging with suitable illumination

Audio and CCTV System Compatibility
A built-in microphone enables audio capture and audio transmission over coaxial cable, adding another layer of information to compatible surveillance installations.

The camera also provides a switchable video output supporting four common analogue CCTV formats:

• TVI
• AHD
• CVI
• CVBS

This makes the DS-2CE72DF3T-LFS suitable for upgrading or configuring CCTV systems where different video technologies may be required.

Practical Turret Camera Design
The fixed turret format provides a compact solution for security camera installations in residential, commercial and other monitoring environments. Its IP67 rating helps protect the camera against dust and water, making it suitable for outdoor applications when correctly installed.

The camera also supports four programmable motion detection areas, allowing monitoring to be configured around important zones within the camera view.

Technical Details

• Model: DS-2CE72DF3T-LFS(3.6mm)(O-STD)
• Part Number / SKU: HK-327800924
• Resolution: 2MP, 1920 x 1080
• Lens: 3.6 mm fixed focal lens
• Day and night: ICR
• Signal system: PAL / NTSC
• WDR: 130 dB True WDR
• Noise reduction: 3D DNR
• IR range: Up to 40 m
• White-light range: Up to 40 m
• Audio: Built-in microphone and audio over coaxial cable
• Video output: Switchable TVI / AHD / CVI / CVBS
• Protection rating: IP67
• Motion detection: 4 programmable areas
• Privacy masking: 4 programmable masks

The Hikvision DS-2CE72DF3T-LFS offers a strong combination of 2MP Full HD imaging, ColorVu color night vision, dual-light illumination, WDR, audio support and multi-format CCTV compatibility. With the part number / SKU HK-327800924, it is a versatile choice for security installations requiring dependable day and night surveillance.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-327800924
Camera
Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) x 1080 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1 / 50,000 s , NTSC: 1/30 s to 1 / 50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0degrees to 360degrees, Tilt: 0degrees to 75degrees, Rotation: 0degrees to 360degrees
Signal System	PAL/NTSC
Slow Shutter	Max. 16 times
Lens
Lens Type	2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 105degrees, vertical FOV: 56degrees, diagonal FOV: 123degrees
	3.6 mm, horizontal FOV: 85degrees, vertical FOV: 46degrees, diagonal FOV: 98degrees
Lens Mount	M12
Microphone
Pickup Distance	In a radius of up to 5 m
Amount	1
Illuminator
Supplement Light Type	Smart, IR, White Light
Supplement Light Range	IR: Up to 40 m, White Light: Up to 40 m
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Image Settings	Brightness
	Contrast
	Sharpness
	Anti-banding
	AGC
Frame Rate	TVI: 1080p @25 fps/30 fps
	CVI: 1080p @25 fps/30 fps
	AHD: 1080p @25 fps/30 fps
	CVBS: PAL/NTSC
Wide Dynamic Range (WDR)	≥130 dB
Image Enhancement	WDR
	BLC
	HLC
	Global
	HLS
Privacy Mask	4 programmable privacy masks
Noise Reduction	3D DNR
White Balance	Auto
	Manual
Day/Night Mode	Auto/Color
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
Alarm	Solid Light Alarm(White Light)
Event
Motion Detection	4 programmable motion areas
General
Material	Main body: Metal, Enclosure: Plastic
Dimension	Ø109.98 mm x 98.27 mm (Ø4.33" x 3.87")
	Approx. 340 g (0.75 lb.)
Operating Condition	-40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Power	12 VDC ± 25%, max. 6.9 W
	*You are recommended to use one power adapter to supply the power for one camera.
Approval
Protection	IP67
