ME-10K-GA33 Mecer Galleon II 3P/3P 10K / Online Tower 3 phase UPS PF1.0

ME-10K-GA33

Click to view larger image

R 33,470.00

inc. VAT

In Stock

Add To Cart

Rate

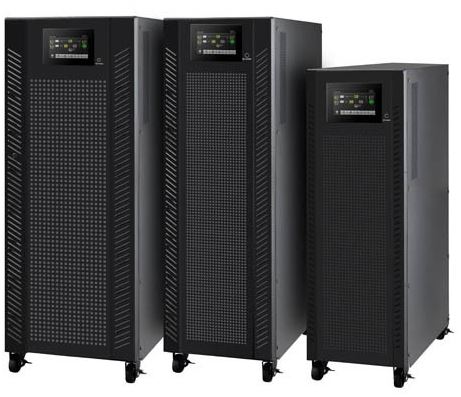

Mecer Galleon II 3P/3P 10K / Online Tower 3 phase UPS PF1.0

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

ME-10K-GA33

Inverters

Mecer

ME-10K-GA33 information and overview

Mecer Galleon II 3P/3P 10K / Online Tower 3 phase UPS PF1.0, 3-phase in / 3-phase out, Up to 6 units in parallel, Zero transfer time Inverter to bypass, Pure Sine Wave, 9 hours recover to 90% capacity typical recharge time, 12v/9ah battery Type *6 month warranty on battery

Specifications & more information about ME-10K-GA33, Inverters manufactured by Mecer

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Galleon II 3P/3P 10K-80K PF1, three-level inverter, common battery
Galleon II 3P/3P 10K-80K provides better output power factor up to 1.0 with higher performance and efficiency for critical applications. Its same as Galleon series with programmable power management outlets which can extend available battery time to critical devices by shutting down unnecessary devices. This Galleon II 3P/3P 10K-80K series is also suitable for laser printer and ultrasound system load.

Features:

True double-conversion
DSP technology guarantees high reliability
Output power factor 1.0
Active power factor correction in all phases
50hz/60hz frequency converter mode
ECO mode operation for energy saving
Emergency power off function (EPO)
Optional parallel operation
Smart battery charger design to optimize battery performance
Maintenance bypass available
Adjustable battery design

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ME-10K-GA33
MODEL	Galleon II-3/3 10K(L)
CAPACITY	10 KVA / 10 KW
PHASE	3-phase in/3-phase out
PARALLEL CAPABILITY	up to 6 units in parallel
INPUT
Voltage Range	190 - 520 VAC (3-phase) @ 50% load, 305 - 478 VAC (3-phase) @ 100% load
Nominal Voltage	3 x 380/ 400/ 415 VAC ( 3 Ph+N)
Frequency Range	40~70 Hz
Power Factor	>= 0.99 @ 100% load
OUTPUT
Output Voltage	3 x 360*/380/400/415 (3 Ph +N)
AC Voltage Regulation (Batt. Mode)	± 1%
Frequency Range (Batt. Mode)	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Transfer Time AC Mode to Battery Mode	zero
Transfer Time Inverter to Bypass	zero
Waveform (Batt. Mode)	Pure Sine Wave
Current Crest Ratio	3:1 (max.)
Harmonic Distortion	≦ 2 % THD (Linear Load), ≦ 5 % THD (Non-linear Load)
Frequency Range (Synchronized Range)	46~54Hz or 56~64Hz
Overload AC Mode	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Overload Battery Mode	100-110% for 60 min, 110-125% for 10 min, >150% immediately
EFFICIENCY
Battery Mode	96%
ECO Mode	99%
AC Mode	96%
BATTERY
Model-Battery Type	Depending on the capacity of external batteries
Model-Charging Current (max.)	1A ~ 12A (Adjustable)
Model-Charging Voltage	+/-136.5 VDC ± 10%
Model-Numbers	(10+10) pcs
Battery Type	12V/9Ah
Charging Current (max.)	1A~12A (Adjustable)
Charging Voltage	+/-136.5 VDC ± 10%
Numbers	(10+10)pcs
Typical Recharge Time	9 hours recover to 90% capacity
INDICATORS
LCD Panel	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ENVIRONMENT
Operating Temperature	0~40°C
Operating Humidity	<95% and non-condersing
Noise Level	Less than 55dB @ 1 Meter
PHYSICAL
Standard Model Dimension, D X W X H (mm)	630 x 250 x 826
Standard Model Net Weight (kgs)	124
Long-run Model Dimension, D X W X H (mm)	630 x 250 x 826
Long-run Model Net Weight (kgs)	28
MANAGEMENT
Optional SNMP	Power management from SNMP manager and web browser
Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7 / / / 8 / / / 10, Linux, and MAC
