MK-RBLHGG 5ACD XL4

Overview

The MikroTik LHG XL 5 ac is a high-powered 5GHz outdoor wireless CPE designed for long-range connectivity, point-to-point wireless links and demanding network installations. With a dual-chain 27dBi integrated grid antenna, 802.11ac support and Gigabit Ethernet, it delivers reliable wireless performance over extended distances while maintaining a compact and practical outdoor design.

Description

The MikroTik LHG XL 5 ac combines a high-gain 27dBi antenna with 5GHz 802.11ac wireless technology to provide a cost-effective solution for long-distance network connections. Its integrated dual-polarisation grid antenna helps focus the wireless signal, making it well suited to point-to-point links and use as a long-range CPE.

The device includes a Gigabit Ethernet port, allowing the wired connection to take full advantage of the speeds available from 802.11ac wireless. Support for the MikroTik Nv2 TDMA protocol also makes the LHG XL 5 ac suitable for outdoor wireless deployments where efficient communication over longer distances is important.

Features

MikroTik LHG XL 5 ac for Long Range Wireless Links
Designed for outdoor use, the LHG XL 5 ac provides a practical way to establish high-performance 5GHz wireless connections without the need for a separate external antenna. The 27dBi integrated grid antenna provides strong directional gain, making the unit particularly useful for connecting buildings, remote network locations and other sites where conventional WiFi equipment may not provide sufficient range.

The dual-chain wireless design supports improved throughput and stable communication, while the directional antenna helps concentrate the wireless signal towards the intended connection.

Key Technical Details

• 5GHz 802.11ac wireless technology with 2 chains
• 27dBi integrated dual-polarisation grid antenna
• Long-range outdoor CPE design
• Suitable for point-to-point wireless links
• Supports MikroTik Nv2 TDMA protocol
• 1 x Gigabit Ethernet port
• 716MHz quad-core CPU
• 256MB RAM
• 16MB storage
• Passive PoE power
• RouterOS Level 3
• Integrated high-gain directional antenna

Outdoor 5GHz CPE Performance
The combination of 5GHz 802.11ac wireless and a 27dBi antenna gives the LHG XL 5 ac the directional performance needed for longer wireless connections. It can be deployed as a CPE or used as part of a point-to-point bridge, providing a focused wireless connection between compatible network locations.

The Gigabit Ethernet interface is another important advantage, particularly for installations where wireless throughput needs to be transferred efficiently to the wired network. The unit is designed around MikroTik RouterOS and includes Level 3 functionality for flexible network deployment.

Hardware and Network Connectivity
Inside the LHG XL 5 ac is a 716MHz quad-core CPU with 256MB of RAM and 16MB of storage. The single Gigabit Ethernet port provides a fast wired connection while passive PoE simplifies power delivery during installation.

The integrated antenna design also reduces the number of separate components required for a long-range wireless installation, helping create a cleaner and more straightforward outdoor deployment.

Part Number and Model
Part Number / SKU: MK-RBLHGG 5ACD XL4

Model: RBLHGG-5acD-XL

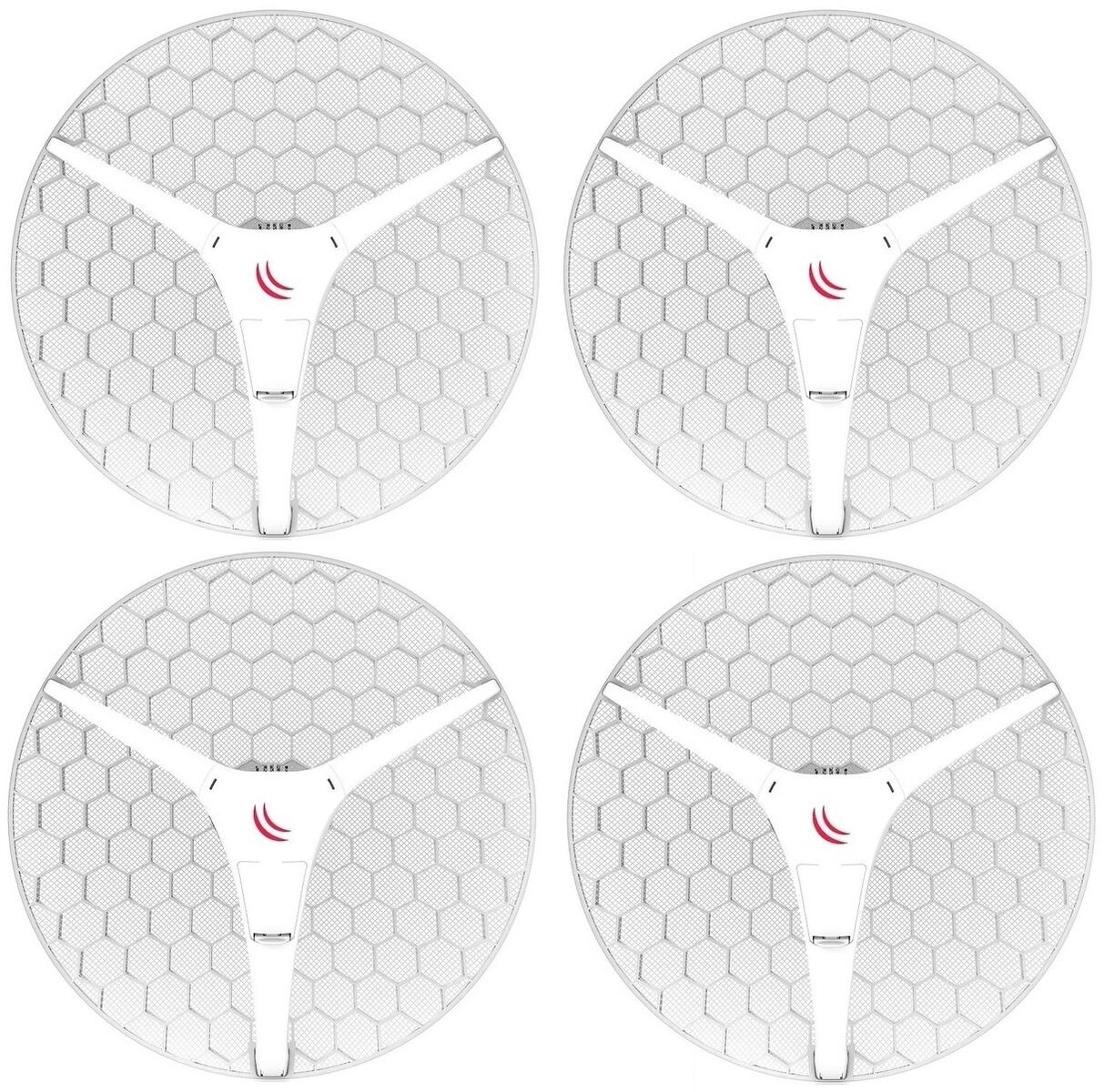

The MikroTik LHG XL 5 ac is supplied as a 4-pack under the listed SKU, making it a practical option for installations requiring multiple long-range 5GHz wireless units.

Recommended Applications
The LHG XL 5 ac is well suited to point-to-point wireless bridges, long-distance network connections, outdoor CPE deployments and connecting separate buildings or remote network locations. Its high-gain directional antenna makes it particularly useful where focused wireless coverage is required rather than broad-area WiFi.

Why Choose the LHG XL 5 ac
With its 27dBi antenna gain, 5GHz 802.11ac support, Gigabit Ethernet interface and MikroTik RouterOS platform, the LHG XL 5 ac provides a capable long-range wireless networking solution. The combination of integrated antenna technology, efficient hardware and passive PoE makes it suitable for professional outdoor network deployments where distance, directional performance and reliable connectivity are important.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MK-RBLHGG 5ACD XL4
Specifications
Product code	RBLHGG-5acD-XL
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	Ø 550 x 245 mm
License level	3
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40degreesC .. +70degreesC
Powering
Max Power consumption	8W
PoE in	Passive PoE
PoE in input Voltage	10-30 V
Number of DC inputs	1 (PoE-IN)
Wireless
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11ac
Antenna gain dBi for 5 GHz	27
Wireless 5 GHz chip model	IPQ-4018
Ethernet
10/100/1000 Ethernet ports	1
