Overview Summary
The MSI MPG X870E Edge Ti WiFi AM5 ATX motherboard is built for gamers and PC enthusiasts seeking top-tier performance. It supports AMD Ryzen 7000, 8000, and 9000 Series processors, DDR5 memory, PCIe 5.0, and Wi-Fi 7 for lightning-fast connectivity. With multiple USB 40Gbps Type-C ports, 4 M.2 slots, and immersive 7.1-channel audio, this motherboard ensures smooth gaming, streaming, and content creation experiences. Shop now to build a high-performance system that delivers reliability and speed.
Performance tier: Enthusiast
Uses: Gaming, Content creation, Streaming, High-performance computing, PC builds
Overview

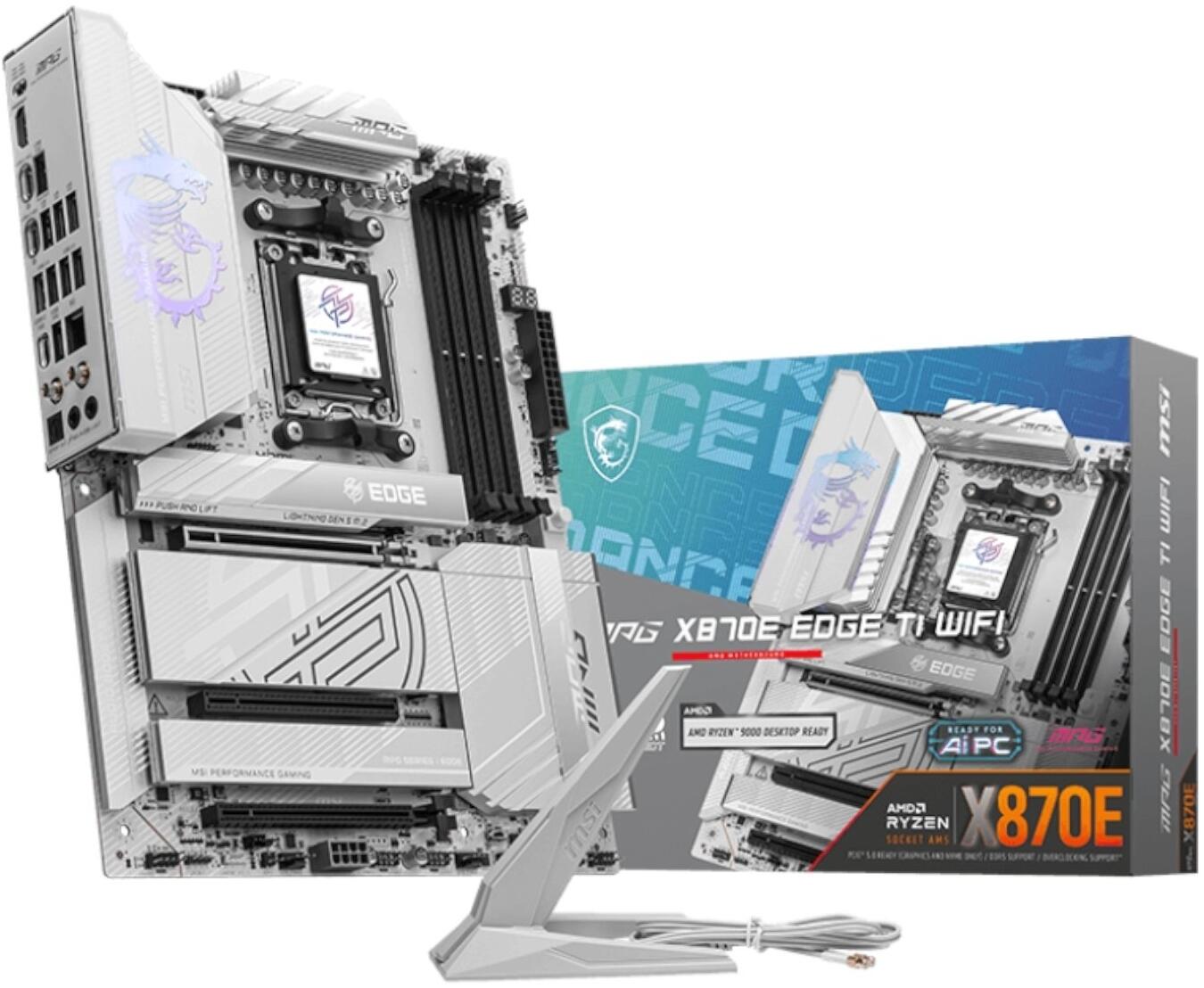

MSI MPG X870E EDGE TI WIFI AM5 ATX DDR5 Gaming Motherboard The MSI X870E EDGE TI WIFI AM5 ATX DDR5 Gaming Motherboard is designed for gamers and PC enthusiasts who demand high performance and striking aesthetics. Built for the latest AMD Ryzen 7000, 8000, and 9000 Series processors, this motherboard combines advanced connectivity, next-generation speed, and reliable power delivery. Its white-themed design and customizable Mystic Light RGB make it a centerpiece in any build, while engineering innovations ensure smooth installation and maximum stability for gaming, streaming, and content creation.
Description
This motherboard offers Wi-Fi 7, 5G LAN, USB 40Gbps Type-C, and full PCIe 5.0 support for ultra-fast data transfer and connectivity. It includes 4 M.2 slots, 4 SATA 6G ports, dual Type-C display outputs, and 7.1-channel high-definition audio for immersive multimedia experiences. The 14+2+1 Duet Rail Power System and advanced cooling design support overclocking and high-performance workloads. EZ DIY tools like EZ PCIe Release and EZ M.2 Clip II make installation hassle-free, while the pre-installed I/O shield ensures a secure setup.
Features
Optimized Performance and Power Delivery The MSI X870E EDGE TI WIFI is equipped with a 14+2+1 Duet Rail Power System with 80A Smart Power Stages, dual 8-pin CPU connectors, and Core Boost technology. Enlarged heatsinks with heat pipes and 7W/mK MOSFET thermal pads keep the system cool even during intense gaming or content creation. Memory Boost technology maximizes DDR5 performance up to 8400+ MT/s (OC), offering high bandwidth, low latency, and stable operation for demanding tasks.
Advanced Storage and Expansion Options With 4 M.2 slots supporting PCIe 5.0 x4, RAID 0/1/10 configurations, and multiple PCIe slots, this motherboard is ideal for high-speed storage and versatile expansion. PCIe 5.0 and Lightning Gen 5 M.2 provide next-gen performance for graphics cards and SSDs, ensuring future-proof capabilities.
Connectivity and Networking Experience seamless connectivity with USB4, USB 20Gbps Type-C, USB 10Gbps Type-A and Type-C, and USB 5Gbps Type-A ports. Networking is handled by Realtek 8126 5G LAN and Wi-Fi 7 for fast, reliable connections. Bluetooth support and multiple display outputs, including HDMI and dual Type-C, provide flexibility for gaming, work, and streaming setups.
Immersive Audio for Gaming and Content Creation Equipped with the Realtek ALC4080 codec and Audio Boost 5, this motherboard delivers 7.1-channel HD sound for realistic and immersive audio. Optical S/PDIF out and high-performance audio connectors enhance your gaming or multimedia experience.
Easy Installation and Customization EZ DIY tools like EZ PCIe Release, EZ M.2 Clip II, EZ M.2 Shield Frozr II, and EZ Antenna simplify upgrades and maintenance. The pre-installed I/O shield and included accessories, such as SATA cables, EZ front panel cable, and USB drive, ensure a smooth build process. Mystic Light RGB allows millions of color combinations and effects for a fully personalized system.
What's Included in the Box
MSI MPG X870E EDGE TI WIFI AM5 ATX DDR5 Gaming Motherboard - White x1
EZ Wi-Fi Antenna x1
M.2 Plate Screw
EZ M.2 Clip II Remover x1
1 to 3 EZ Conn-Cable (V2 ) x1
USB Drive x1
SATA Cables x2
EZ Front Panel Cable x1
Quick Install Guide x1
Key Advantages at a Glance
Supports AMD Ryzen 9000, 8000, and 7000 Series processors
DDR5 memory support up to 8400+ MT/s (OC)
Advanced cooling and 14+2+1 power delivery system
Next-gen connectivity with USB4, USB 40Gbps Type-C, Wi-Fi 7, and 5G LAN
Easy installation with EZ DIY tools
High-speed storage and PCIe 5.0 support
Studio-grade audio with 7.1-channel support and Audio Boost 5
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8400+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard only have single-sided latche.
Onboard Graphics
1x HDMI
Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz
2x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Audio
Realtek ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2 slot
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
* The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
5x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
LAN
1x Realtek 8126 5G LAN
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
