NET-TL-ER707-M2 TP-Link ER707-M2 Omada Multi-Gigabit VPN Router

computers

NET-TL-ER707-M2

computers
NET-TL-ER707-M2
R 2,200.00
inc. VAT
In Stock

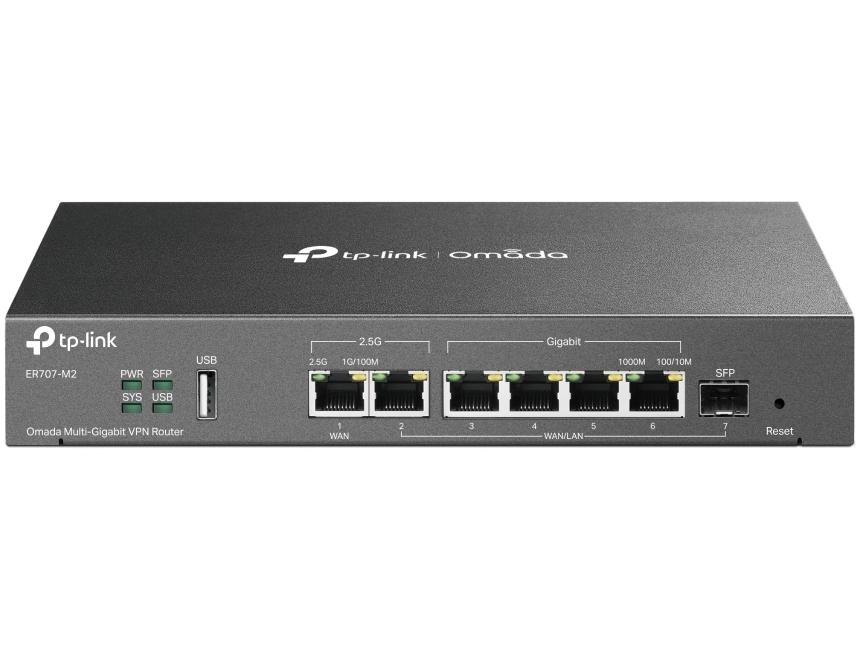

TP-Link ER707-M2 Omada Multi-Gigabit VPN Router
Images are for illustrative purposes and actual product may differ.
NET-TL-ER707-M2 image 1NET-TL-ER707-M2 image 2NET-TL-ER707-M2 image 3



NET-TL-ER707-M2

Network: VPN routers (wired)

TP-link


NET-TL-ER707-M2 information and overview
TP-Link ER707-M2 Omada Multi-Gigabit VPN Router, 1 x 2.5G RJ45 WAN Port, 1x 2.5G RJ45 WAN/LAN Port, 1x Gigabit SFP WAN/LAN Port, 4x Gigabit RJ45 WAN/LAN Ports, 1x USB 2.0 Port, Fanless, Load balance, Highly Secure VPN



Specifications & more information about NET-TL-ER707-M2, Network: VPN routers (wired) manufactured by TP-link
Specifications & downloads View specification Printable PDF
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview

ER707-M2
Omada Multi-Gigabit VPN Router

  • Two 2.5G Ports : 1x 2.5G WAN and 1x 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
  • Up to 6 WAN Ports : 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
  • Highly Secure VPN : Enterprise-standard SSL/IPSec/GER /PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
  • Integrated into Omada SDN : Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, Intelligent Monitoring, and more.
  • Centralized Management : Cloud access and Omada app provide the utmost in management convenience.
  • Extensive Security Features : Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.

Features

High-Performance and Ultra-Secure 2.5G Business Router
Omada Multi-Gigabit VPN Router

  • Centralized Management
  • 2.5 Gbps Port
  • Up to 6 WAN Ports
  • Load Balance
  • SSL/IPSec/GER /PPTP/L2TP VPN
  • Multi-Net DHCP
  • Powerful Firewall
  • Omada App

Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.

6x WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6x WAN SFP and RJ45 ports, ER707-M2 supports various internet access. Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.

Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.

Internet Access Management Strategy
Standardize users' online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Omada SDN-The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code NET-TL-ER707-M2
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering WEB Group Filtering
URL Filtering
Web Security
ARP Inspection Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface 1 x 2.5G RJ45 WAN Port
1 x 2.5G RJ45 WAN/LAN Port
1 x Gigabit SFP WAN/LAN Port
4 x Gigabit RJ45 WAN/LAN Ports
1 x USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button
Power Supply 12V/1.5A Adapter
PoE Budget -
Flash 128MB NAND
DRAM 1 GB DDR4
LED PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Desktop/Wall Mounting
Max Power Consumption 14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected)
PERFORMANCE
IPS Throughput TCP: 208 Mbps
UDP: 161 Mbps
DPI Throughput TCP: 1823 Mbps
UDP: 1272 Mbps
Concurrent Session 500000
New Sessions /Second 4200
NAT (Static IP) 2364.45 Mbps / 2343.28 Mbps
NAT(DHCP) 2364.24 Mbps / 2326.21 Mbps
NAT(PPPoE) 2350.93 Mbps / 2125.83 Mbps
NAT (L2TP) 1249.04 Mbps / 831.12 Mbps
NAT (PPTP) 1169.23 Mbps / 1175.52 Mbps
IPsec VPN Throughput ESP-MD5-AES256: 537.12 Mbps
ESP-SHA1-AES256: 754.65 Mbps
L2TP VPN Throughput Unencrypted: 1442.65 Mbps
Encrypted: 346.43 Mbps
SSL VPN Throughput 142.99 Mbps
66 Byte Packet forwarding rate 1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate 2461.18 Mbps / 2457.32 Mbps
BASIC FUNCTIONS
WAN Connection Type IPv4_Static IP
IPv4_Dynamic IP
IPv4_PPPOE
IPv4_L2TP
IPv4_PPTP
IPv6_PPP
IPv6_DHCPv6
IPv6_Static IP
IPv6_6in4
IPv6_Pass-Through
Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address
DHCP DHCP Server/Client
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6 WAN Connection
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
Advanced Routing Static Routing
Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-Net NAT
Port Forwarding
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Security Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering
Web Group Filtering
URL Filtering
Web Security
ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Access Control
Source/Destination IP Based Access Control
Session Limit IP-based Session Limit
VPN
IPsec VPN 100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN PPTP VPN Server
PPTP VPN Clients (12)
60 Tunnels (Shared with L2TP)
PPTP with MPPE Encryption
L2TP VPN L2TP VPN Server
L2TP VPN Clients (12)
60 Tunnels (Shared with PPTP)
L2TP over IPSec
OpenVPN OpenVPN Server
OpenVPN Clients (6)
66 OpenVPN Tunnels
AUTHENTICATION
Web Authentication No Authentication
Simple Password
Hotspot (Local User/Voucher* /SMS*/Radius*)
External Radius Sever
External Portal Sever
Facebook
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHERS
Certification CE, FCC, RoHS
Package Contents ER707-M2
Power Adapter
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7 / 8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0-40 degreesC (32-104 degreesF)
Storage Temperature: -40-70 degreesC (-40-158 degreesF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% non-condensing
