NS-ST3105GC

Overview

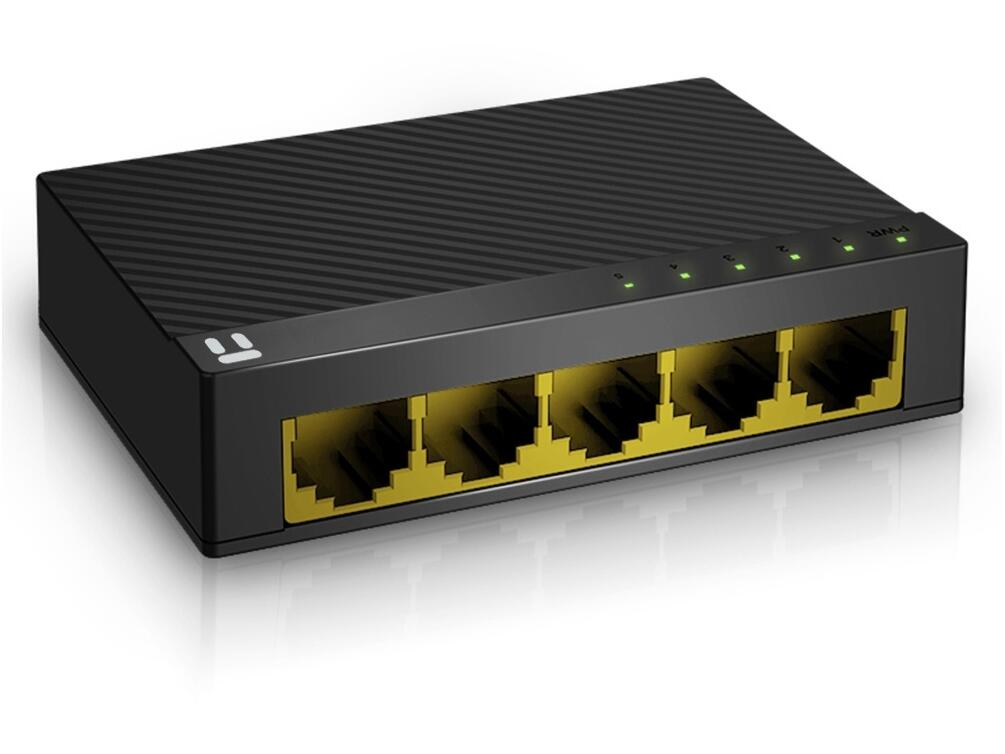

Netis ST3105GC 5 Port Gigabit Ethernet Switch, 5x 10/100/1000M RJ45 Ports
The Netis ST3105GC provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. This Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network. It will boost your network performance with up to 2000Mbps full duplex data transfer speed.

Description

The Netis ST3105GC is a compact 5 port Gigabit Ethernet switch designed for homes, offices, small businesses and other network installations that need a simple way to expand wired connectivity. With five Gigabit Ethernet ports, the switch supports fast data transfers while Auto-Negotiation and Auto MDI/MDIX make installation straightforward without requiring crossover cables.

The switch also provides a 10Gbps switching fabric capacity, supports jumbo packets up to 9216 bytes and includes a 2K MAC address table with automatic MAC address learning and aging. Its plug-and-play design requires no configuration, making the ST3105GC a practical choice when you need additional Gigabit network ports without unnecessary complexity.

Features

Netis ST3105GC Gigabit Network Connectivity
The ST3105GC supports up to five wired network connections, with each RJ45 port capable of 10Mbps, 100Mbps or 1000Mbps operation. Auto-Negotiation automatically selects the appropriate connection speed, while Auto MDI/MDIX removes the need to determine whether standard or crossover network cables are required.

Key connectivity points include:

• 5 x 10/100/1000Mbps Gigabit RJ45 Ethernet ports
• Auto-Negotiation for automatic link speed selection
• Auto MDI/MDIX on all ports
• Up to 2000Mbps full duplex data transfer
• 10Gbps switching fabric capacity

Efficient Data Handling
For busy local networks, the Netis ST3105GC provides IEEE 802.3x flow control in Full Duplex mode and backpressure support in Half Duplex mode. It also supports 9216-byte jumbo packet forwarding at wired speed, helping accommodate larger data transfers across compatible network equipment.

The 2K MAC address table allows the switch to store network device addresses, while automatic MAC address learning and aging help maintain the table without manual configuration.

Easy Plug and Play Installation
The ST3105GC is designed for straightforward deployment. Connect the switch to your network and attach Ethernet devices to the available ports without needing to configure complicated settings. LED indicators provide a quick way to check connection and activity status for basic network diagnostics.

This makes the switch suitable for expanding wired connections for computers, printers, access points, network storage and other Ethernet-enabled devices.

Power Saving Design
Green Ethernet technology helps reduce power consumption when full network performance is not required. This can make the Netis ST3105GC a practical option for installations where the switch remains powered for extended periods.

Part Number and SKU
The Part Number / SKU for this Netis 5 Port Gigabit Ethernet Switch is NS-ST3105GC. This identifier can be used when ordering, quoting or matching the product with the required network equipment.

Technical Details

• Model: Netis ST3105GC
• Product type: 5 Port Gigabit Ethernet Switch
• Network ports: 5 x 10/100/1000M RJ45
• Switching capacity: 10Gbps
• MAC address table: 2K
• Jumbo packet support: Up to 9216 bytes
• Flow control: IEEE 802.3x Full Duplex and backpressure Half Duplex
• Network functions: Auto-Negotiation and Auto MDI/MDIX
• Power management: Green Ethernet technology
• Status indicators: LED indicators
• Installation: Plug and play
• Part Number / SKU: NS-ST3105GC

A Practical Gigabit Switch for Small Networks
With five Gigabit Ethernet ports, a 10Gbps switching capacity and automatic network management functions, the Netis ST3105GC offers a straightforward solution for expanding a wired network. Its compact design, plug-and-play operation and power-saving technology make it well suited to everyday home and small office networking requirements.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	NS-ST3105GC
Hardware
Interface	5* 10/100/1000M TX ports
LED	PWR, LAN1-LAN5
Power Supply	DC 5V/600mA (Output)
Dimensions (L x W x H )	85 x 75x 22mm
Cabling Type	10Base-T: UTP Cat.3 or up
	100Base-TX: UTP Cat.5 or up
	1000Bast-T: UTP Cat.5 or up
Software
Standard	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T
Access Method	CSMA/CD
Transmission Method	Store and Forward
Switch Architecture	Non-blocking
Data Transmission Rate	10/100Mbps(Half-duplex)
	20/200/2000Mbps(Full-duplex)
MAC Address Table	2K
Others
Certification	FCC, CE
Environment	Operating Temperature: 0degreesC~40degreesC
	Storage Temperature: -40degreesC~70degreesC
	Operating Humidity: 10%~90%RH non-condensing
	Storage Humidity: 5%~90%RH non-condensing
Package	1* ST3105GC
	1* 5V/600mA Power Adapter
	1* Quick Installation Guide
