P502-010

Overview:

Allows a high-resolution connection between your VGA-enabled computer and monitor up to 10 ft. apart with no ghosting.

•
  Supports video resolutions up to 2048 x 1536, including 1080p
• Made from mini-coaxial (RGB) and paired video wire
• Foil and braid shielding blocks hazardous EMI/RFI line noise
• Gold-plated connectors and contacts for maximum conductivity
• Integral strain relief protects against cable stress and cracking

Features:

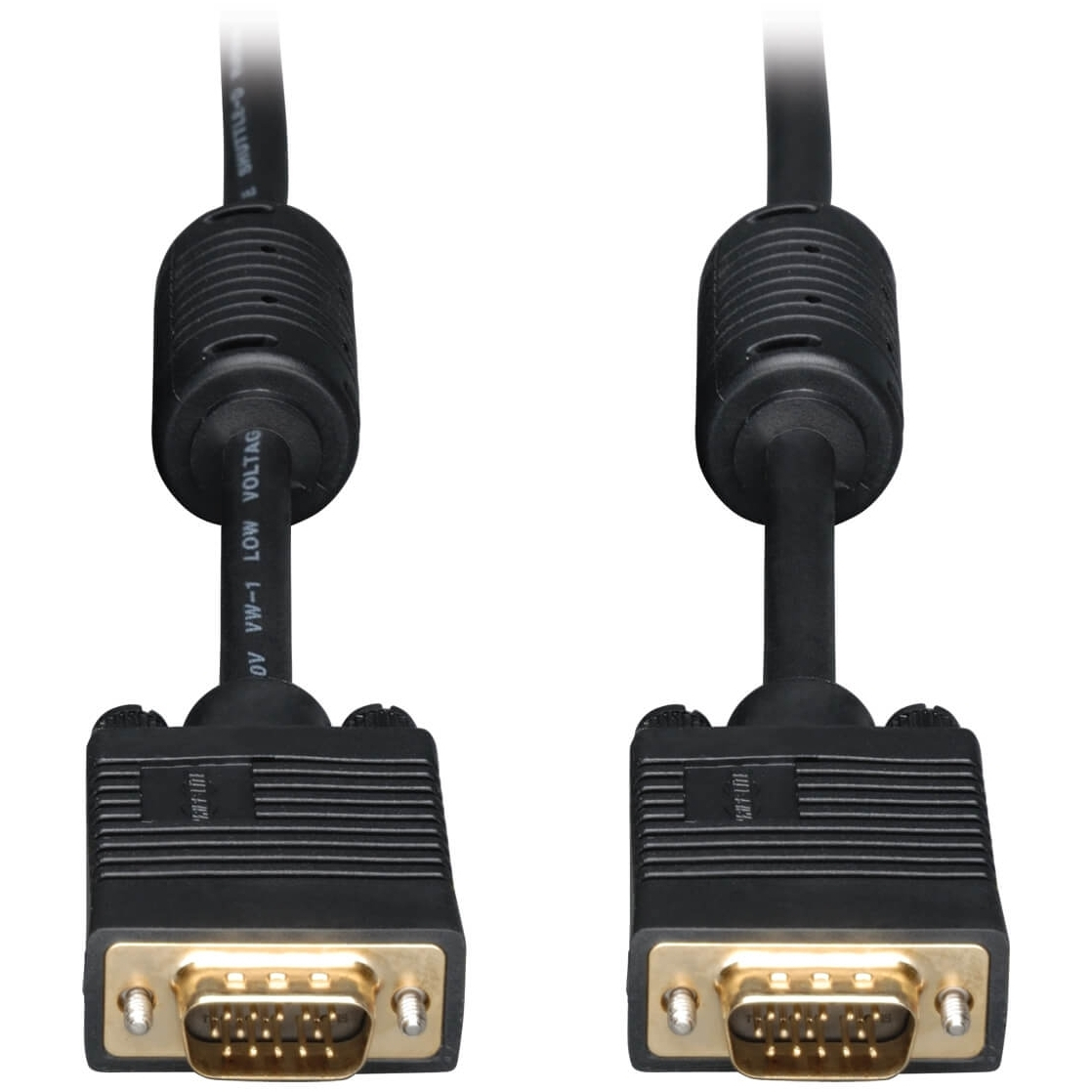

The P502-010 VGA Coaxial High-Resolution Monitor Cable (M/M) allows you to connect your VGA-enabled computer and monitor up to 10-ft. (3.05 m) apart. Constructed from mini-coaxial (RGB) and paired video wire, it supports video resolutions up to 2048 x 1536, including 1080p, with no ghosting.

Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Molded gold-plated HD15 male connectors with gold-plated contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Allows Connection Between VGA-Enabled Computer and Monitor Up to 10-ft. (3.05 m)

• Supports video resolutions up to 2048 x 1536, including 1080p
• Made from mini-coaxial (RGB) and paired video wire
• Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
• Molded gold-plated HD15 male connectors and contacts provide maximum conductivity and minimize data loss
• Integral strain relief protects cable and connectors from stress and cracking
• Rugged PVC jacket designed for long life

System Requirements

• Display device with HD15 input
• Computer with HD15 output

Package Includes

• P502-010 VGA Coaxial High-Resolution Monitor Cable (M/M), 10-ft. (3.05 m)

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	P502-010
OVERVIEW
UPC Code	37332146939
Product Type	Passive Cable
Technology	Coax , VGA/SVGA
Cable Type	Passive
CONNECTIONS
Side A - Connector 1	HD15 (MALE)
Side B - Connector 1	HD15 (MALE)
PHYSICAL
Color	Black
Cable Jacket Color	Black
Cable Length (ft.)	10
Cable Length (in.)	120
Shipping Dimensions (hwd / in.)	8.00 x 10.00 x 0.50
Shipping Weight (lbs.)	0.8
Unit Dimensions (hwd / in.)	8.000 x 10.000 x 0.500
ENVIRONMENTAL
Operating Temperature Range	14degrees to 122degreesF (-10degrees to 50degreesC)
Storage Temperature Range	5degrees to 140degreesF (-15degrees to 60degreesC)
Relative Humidity	0% -90%, Non-condensing
STANDARDS & COMPLIANCE
Product Compliance	RoHS
