P581-010-VGA-V2 Eaton Tripp Lite series DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M)

P581-010-VGA-V2

Click to view larger image

R 577.00

inc. VAT

In Stock

⚠ Stock is expected but not confirmed - please wait for an email confirming before paying.

Add To Cart

Rate

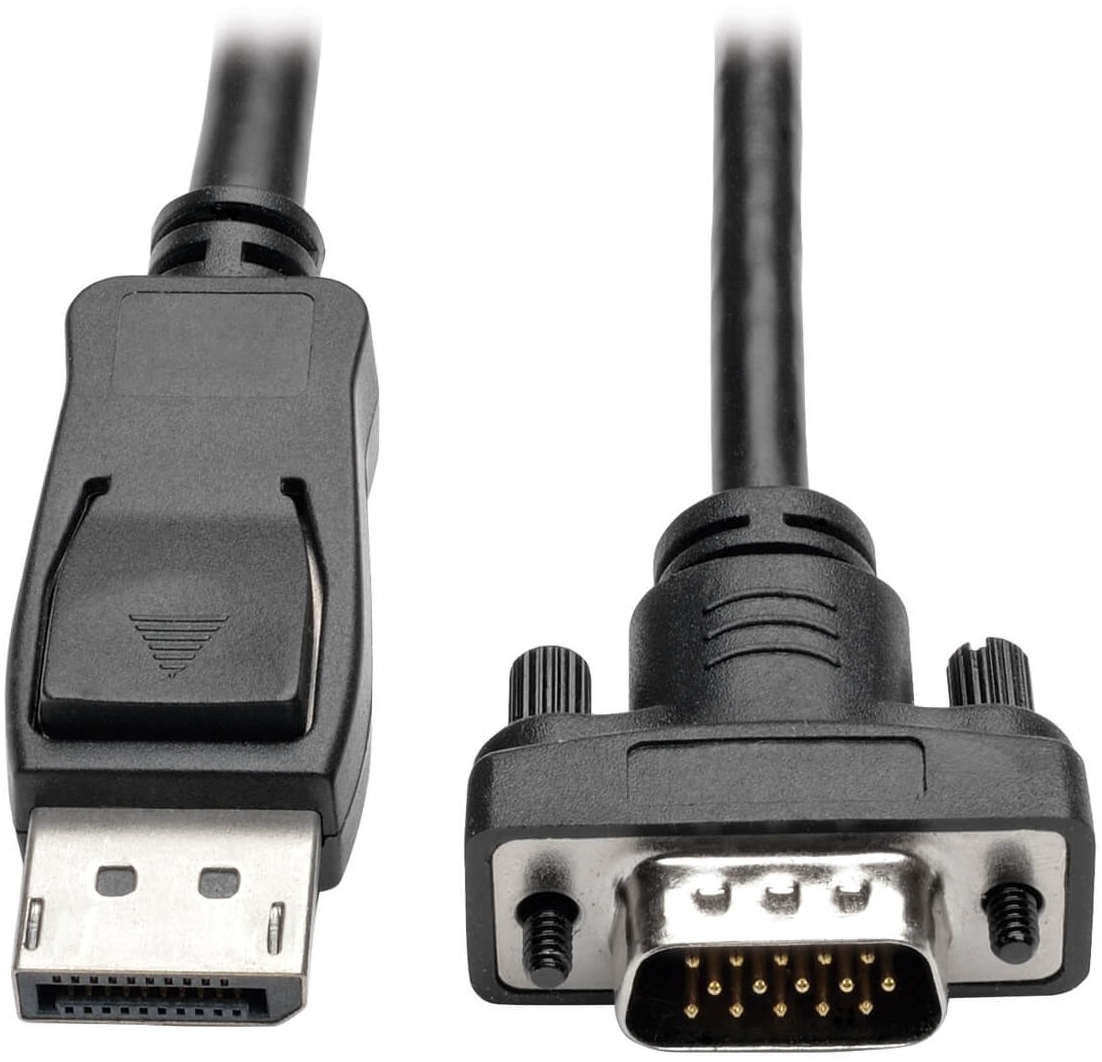

Eaton Tripp Lite series DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M)

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

P581-010-VGA-V2

DisplayPort cables and connectors

Eaton

P581-010-VGA-V2 information and overview

Eaton Tripp Lite series DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M), 10 ft. (3.1 m), TAA, Order on Request

Availability will be confirmed by email.

Great value! This product is available for only R 577.

Specifications & more information about P581-010-VGA-V2, DisplayPort cables and connectors manufactured by Eaton

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Converts a DisplayPort v1.2 video signal for display on a VGA monitor, projector or television.

Active adapter cable for use with any Displayport port
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
Supports computer video resolutions up to 1920 x 1200
Supports HD video resolutions up to 1920 x 1080 (1080p)
No separate adapter required
Nickel-plated connectors with gold-plated contacts

Features:

Send High-Quality DisplayPort v1.2 Video Signals to a VGA Display

Connects DisplayPort computer to VGA-enabled monitor, projector or TV
Ideal for displaying video on large monitor or digital sign
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
HD15 and latching DisplayPort male connectors
No separate adapter required

Vibrant, Superior Video Quality

Supports computer video resolutions up to 1920 x 1200
Supports HD video resolutions up to 1920 x 1080 (1080p)
Converts Single-Mode and Dual-Mode (DP++) DisplayPort output
Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals

Superior Materials for Superior Performance

Double shielding with foil and braid for maximum EMI/RFI protection
Nickel-plated connectors with gold-plated contacts for excellent conductivity
Latching DisplayPort plug for secure connection
Integral strain relief for long life
P581-010-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable, 10 ft.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	P581-010-VGA-V2
OVERVIEW
UPC Code	37332191946
Product Type	Active Cable
Technology	VGA/SVGA , DisplayPort
Cable Type	Active
VIDEO
Max Supported Video Resolution	1920 x 1200 (1080p)
CONNECTIONS
Side A - Connector 1	DISPLAYPORT (MALE)
Side B - Connector 1	HD15 (MALE)
Latching or Gripping Connector	Yes
PHYSICAL
Color	Black
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Cable Length (ft.)	10
Cable Length (in.)	120
Shipping Dimensions (hwd / in.)	10.00 x 8.00 x 0.50
Shipping Weight (lbs.)	0.44
ENVIRONMENTAL
Operating Temperature Range	32° to 113°F (0° to 45°C)
Storage Temperature Range	14° to 158°F (-10° to 70°C)
Operating Humidity Range	10% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing
FEATURES & SPECIFICATIONS
Displayport Specification	1.2
STANDARDS & COMPLIANCE
Product Compliance	Trade Agreements Act (TAA)
