Overview

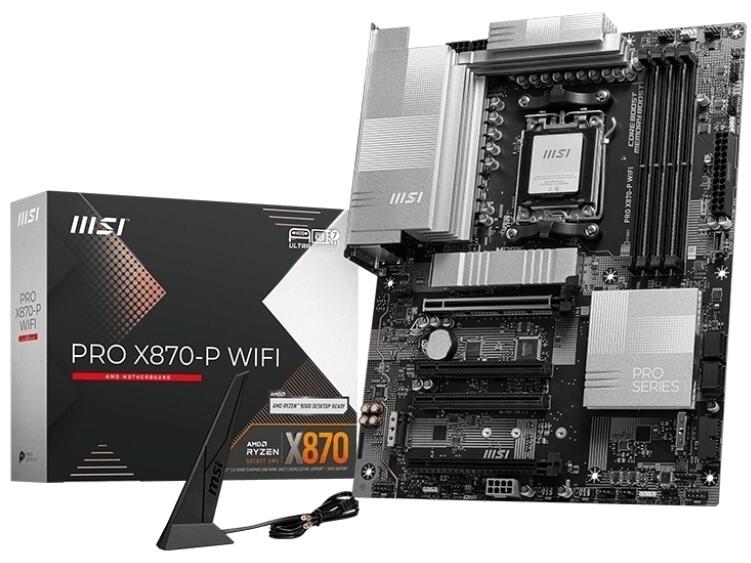

PRO X870-P WIFI Motherboard for AMD Ryzen 7000 / 8000 / 9000 Series
The MSI PRO X870-P WIFI is a high-performance ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Built with advanced DDR5 memory support, multiple PCIe slots, and ultra-fast connectivity options, this motherboard delivers reliable power, exceptional speed, and a seamless gaming and professional experience.

Description
The PRO X870-P WIFI offers robust support for DDR5 dual-channel memory, PCIe 5.0 expansion, and multiple M.2 storage solutions. It features advanced thermal management, studio-grade audio, and cutting-edge networking with USB4, Wi-Fi 7, and 5G LAN. Designed for gamers, creators, and professionals, it ensures high-speed data transfer, easy installation, and optimized system performance.

Features

High-Performance Processor and Memory Support

• Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors
• Supports DDR5 memory with dual-channel speeds up to 8200+ MT/s (OC)
• Advanced power delivery system with 14+2+1 Duet Rail, dual 8-pin CPU connectors, and Core Boost technology

Advanced Cooling and Durability

• Extended Frozr heatsinks with MOSFET thermal pads rated at 7W/mK
• Additional choke thermal pads and EZ M.2 Shield Frozr II for improved heat dissipation
• 8-layer PCB with 2oz thickened copper for enhanced stability and long-lasting performance

Optimized Expansion and Storage

• Four PCIe x16 and x1 slots for versatile GPU and expansion card configurations
• Three M.2 slots supporting PCIe 5.0 x4 for ultra-fast storage
• Four SATA 6G ports for traditional storage devices

Next-Level Connectivity

• USB4, USB 20Gbps Type-C, and USB 40Gbps Type-C for rapid data transfer
• USB 5Gbps and 10Gbps Type-A ports for versatile device connectivity
• Built-in 5G LAN, Wi-Fi 7, and Bluetooth for secure, high-speed networking

Immersive Audio and Gaming Experience

• 7.1-channel high-definition audio for studio-quality sound
• Lightning Gen 5 x4 M.2 and PCIe 5.0 slot for reduced latency and faster gameplay

Easy Installation and System Management

• MSI Driver Utility Installer automatically detects and installs drivers
• EZ Debug LED indicates hardware issues for faster troubleshooting
• Color-coded headers for efficient cable management
• Clear M.2 and USB labeling for easier component identification

Simple Overclocking Options

• MSI Click BIOS X allows one-click CPU and memory overclocking
• Accessible interface simplifies performance tuning without complex settings

User-Friendly Design Enhancements

• EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna simplify upgrades
• Audio Boost technology enhances immersive experiences
• Optimized layout and thermal solutions ensure continuous performance under load

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	PROX870-PWIFI
Chipset	AMD X870
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
	Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8200+ MT/s
	1DPC 2R Max speed up to 6400+ MT/s
	2DPC 1R Max speed up to 6400+ MT/s
	2DPC 2R Max speed up to 4800+ MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPO TM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	The DIMM slots on this motherboard have double-sided latches.
Onboard Graphics	1x HDMI
	Support HDMI TM 2.1, maximum resolution of 4K 60Hz
	1x Type-C DisplayPort
	USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E1 slot
	Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
	Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
	Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
	* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Audio	Realtek ALC897
	7.1-Channel High Definition Audio
Storage	3x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
	4x SATA 6G
	M2_1 slot
	Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
	2x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Front)
	1x USB 20Gbps Type C (Rear)
	1x USB 40Gbps Type C (Rear)
LAN	Realtek 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth 5.4**, MLO, 4KQAM
	* 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS
OPERATING SYSTEM	Support for Windows 11 64-bit
BOX CONTENT
PCB Info	ATX
	243.84mmx304.8mm
