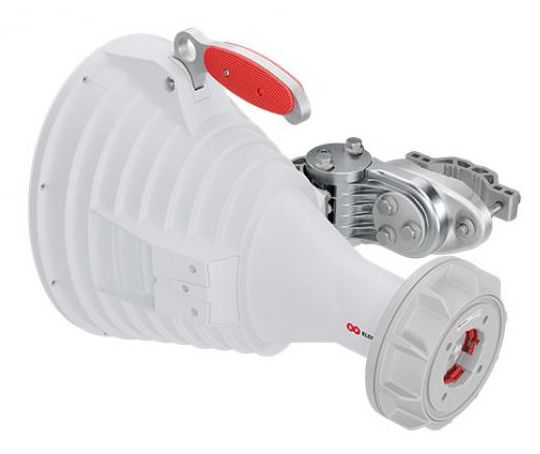

RF-AH-TPA30 RF Elements 30 degree asymetrical horn antenna

RF-AH-TPA30

Click to view larger image

R 6,725.00

inc. VAT

In Stock

Add To Cart

Rate

RF Elements 30 degree asymetrical horn antenna

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

RF-AH-TPA30

Wireless: Antennas

RF Elements

RF-AH-TPA30 information and overview

RF Elements 30 degree asymetrical horn antenna, Asymmetrical Horn 5180 - 6400 MHz, Gain 20.5 dBi, TwistPort Connector, HG3-TP-A30

Specifications & more information about RF-AH-TPA30, Wireless: Antennas manufactured by RF Elements

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RF-AH-TPA30
TECHNICAL DATA
Antenna Connection	TwistPort - Quick Locking Waveguide Port
Antenna Type	Horn
Materials	UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Enviromental	IP55
Pole Mounting Diameter	22-80 mm
Temperature	-35°C to +55°C (-31°F to +131°F)
Wind Survival	160 km/hour
Mechanical Tilt	± 25°
Weight	6.5 Kg / 14.3 lbs - single unit* 7.0 Kg / 15.4 lbs - single unit incl. package
Single Unit	Retail Box: 41.2 x 40.0 x 40.0 cm
PERFORMANCE
Frequency Range	5180 - 6000 MHz
Gain	20.5 dBi
Azimuth Beam Width -3 dB	H 21° / V 21°
Elevation Beam Width -3 dB	H 15° / V 15°
Azimuth Beam Width -6 dB	H 30° / V 30°
Elevation Beam Width -6 dB	H 20° / V 20°
Front-to-Back Ratio	35 dB
