RF-AS-5-20 RF Elements Array Sector antenna 5GHz 20 dBi - 100 degree Sector

RF-AS-5-20

R 3,335.00

inc. VAT

In Stock

Add To Cart

Rate

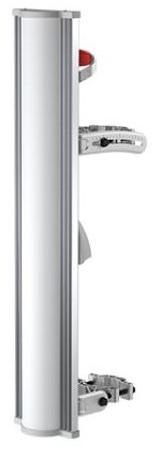

RF Elements Array Sector antenna 5GHz 20 dBi - 100 degree Sector

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

RF-AS-5-20

Wireless: Antennas

RF Elements

RF-AS-5-20 information and overview

RF Elements Array Sector antenna 5GHz 20 dBi, 100 degree Sector, 2x RP-SMA on Integrated semi-flex pigtails, 5150 - 5850 MHz, Dual Linear H + V polarization

Specifications & more information about RF-AS-5-20, Wireless: Antennas manufactured by RF Elements

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RF-AS-5-20
PHYSICAL
Antenna Connection	2x RP-SMA on integrated semi-flex pigtails
Antenna Type	Patch Array Sector
Materials	UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel
Enviromental	IP55
Temperature	-35°C to +55°C (-31°F to +131°F)
Wind Survival	160 km/hour
Wind Loading	160 N at 160 km/hour
Electrical Downtilt	0°
Pole Mounting Diameter	40-80 mm (recommend as close to 80 mm as possible)
Weight	3.5 kg / 7.7 lbs - single unit
Weight	3.8 kg / 8.3 lbs - single unit incl. package
Single Unit	Retail Box: 834 x 167 x 130 mm / 32.8 x 6.5 x 5.1 inch
PERFORMANCE
Frequency Range	5150 - 5850 MHz
Gain	20 dBi
Polarization	Dual Linear H + V
Azimuth Beam Width -3 dB	H 80° / V 71°
Elevation Beam Width -3 dB	H 3.5° / V 3.5°
Azimuth Beam Width -6 dB	H 100° / V 100°
Elevation Beam Width -6 dB	H 4.5° / V 4.5°
Front-to-Back Ratio (Min)	30 dB
Beam Efficiency	0.69
Cross Pol Isolation	H 27 dB / V 27 dB
Impedance	50 Ohm
VSWR Max	1.7
VSWR Typical	1.4
Isolation Between Ports	30 dB
COMPATIBLE WIRELESS PL	ATFORMS
RF elements	StationBox S, StationBox S CARRIER CLASS, RockShield
Cambium Networks	ePMP 1000AP and CSM 1, ePMP 2000AP 2
Cambium Networks	ePMP 3000L AP*3
MikroTik	BaseBox4, NetBox4, NetMetal*4
Ubiquiti Networks	Rocket M5, Rocket M5 Titanium, Rocket 5ac
	Rocket 5ac Prism, Rocket 5ac Prism Gen2, airFiber 5X
	airFiber 5X-HD, LTU Rocket
Mimosa by Airspan	A5x
TP-Link	Pharos WBS510
