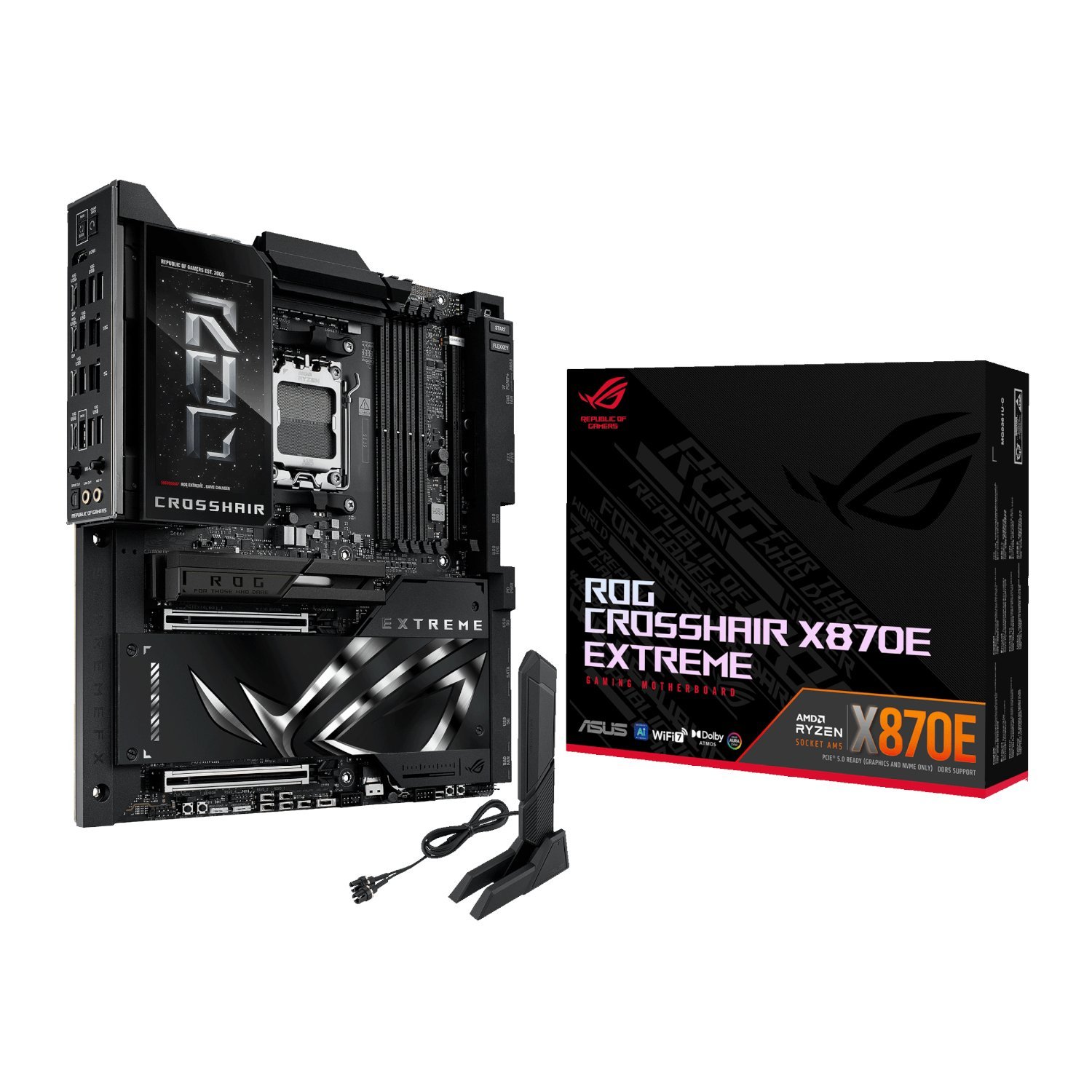

Images are for illustrative purposes and actual product may differ.
ROGCROSSHAIRX870EEXTREME
Mice - wireless mouse
Asus
ROGCROSSHAIRX870EEXTREME information and overview
Asus ROG Crosshair X870E EXTREME X870E Chipset AMD Ryzen AM5 Socket E-ATX Gaming Motherboard, 4 x DIMM slots, max. 256GB, DDR5, 2 x USB4 (40Gbps) ports (2 x USB Type-C), 10 x USB 10Gbps ports (8 x Type-A 2 x USB Type-C), 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet port, 1 x Marvell AQtion 10Gb Ethernet port, 2 x LED-illuminated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 2 x 4-pin Radiator Fan headers, 2 x W_PUMP headers, 1 x VRM Heatsink Fan header, 1 x 24-pin Main Power connector, 2 x 8-pin 12V CPU Power connector, 1 x 8-pin PCIe Power connector, 3 x M.2 slots (Key M), 1 x DIMM.2 slot supports 2 x M.2 slots (KeyM), 1 x SlimSAS connector, 4 x SATA 6Gb/s ports, 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 10Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers, 2 x Addressable Gen 2 header, 1 x Alteration PCIe mode switch, 2 x BCLK button, 1 x BIOS Switch, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x LN2 Mode jumper, 12 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switchs, 1 x RSVD header, 1 x Safe Boot button, 1 x Slow Mode switch, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, 1 x Pause switch, E-ATX Form Factor, 30.5 cm x 27.7 cm
Specifications & more information about ROGCROSSHAIRX870EEXTREME, Mice - wireless mouse manufactured by Asus
Specifications available as a download
Important notice The information displayed below this paragraph is for reference purposes only. The information may be generic in nature, which covers the entire range of products that fall within this category, and might not apply to this specific model. Please select the correct model as per the above description.
Kindly note that additional software, such as anti-virus and office software, are trial versions and a license will need to be purchased to use the software without limitations.
About this product
The ASUS ROG Crosshair X870E Extreme is a premium E-ATX motherboard designed for high-performance gaming and content creation. Built on the AMD X870E chipset with an AM5 socket, it supports AMD Ryzen 7000, 8000, and 9000 series processors. Featuring a robust 20 2 2 power stage design, PCIe 5.0 support, Wi-Fi 7, USB4 connectivity, and a customizable 5-inch LCD display, this motherboard offers exceptional speed, stability, and expandability for demanding applications.
Overview Summary
Performance tier: Enthusiast
Uses: High-end gaming, content creation, AI workloads, overclocking, system monitoring
The ASUS ROG Crosshair X870E Extreme is engineered for enthusiasts seeking top-tier performance and future-proofing. It boasts an advanced 20 2 2 power stage design, ensuring stable power delivery for overclocked systems. The motherboard supports DDR5 memory with speeds up to 8200 MT/s (OC) and features PCIe 5.0 for rapid data transfer. Connectivity options include Wi-Fi 7, USB4, and dual 10GbE LAN ports, providing seamless networking capabilities. The integrated 5-inch LCD display offers real-time system monitoring and customization, while AI Overclocking and Cooling II technologies optimize performance and thermal management.
Strong reasons to buy
High-resolution 5-inch LCD display for real-time system monitoring
Advanced 20 2 2 power stage design for stable overclocking
Comprehensive connectivity with PCIe 5.0, Wi-Fi 7, and dual 10GbE LAN ports
Support for DDR5 memory with speeds up to 8200 MT/s (OC)
AI Overclocking and Cooling II technologies for optimized performance
Description
The ASUS ROG Crosshair X870E Extreme motherboard is a flagship offering for enthusiasts seeking uncompromising performance and future-proofing. Built on the AMD X870E chipset with an AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 series processors. The motherboard features a robust 20 2 2 power stage design, ensuring stable power delivery even during intensive overclocking sessions. With support for DDR5 memory, it can achieve speeds up to 8200 MT/s (OC), providing ample bandwidth for demanding applications.
Connectivity is a highlight, with PCIe 5.0 slots offering rapid data transfer speeds, and dual 10GbE LAN ports ensuring seamless networking capabilities. The integrated 5-inch LCD display allows for real-time system monitoring and customization, adding both functionality and aesthetic appeal to your build. AI Overclocking and Cooling II technologies intelligently adjust performance and thermal settings, optimizing the system for peak efficiency. Whether you're into high-end gaming, content creation, or AI workloads, this motherboard provides a solid foundation for your build.
Features
20 2 2 power stage design: Ensures stable power delivery for overclocked systems.
DDR5 support: Achieves memory speeds up to 8200 MT/s (OC) for high bandwidth.
PCIe 5.0 slots: Provides rapid data transfer speeds for next-gen components.
Dual 10GbE LAN ports: Offers seamless networking capabilities for demanding applications.
Wi-Fi 7: Delivers high-speed wireless connectivity for modern devices.
USB4 connectivity: Supports high-speed data transfer and charging.
5-inch LCD display: Allows for real-time system monitoring and customization.
AI Overclocking and Cooling II: Intelligent technologies for optimized performance and thermal management.
AI CACHE BOOST Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen(TM) 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
Token per second With an ASUS AMD 600 or 800 series motherboard and a Ryzen(TM) 9000 series CPU, you can enable the AI Cache Boost setting in the BIOS. This feature applies comprehensive optimizations to CPU cache and memory pathways, greatly reducing the typical performance drop that can happen when VRAM is used up.
Internal testing determined that enabling AI Cache Boost delivered up to a 15% performance uplift when running large language models that exceeded graphics card memory. With high-speed DDR5 memory and additional Infinity Fabric clock (FLCK) speed tuning, this performance uplift nearly doubled.
For enthusiasts, creators or anyone who wants a powerful AI model capable of deep reasoning and natural conversation running on their own hardware, they can enjoy these uplifts today with AI Cache Boost.
ASUS AI ADVISOR Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI OVERCLOCKING ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI COOLING II A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Traffic Monitor Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.
Fast Check Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength.
Direction Finder Armoury Crate's Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.
Gamefirst GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA(RegTM) GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user's experience, GameFirst is now integrated into Armoury Crate.
Dynamic OC Switcher Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Asynchronous Clock For next-level frequency flexibility, the ROG Crosshair X870E Apex features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
PBO ENHANCEMENT AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
OVERCLOCKER'S TOOLKIT The ROG Overclocker's Tooklit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
SAFE BOOT BUTTON Instantly reset the PC and boot directly into Safe mode.
BCLK BUTTONS Adjust the BCLK frequency to improve system performance.
PROBEIT Includes eighteen integrated measurement points for advanced tuning.
RETRY BUTTON Instantly initiates a hard reset with just a press.
RSVD SWITCH Helps the system boot under extreme temperatures (≤ -120degreesC)
LN2 MODE Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
BIOS SWITCH Switches between BIOS 1 and 2.
SLOW MODE SWITCH Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
DDR5 DOMINATION Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair X870E Extreme*.
DDR5 Strength For those who want to fly past stock DDR5 speeds, the ROG Crosshair X870E Extreme is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
DIMM Fit / DIMM Fit Pro DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.
DIMM Fit / DIMM Fit Pro DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
NitroPath DRAM Technology NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
AEMP AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
THERMAL MANAGEMENT An extensive array of headers line the ROG Crosshair X870E Extreme for precise cooling control and monitoring.
Multiple temperature sources Each header can be set to monitor and react to user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
4-pin fan headers Every onboard header supports auto-detection of DC or PWM fans.
COOLER COMPATIBILITY ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.
pcie 5.0 Fully embracing the new standard, the ROG Crosshair X870E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
THREE ONBOARD M.2 SLOTS The ROG Crosshair X870E Extreme features three onboard PCIe 5.0 M.2 slots, which offer blistering 16 GB/s speeds. It also features a SlimSAS Connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.
EXPANSION SLOTS Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release Slim.
ROG Q-DIMM.2 The ROG Q-DIMM.2 expansion card lets you easily mount two PCIe 4.0 M.2 drives next to the memory module slots, where the card's large heatsinks convect heat directly into the path of chassis airflow. (M.2 drive not included.)
WIFI 7 The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
5Gb ETHERNET Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.
10Gb ETHERNET Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Marvell(RegTM) Aqtion 10Gbps Ethernet.
ASUS WiFi Q-Antenna Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Wireless Signal Reception Improvement Versus previous-generation antenna
TWO USB4(RegTM) TYPE-C(RegTM) PORTS Each USB4(RegTM) port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL CONNECTORS The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W.
SupremeFX ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS(RegTM) ES9219 Quad DAC capable of reaching-114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
Dolby Atmos Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
PCIE Slot Q-Release With PCIe(RegTM) Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Slide This new sliding M.2 latch design supports sizes 2242 and 2260 for easy device installation.
New M.2 Q-Latch The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
Q-Antenna With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Q-Code The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.
Start Button This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.
Q-LED Q-LED is a set of troubleshooting lights to give PC builders quick indicators to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. Q-LED can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.
BIOS Flashback & Clear CMOS The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack(TM) is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
UEFI BIOS The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
BIOS Q-DASHBOARD Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Advanced mode When you're ready for a deeper dive, delve into the UEFI's Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
My Favorites Quickly locate tuning options and add preferred tools to your favorites list.
EZ Flash 3 Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T. Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU POST Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase Restore your SSDs and NVMe storage to factory settings.
Last Modified Log Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming Rename SATA ports for easy identification.
ASUS User Profile Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75degrees C.
Aura On/Off mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
ASUS DriverHub ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
Dolby Atmos Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
ASUS GlidEx ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
HWiNFO HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
AIDA64 Extreme The ROG Crosshair X870E Extreme includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
Armoury Crate Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Boundless creativity, endless style. The ROG Crosshair X870E Extreme features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services* through Armoury Crate, empowering gamers to define their unique style on a vibrant display.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO(TM) technology and PCIe(RegTM) 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen(TM) 9000, 8000, and 7000 Series processors.
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870E
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors
9000+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC) with Ryzen 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO )
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https: / / www.asus.com / support / download-center / .
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x VRM Heatsink Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key
M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB
Type-C)
1 x USB 10Gbps connector (supports USB
Type-C)
2 x USB 5Gbps headers support 4 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x
ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Pause switch
Special Features
Extreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Dual BIOS
Full Color 5" LCD Display
Front Panel USB 20Gbps with Quick Charge 4+
Support
- Support: up to 60W fast charging and USB
Wattage Watcher
- Output: 5/9/15/20V max. 3A, PPS:3.3-21V
max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power
cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS DriverHub
Turbo Vcore
ASUS GlideX
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME
Accessories
Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
ROG Q-DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
1 x ROG Fan Kit
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
1 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System
Windows 11
Form Factor
E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
FAQ
What processors are compatible with the ASUS ROG Crosshair X870E Extreme motherboard?
This motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with an AM5 socket.
What is the maximum memory capacity supported by this motherboard?
The ASUS ROG Crosshair X870E Extreme supports up to 256GB of DDR5 memory across four DIMM slots.
Does this motherboard support PCIe 5.0?
Yes, it features PCIe 5.0 slots, providing rapid data transfer speeds for next-gen components.
What networking options are available on this motherboard?
The motherboard offers dual 10GbE LAN ports and Wi-Fi 7 for high-speed connectivity.
Is there an integrated display on this motherboard?
Yes, it includes a 5-inch LCD display for real-time system monitoring and customization.
The best price and guaranteed service and backup from official computer suppliers in South Africa for the ROGCROSSHAIRX870EEXTREME Asus ROG Crosshair X870E EXTREME X870E Chipset AMD Ryzen AM5 Socket E-ATX Gaming Motherboard.
The Asus
ROGCROSSHAIRX870EEXTREMEAsus ROG Crosshair X870E EXTREME X870E Chipset AMD Ryzen AM5 Socket E-ATX Gaming Motherboard is available for R23405. The product is sold by ComX Computers as new. Prices are valid today 2026-08-24 (before , by quote, while stocks last). The product is expected to be in stock, although this is not guaranteed.
Available from this online computer store delivering door-to-door in Johannesburg, Cape Town, Port Elizabeth, Pretoria, Pietermaritzburg, Polokwane, Durban and all over South Africa.
Find related ROGCROSSHAIRX870EEXTREME Asus ROG Crosshair X870E EXTREME X870E Chipset AMD Ryzen AM5 Socket E-ATX Gaming Motherboard products in our Mice - wireless mouse Category for even more options. Read reviews and find out about ROGCROSSHAIRX870EEXTREME Asus ROG Crosshair X870E EXTREME X870E Chipset AMD Ryzen AM5 Socket E-ATX Gaming Motherboard. Discounts, specials and cheap prices only at ComX Computers.
Up
Down
Mobile store
