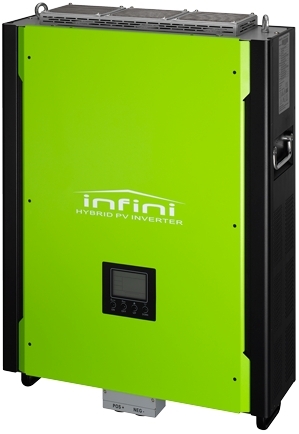

SOL-I-IS-15M Mecer Infinisolar 15kW 3 phase Pure Sine Wave Hybrid Inverter

SOL-I-IS-15M

Click to view larger image

R 64,520.00

inc. VAT

In Stock

Add To Cart

Rate

Mecer Infinisolar 15kW 3 phase Pure Sine Wave Hybrid Inverter

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

SOL-I-IS-15M

Inverters

Mecer

SOL-I-IS-15M information and overview

Mecer Infinisolar 15kW 3 phase Pure Sine Wave Hybrid Inverter, 3-phase in / 3-phase out, 22500W Maximum PV Input power, 15000W rated Output power, 15000 W Maximum charging power, 48 VDC nominal DC voltage

Specifications & more information about SOL-I-IS-15M, Inverters manufactured by Mecer

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

InfiniSolar 10KW-15KW Hybrid inverter
InfiniSolar 10KW/15KW is a hybrid inverter which combines solar system, AC utility, and battery power source to supply continuous power. It is suitable for remote areas where the cost of utility is too high or emergency usage when utility is not stable.

Features:

Pure sine wave output
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable battery charging current suits different types of batteries
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Built-in timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus and SNMP
Monitoring software for real-time status display and control
Parallel operation up to 6 units

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SOL-I-IS-15M
MODEL	InfiniSolar 3P 15KW
PHASE	3-phase in/3-phase out
Maximum PV Input Power	22500W
Rated Output Power	15000W
Maximum Charging Power	15000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage	320 VDC / 350 VDC
MPPT Voltage Range	400 VDC~800 VDC
Number of MPP Trackers/Max. Input Current	2 / A: 37.65A, B: 18.6A
GRID OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N)/400 VAC (P-P)
Output Voltage Range	184-265 VAC* per phase
Nominal Output Current	21.7A per phase
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	96%
European Efficiency@Vnominal	95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120-140 VAC per phase / 180 VAC per phase
Acceptable Voltage Range	170-280 VAC per phase
Maximum AC Input Current	40A
PV INPUT (DC)
Maximum DC Voltage	900 VDC
MPPT Voltage Range	350 VDC ~ 850 VDC
Number of MPP Trackers/Max. Input Current	2 / A: 37.65A, B: 18.6A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N)/400 VAC (P-P)
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage	320 VDC / 350 VDC
MPPT Voltage Range	350 VDC ~ 850 VDC
Number of MPP Trackers/Max. Input Current	2 / A: 37.65A, B: 18.6A
GRID OUTPUT (AC)
Nominal Output Current	14.5A per phase
Nominal Output Voltage	230 VAC (P-N)/400 VAC (P-P)
Output Voltage Range	184-264.5 VAC per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120-140 VAC per phase / 180 VAC per phase
Acceptable Voltage Range	170-280 VAC per phase
Maximum AC Input Current	40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	230 VAC (P-N)/400 VAC(P-P)
Efficiency (DC to AC)	91%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current	Default 60A, 5A-300A (Adjustable)
GENERAL
PHYSICAL
Dimension, D X W X H (mm)	219 x 650 x 820
Net Weight (kgs)	62
INTERFACE
Communication Port	RS-232, USB and Dry contact
Intelligent Slot	Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT
Operating Humidity	0~90% RH (Non-condensing)
Operating Temperature	-10 to 55 °C
Altitude	0~1000 m
