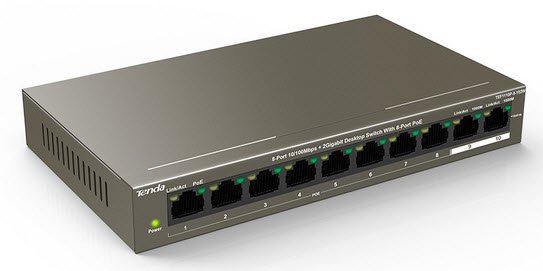

TEF1110P-8-102W

Features:

PoE+ and Dual Gigabit Uplink
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. Machine PoE maximum output power of 99W, single-port maximum output power of 30W. The two gigabit uplink ports are capable for cascade connection of more devices.

Up to 250 meters long distance transmission, beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF12 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters ; Provide gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.

6KV lighting protection PoE switch is the real monitoring private switch
In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches . Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed. Tenda TEF11 series switches have professional lightning protection design – 6kV port and power supply thunder prevents. These two protection design can effectively inhibit the lightning current from the network cable and power supply, which is equivalent to add a security Walls to the entire network monitoring system. And the test standards are far higher than the requirements of the state CCC. In the thunderstorms, the monitoring network can also provide stable and reliable services to the monitoring network and ensure the normal transmission of the images.


Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TEF1110P-8-102W
Hardware
Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
LED Indicator	10* Link/Ack LED indicators
	1 * Power LED indicator
Interfaces	8 * 10/100 Base-TX Ethernet ports (Data/Power)
	2 * 10/100 Base-TX Ethernet ports (Data)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	N/A
Dimension	177.5mmx104.0mmx26.0mm
Level of protection	Lightning protection for ports: 6KV
	Lightning protection for power: 4KV
	ESD:
	Air discharge: ±10kV
	Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	5.6 Gbps
Packet forwarding rate	1.48Mpps
Buffer	448K
MAC address table	16K
Jombo frame	N/A
PoE budget	Single port: AF: 15.4W, AT: 30W
	Whole device: 99W
Power consumption	/
Input voltage	100-240V AC 50/60Hz
	51V /2.1A DC(Power Adapter )
Mounting	Desktop mounting: support
	Wall mounting: support
	Rack mounting:non-support
Environment	Operating Temperature: 0°C~45°C
	Storage Temperature: -40°C~70°C
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
Certification	FCC, CE, RoHS
Software
Funtions	Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
	VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame.
	Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).
