TI-M6024 Trendnet TI-M6024 DIN Rail 24V 60W Power Supply
Images are for illustrative purposes and actual product may differ.
TI-M6024 DIN rail electricalTRENDnet
TI-M6024 information and overview

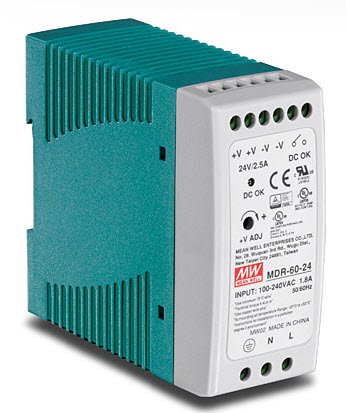

Trendnet TI-M6024 DIN Rail 24V 60W Power Supply
Not for sale. This is a discontinued product.
Kindly search for an alternative on our site
Subject to correction, the product was first added on 2017-04-13 and the last date we have for this product is 2024-05-02, where the last unit was sold for R 567, which may have been a final clearance price.
Specifications & more information about TI-M6024, DIN rail electrical manufactured by TRENDnet
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview:
TRENDnet’s 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.
Features:
60 Watt Power
Provides up to 60 Watts (24 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points.
Overload Protection
Overload/short circuit/over voltage protection
Full Load Test
This power supply undergoes a 100 % full load burn-in test
Passive Cooling
Cooling by free air convection
DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Extreme Temperatures
Rated for an operating temperature range of -20 to 70 °C (-4 to 158 °F)
Safety Certifications
Certified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria A
Vibration Resistant
Rated for vibration (IEC 60068-2-6)
LED Indicator
LED indicator confirms power to the unit Specifications: | ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | | Specifications | | Product Code | TI-M6024 | | Interface | Input: 100-240 V AC, 50/60 Hz, 1.8 A 120-370 V DC | | Output: 60 Watts, 24 V, 2.5 A | | DIN rail: TS-35/7.5 or 15 | | Housing | Metal case | | DIN-rail mount | | LED indicator confirms power to the unit | | Special Features | DC OK relay contact | | Short circuit/overload/over voltage protection | | Protection type: shut down and repower | | Operating Temperature | - 20 to 70 °C (- 4 to 158 °F) | | Operating Humidity | Max. 90 % non-condensing | | MTBF | 2,992,000 hours | | Dimensions | 40 x 100 x 90 mm (1.6 x 3.9 x 3.5 in.) | | Weight | 300 g (10.6 oz.) | | Certifications | CE | | UL 508 | | UL 60950-1 | | CB 60950-1 | | TUV EN60950-1 | | Class I, Div. 2 hazardous locations T4 |
