Overview:

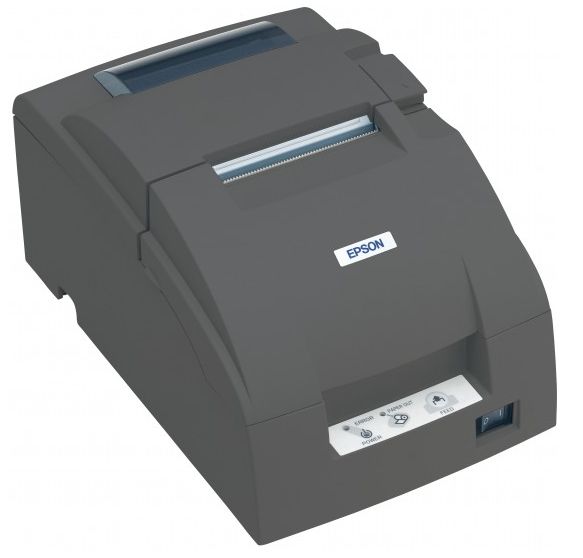

Epson TM-U220B Series
The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.

Space-saving and versatile, it has a footprint of just 160(W) x 248 (D) x 133 (H) mm, and can also be wall-mounted.

Features:

• Flexible paper width: 76 / 69,5 / 58,5 mm
• Low TCO and affordable price
• Drop-in paper load
• Autocutter included
• High-speed printing through logical seeking control 6,0 lps (30cpl) / 4,7
• Wall mountable with optional kit

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TM-U220BC
Print method	9-pin serial impact dot matrix
Technology	Serial Impact Dot Matrix
Print Speed	4.70 lps (40 columns, 16.00 cpi)
Column capacity receipt	Paper width 76 mm, 33 / 40
Character size	1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H)
Character set	95 Alphanumeric, 48 International, 128 x 12 Graphic
Characters per inch	13.3 cpi / 16 cpi
Paper Types	Receipt
Copy capability receipt	one copies plus one original
Paper size roll paper	76.00 ± 0.50 (W) mm x dia 83.00 mm
	69.50 ± 0.50 (W) mm x dia 83.00 mm
	57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces	Bidirectional parallel, Drawer kick-out, RS-232
Power Supply	PS-180
Operating voltage	24 V
Product dimensions	160 x 248 x 139 mm (Width x Depth x Height)
Product weight	2.5 kg
Colour	Epson Dark Grey / Epson Cool White
Installation	horizontally, vertically with wall hanging bracket
Interface connectors	D.K.D. function (2 drivers)
Noise Level	Operation: 64 dB (A)
Humidity	Operation 10% - 90%, Storage 10% - 90%
Temperature	Storage -10° C - 50° C
