TP-ARCHERC20

Overview:

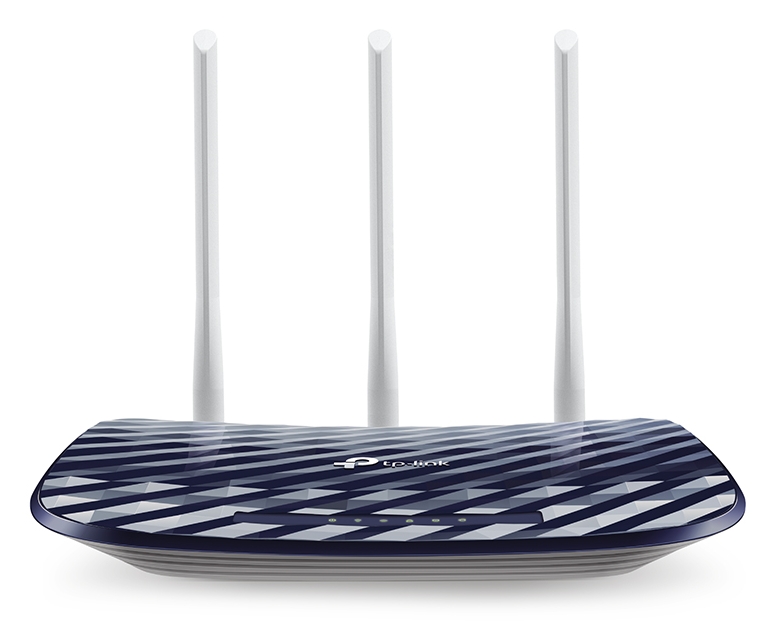

AC750 Wireless Dual Band Router Archer C20

• Supports 802.11ac standard - the next generation of Wi-Fi
• Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
• 3 external antennas provide stable omnidirectional signal and superior wireless coverage

Features:

802.11ac - The Next Generation of Wi-Fi
TP-Link's Archer C20 comes with the next generation Wi-Fi standard - 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.

• 802.11ac
• 5GHz
• 433Mbps
• 802.11n
• 2.4GHz
• 300Mbps

733Mbps Dual Band - Connections for Lag-Free Work
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band - all at the same time.

• 5GHz
• 2.4GHz

Stable Omnidirectional Signal and Superior Coverage
With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Easy Setup and Use
Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TP-ARCHERC20
HARDWARE FEATURES
Interface	4 10/100Mbps LAN ports
	1 10/100Mbps WAN port
Button	WPS/Wi-Fi Button
	Reset Button
	Power On/Off Button
Antenna	2 x 2.4GHz Antennas
	1 x 5GHz Antenna
External Power Supply	9V/0.6A(EU), 9V/0.85A(US)
Dimensions ( W x D x H )	9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna Type	Two dual band fixed antennas
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz
	IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 433Mbps
	2.4GHz: Up to 300Mbps
Reception Sensitivity	5GHz:
	11a 54M: -76dBm, 11ac VHT20 MCS8: -71dBm
	11ac VHT40 MCS9: -66dBm, 11ac VHT80 MCS9:
	-62dBm
	2.4GHz:
	11g 54M: -76dBm11n, HT20 MCS7: -73dBm
	11n HT40 MCS7: -71dBm
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
Transmission Power	CE:
	<20dBm(2.4GHz)
	<23dBm(5GHz)
SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control
Management	Access Control
	Local Management
	Remote Management
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management
	Control, Host List,
	Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
USB Sharing	Support Samba(Storage)/ FTP Server/Media Server/Printer Server
Guest Network	2.4GHz guest network x 1
	5GHz guest network x 1
OTHERS
Certification	CE, RoHS
Package Contents	AC750 Wireless Dual Band Router Archer C20
	Power Adapter
	RJ45 Ethernet Cable
	Quick Installation Guide
Box Dimensions (W X D X H)	14 x 8.8 x 2.7 in. (357x223x68mm)
System Requirements	Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux
	Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers
	Cable or DSL or Fiber Modem/Terminal
	Subscription with an Internet Service Provider (for Internet access)
Environment	Operating Temperature: 0°C~40 °C (32 °F~104°F)
	Storage Temperature: -40°C~70 °C (-40 °F~158°F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
