Features:

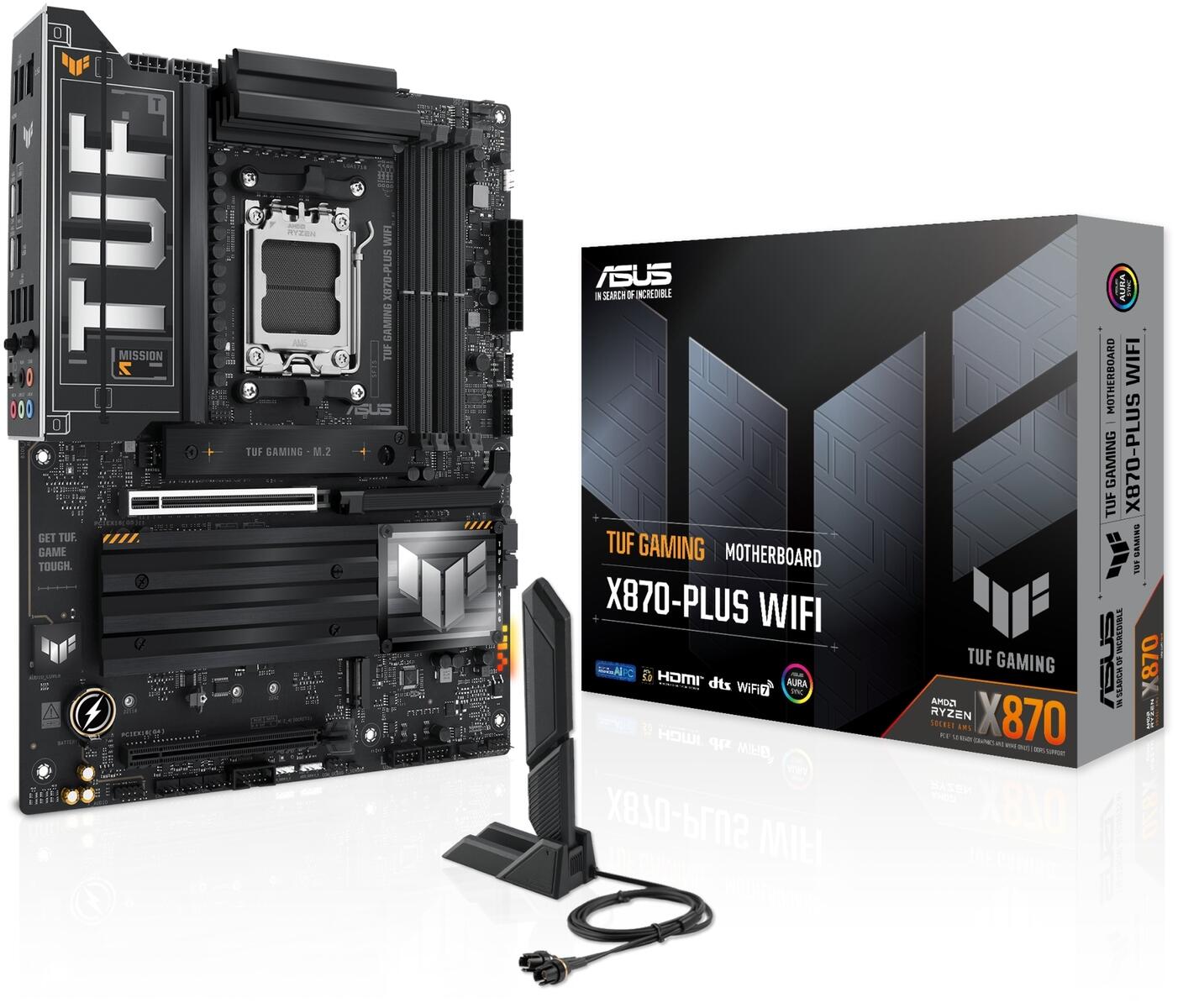

TUF GAMING - X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Complete AI Solution
ASUS AI Solutions - including AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization - offer smart overclocking, efficient cooling and new levels of ultrafast connectivity.

AI Overclocking
Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II
Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and  for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.?

CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Power Saving
Leverage all-around energy efficiency settings to optimize power consumption.

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Premium Power Design
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight Layered PCB design
Enhanced stability and overclocking.

This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components
TUF chokes and capacitors offer rock-solid durability and stability.

TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+VRM Control
Real-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Memory & Storage - DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

DDR5 DOMINANCE
For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO ) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 Support
This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TUFGAMINGX870-PLUS-WIFI
Model	TUF GAMING X870-PLUS WIFI
News & Updates	Please visit our GLOBAL website to check and download the latest updates.
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
	ECC and Non-ECC, Un-buffered DIMM
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO )
	ASUS Enhanced Memory Profile (AEMP)
	* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port
	2 x USB4 (40Gbps) ports support USB Type-C display outputs
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	* Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
	** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors
	1 x PCIe 5.0 x16 slot (supports x16 mode)
	AMD Ryzen 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
	AMD X870 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	* Specifications vary by CPU types.
	** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Storage	Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot not support
	AMD X870 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242 / 2260 / 2280 / 22110 (supports PCIe 4.0 x4 mode)
	2 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	* The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Ethernet	1 x Realtek 2.5Gb Ethernet
	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth v5.4
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4 (40Gbps) ports (2 x USB Type-C )
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C power delivery output: max. 5V/3A
	** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports	2 x USB4 (40Gbps) (2 x USB Type-C ) ports
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	1 x HDMI port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	4 x M.2 slots (Key M)
	2 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thermal Sensor header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with SPS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsinks
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
	Front Panel USB 20Gbps with PD Fast Charge Support
	- Support: up to 30W fast charging and USB Wattage Watcher
	- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
	- Compatible with PD3.0
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	2 x M.2 rubber packages
	1 x Screw package for M.2 SSD
	1 x TUF GAMING sticker
	Documentation
	1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
