UB-UAP-U7-PRO-XGS-B

Overview:

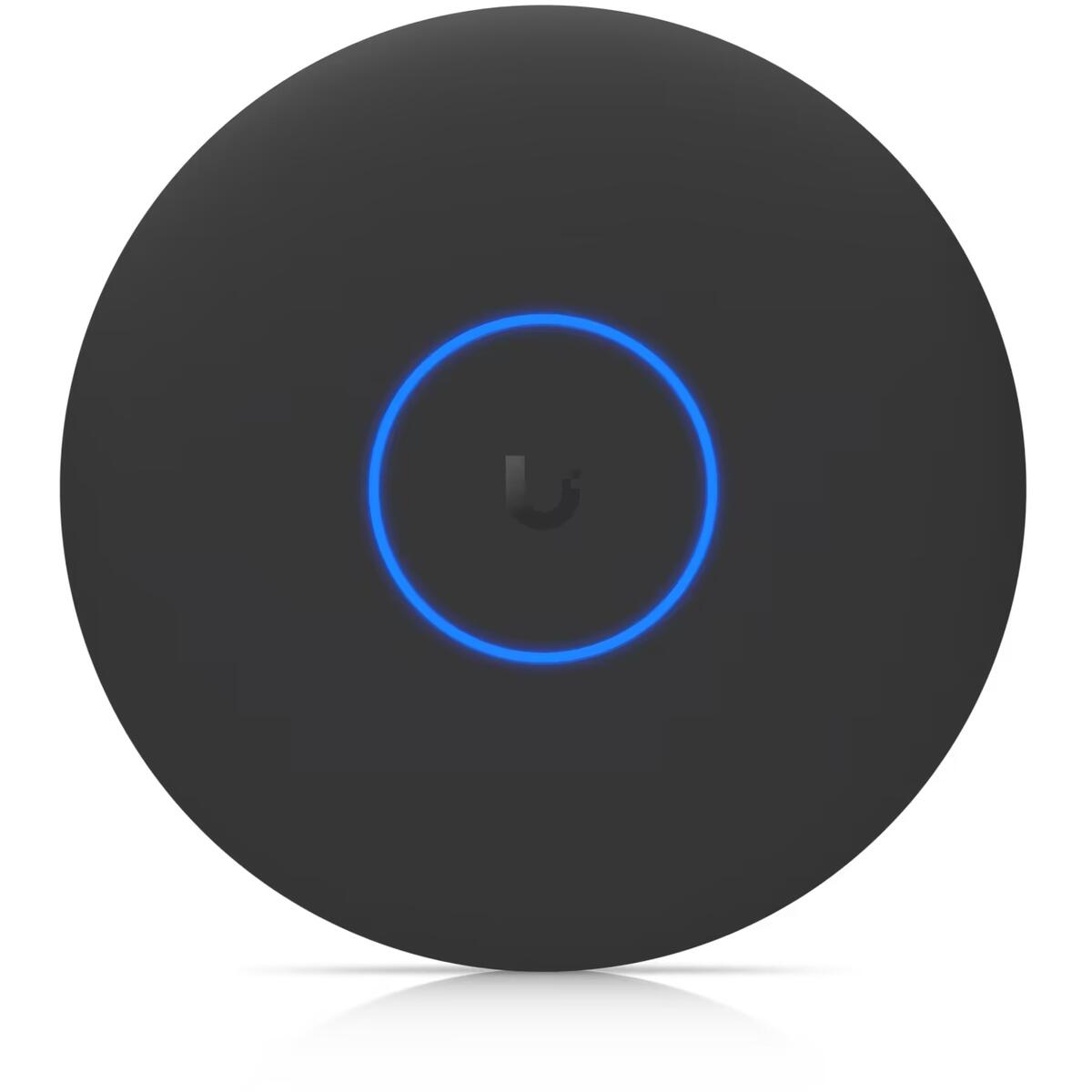

Ubiquiti UniFi Wi-Fi 7 Pro XGS Indoor Access Point
The Ubiquiti UniFi Wi-Fi 7 Pro XGS (U7-Pro-XGS) is a high-performance indoor access point designed for demanding wireless networks. With cutting-edge Wi-Fi 7 technology, it delivers ultra-fast speeds, extensive coverage, and robust connectivity for homes, offices, and enterprise environments.

This access point supports 8 spatial streams, accommodating over 500 simultaneous clients, and covers up to 160 square meters. Equipped with a 10 GbE uplink port and powered via PoE++, it ensures seamless integration into modern network infrastructures. Ideal for ceiling or wall mounting, it combines high-speed connectivity across 6 GHz, 5 GHz, and 2.4 GHz bands for superior wireless performance.

Features:

High-Speed Wireless Performance
The U7 Pro XGS offers industry-leading Wi-Fi 7 speeds, reaching 5.8 Gbps on the 6 GHz band, 8.6 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. Its 8 spatial streams allow multiple devices to connect simultaneously without compromising speed, making it perfect for offices, smart homes, and high-density environments.

Advanced Connectivity Options
This access point comes with versatile uplink support, including 10/5/2.5/1 GbE ports, providing flexibility for different network setups. The dedicated spectral scanning radio enhances network monitoring and interference detection, keeping your Wi-Fi performance optimized at all times.

Installation and Power Flexibility
Designed for easy ceiling or wall mounting, the U7 Pro XGS integrates seamlessly into any space. It uses PoE++ power, eliminating the need for separate power cables while maintaining stable and efficient operation.

Reliable Client Handling and Coverage
With the capacity to support over 500 connected clients, the U7 Pro XGS is ideal for environments with high device density. Its coverage area of up to 160 square meters ensures consistent wireless performance throughout your space.

Why Choose the U7 Pro XGS

• Ultra-fast Wi-Fi 7 connectivity for multiple devices
• High client capacity for busy networks
• Flexible mounting and PoE++ support
• Multi-gig uplink options for future-proof networks
• Advanced radio monitoring for interference-free operation

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UB-UAP-U7-PRO-XGS-B
Overview
Dimensions	Ø215 x 32.5 mm
	(Ø8.5 x 1.3")
WiFi Standard	WiFi 7
Spatial Streams	8
Coverage Area	160 m² (1,750 ft²)
Max. Client Count	500+
Uplink	10 GbE
Mounting	Ceiling, Wall
	(Lite Mount Included)
Power Method	PoE++
MIMO
6 GHz	2 x 2 (DL/UL MU-MIMO)
5 GHz	4 x 4 (DL/UL MU-MIMO)
2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz	5.8 Gbps (BW320)
5 GHz	8.6 Gbps (BW240)
2.4 GHz	688 Mbps (BW40)
Antenna Gain
6 GHz	6 dBi
5 GHz	6 dBi
2.4 GHz	4 dBi
Max. TX Power
6 GHz	24 dBm
5 GHz	29 dBm
2.4 GHz	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates
802.11be (WiFi 7)	6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
	5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Features
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Zero-Wait DFS	Yes
Advanced Radio Management	Yes
Real-Time Spectral Analysis	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal
Custom Branding Landing Page	Yes
Voucher Authentication	Yes
Payment-Based Authentication	Yes
External Portal Server Support	Yes
Password Authentication	Yes
Guest Network Isolation	Yes
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Hardware
Max. Power Consumption	29W
Supported Voltage Range	42.5-57V DC
Networking Interface	(1) 10 GbE RJ45 port
Weight	800 g (1.8 lb)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System	White/Blue
Channel Bandwidth	HT 20 / 40, VHT 20 / 40 / 80 / 160, HE 20 / 40 / 80 / 160, EHT 20/40/80/160/240/320 (MHz)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Ambient Operating Temperature	-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
