UPAPEPDU1232M

Overview:

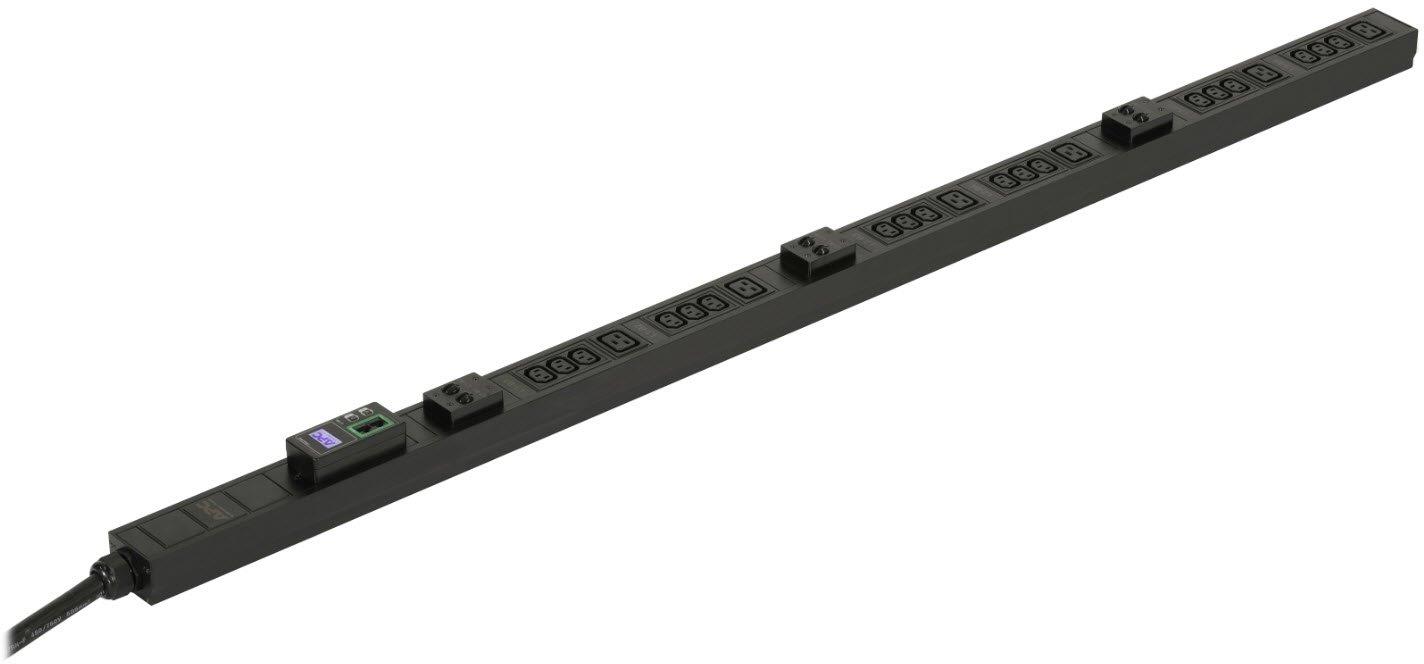

APC Easy Metered Rack PDU EPDU1232M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1232M has IEC 309 32A 3P+N+E type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure.

Features:

• Reliable and affordable Rack Power Distribution
• real-time remote management capabilities
• Zero-U Toolless Rack Mounting Capabilities
• Flash Upgradeable
• Local Current Monitoring Display and Load indicator LED

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UPAPEPDU1232M
Overview
Lead time	Usually in Stock
Main
Main Input Voltage	400 V 3 phases
PDU type	Metered
Main Output Voltage	230 V
Input Connection Type	IEC 60309 32 A 3P + N + PE
Number of rack unit	0U
Cable length	1.98 m
Number of cables	1
Provided equipment	Installation guide
	Toolless mounting kit
	Vertical mounting brackets
Physical
Colour	Black
Height	150.6 cm
Width	6.2 cm
Depth	4.44 cm
Net weight	4.64 kg
Mounting location	Side
Mounting preference	No preference
Mounting mode	Rack-mounted
Mounting position	Vertical
Input
Input current limits	32 A
Load capacity	22000 VA
Network frequency	50/60 Hz
Output
Number of power socket outlets	18 IEC 60320 C13
	6 IEC 60320 C19
Conformance
Product certifications	CE
	EAC
	RCM
	TÜV
Environmental
Ambient air temperature for operation	-5...45 °C
Relative humidity	5...95 %
Operating altitude	0...10000 ft
Ambient air temperature for storage	-25...65 °C
Storage Relative Humidity	5...95 %
Storage altitude	0.00...15240.00 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	166 cm
Package 1 Width	11 cm
Package 1 Length	16 cm
Package 1 Weight	5.48 kg
