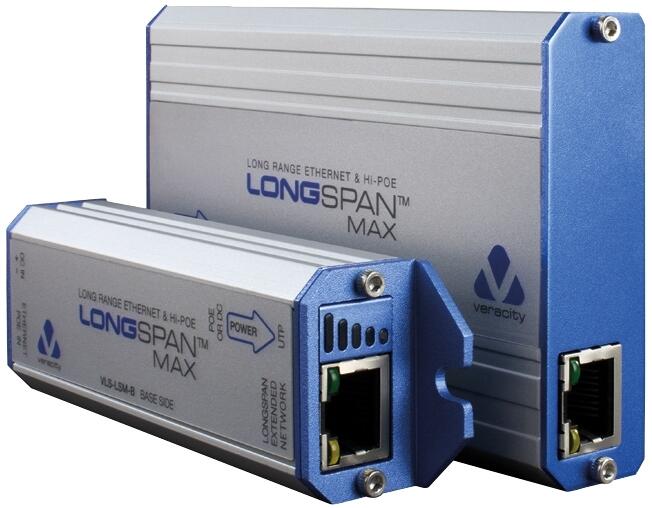

VER-VLS-LSM-B

About this product

The Veracity LONGSPAN Max Base adapter enables long-range Ethernet connectivity combined with high-power PoE delivery. Designed for extreme distances, it supports IEEE 802.3bt to deliver strong power to remote devices like IP cameras, making it ideal for industrial or security deployments.

Overview

Veracity LONGSPAN Max Adapters for Long-Range Ethernet and High-Power PoE
The Veracity LONGSPAN Max Adapters are designed for high-performance, long-range Ethernet connections with support for high-power PoE. Ideal for IP camera installations and other network devices, these adapters provide reliable power and data transmission over distances well beyond standard Ethernet limits.

Description

These adapters support 802.3bt PoE, delivering up to 90W power over CAT5e or CAT6 cabling. They enable point-to-point Ethernet links exceeding 820 meters while maintaining full 100Base-TX bandwidth. Rugged and maintenance-free, they include smart PoE diagnostics for quick installation and monitoring, making them perfect for outdoor PTZ camera deployments or any long-distance Ethernet setup requiring high power delivery.

Features

Extended Ethernet Range with High-Power PoE
The LONGSPAN Max Adapters overcome traditional Ethernet distance limitations. You can achieve:

• 100Base-TX bandwidth over 820 meters
• 60W power delivery at 250 meters
• 40W power delivery at 390 metersThis makes them suitable for high-demand IP camera systems and long-range network deployments.

Durable and Reliable Design
Built for challenging environments, these adapters are ruggedized to perform across a wide temperature range. They are fully automatic and require no ongoing maintenance, ensuring long-term reliability for critical network installations.

Smart PoE Management and Diagnostics
Each unit includes SAFEVIEW diagnostics, providing clear indicators of data link status and available PoE power. This feature simplifies installation and ensures your devices receive the power they need without interruptions.

Flexible Setup for Base and Camera Units
LONGSPAN Max Adapters are compatible with separate base and camera units, offering a modular approach to long-range Ethernet installations. This flexibility allows easy upgrades or expansion of your network without replacing existing hardware.

Ideal Applications for LONGSPAN Max

• Outdoor and remote IP camera installations
• Long-distance Ethernet links for industrial sites
• High-power PoE delivery for PTZ and other energy-intensive network devices
• Environments requiring ruggedized and maintenance-free networking solutions

FAQ

What cable type should I use for maximum performance?

Cat6 is recommended for improved power delivery and bandwidth, especially for long runs. Using Cat5e is supported but may result in lower power at extreme distances.

Does the Base unit need an external power supply?

You can power the device via PoE (802.3bt), but for maximum PoE output (up to 90 W) to the camera-end device, Veracity recommends using a 54-57 V DC power supply.

Can I power multiple cameras from this Base unit?

The Base unit is designed to pair with a Max Camera unit. For multiple cameras, Veracity offers a “Max Quad” adapter that supports four devices.

Is the device suitable for outdoor installations?

Yes. The Max Base is ruggedised, can operate from -40 degreesC to +70 degreesC, and includes smart diagnostics, making it well-suited for outdoor or industrial use.

How do I know how much power is available?

The SAFEVIEW LED display on the Base unit shows link status, power levels, and diagnostic codes, making it easy to troubleshoot and optimise your setup.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	VER-VLS-LSM-B
POWER
Device Power Consumption	1W
PoE in (Base)	IEEE 802.3bt Input (30W Max. - Optional DC Power Input Connection Recommended)
PoE Out (Camera)	IEEE 802.3bt Output
DC Power in (Base or Camera)	Detachable Screw Terminal (Veracity PoE PSU Recommended for Max. 90W Output)
LONGSPAN INTERFACE
Connector	RJ45
Cable	CAT6, CAT5e, Patch Wiring Recommended, Other Wiring Auto-Corrected
Rate	200Mbps (100Mbps Full-Duplex) up to 820m (CAT6)
ETHERNET INTERFACE
Connector	RJ45
Cable	Patch or Crossover, Auto-Detected
Rate	100Base-TX Full-Duplex with Auto-Negotiation
LED INDICATORS
Ethernet RJ45	Yellow: Link/Activity, Green: Power Good
LONGSPAN Link RJ45	Yellow: Link/Activity, Green: 10/100Mbps
POE , Base	Power Available (10 / 25 / 40 / 50 / 60W) plus Diagnostic Codes (Red)
POE , Camera	Power Available (5 / 10 / 20 / 30 / 40 / 50 / 60 / 70W) plus Diagnostic Codes
	Above 70W with Local Power, 70W is Indicated
	LED Status: Blue - On and Available
	LED Status: Purple - Approaching Available Power Limit
	LED Status: Red - Power Limit Exceeded
PHYSICAL/ENVIRONMENTAL
Dimensions , Base Device (L x W x H)	120 (Including Brackets) x 36 x 23mm
Dimensions , Camera Device (L x W x H)	113mm (Including Brackets) x 75 x 22mm
Weight , Base Device	100g
Weight , Camera Device	161g
Operating Temperature	-40~70degreesC
Relative Humidity	85% Non-Condensing
Compliance	FCC, CE, RoHS, UKCA, BS EN 50121-4 (Rail + Metro)
