WD23PURZ

Overview:

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.

Features:

Western Digital's Exclusive AllFrame™ Technology
All WD Purple drives are equipped with AllFrame™ technology, which helps reduce video frame drops and improves video recording and playback.

Enhanced Workload Ratings
WD Purple drives feature a workload rating of up to 180TB/year2 - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.

Multiple Cameras, Multiple Streams
Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras5. With so many options, you have the flexibility to upgrade or expand your security applications in the future.

Wide Compatibility. Seamless Integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you.

Specifications:

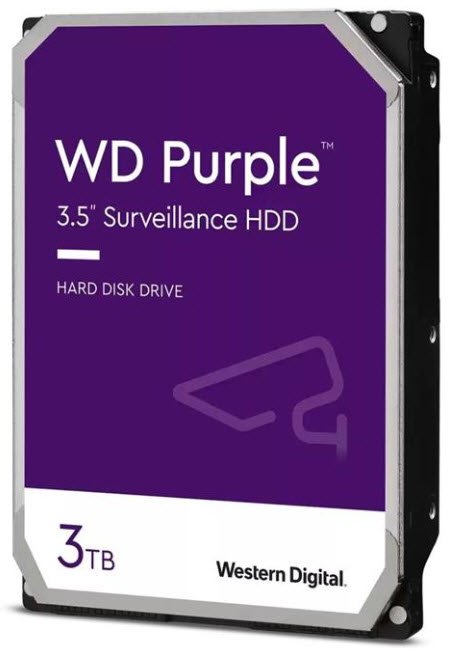

• Product code: WD23PURZ
• Description: Western Digital Purple
• Capacity: 3TB
• Form Factor: 3.5-Inch
• Connector: SATA
• Compatibility
• Up to 64 HD cameras
• Up to 16 drive bays
• All Frame firmware technology
• Interface: SATA
• Transfer Rate: up to 175MB/s
• Recording Technology: CMR
• Cache Size: 256MB
• Dimensions (L x W x H): 5.79" x 4" x 1.03"
• Weight: 570gms
• Operating Temperature: 0°C to 65°C
• Non-Operating Temperature: -40°C to 70°C
