CNV-LKV671KVM-TX

Overview

Lenkeng LKV671KVM HDMI KVM Extender TX for 4K 30Hz over 100m CAT6/6A/7
The Lenkeng LKV671KVM transmitter is designed for long-distance HDMI and USB KVM signal extension over a single CAT6, CAT6A, or CAT7 cable. It delivers stable 4K video transmission up to 100 meters while maintaining near zero latency, making it suitable for control rooms, digital signage, conference environments, and professional AV installations.

This model, part number CNV-LKV671KVM-TX, is the transmitter unit of a point-to-point or one-to-many KVM extension system and is engineered to maintain signal integrity without compression.

Description

The LKV671KVM TX unit enables high-performance HDMI and USB KVM extension with support for 4K UHD video and real-time responsiveness. It combines HDMI loop-out functionality for local monitoring with EDID passback to ensure consistent display recognition across connected devices. Built for professional environments, it supports stable transmission over long distances using standard structured cabling, reducing the need for direct HDMI runs and improving installation flexibility.

Features

Long Distance 4K HDMI KVM Transmission Over CAT Cable
The system is built to extend HDMI and USB KVM signals up to 100 meters over a single CAT6/6A/7 cable. It supports 4K at 30Hz alongside a wide range of lower resolutions for compatibility with legacy and modern display systems. This makes it suitable for distributed AV setups where source equipment must be located far from the display or control station.

Stable Zero Latency Signal Extension Performance
Using advanced video processing, the LKV671KVM TX maintains near zero latency transmission without compression artifacts. This ensures smooth real-time control for keyboard and mouse operations, which is critical for interactive applications such as system monitoring, control rooms, and industrial environments.

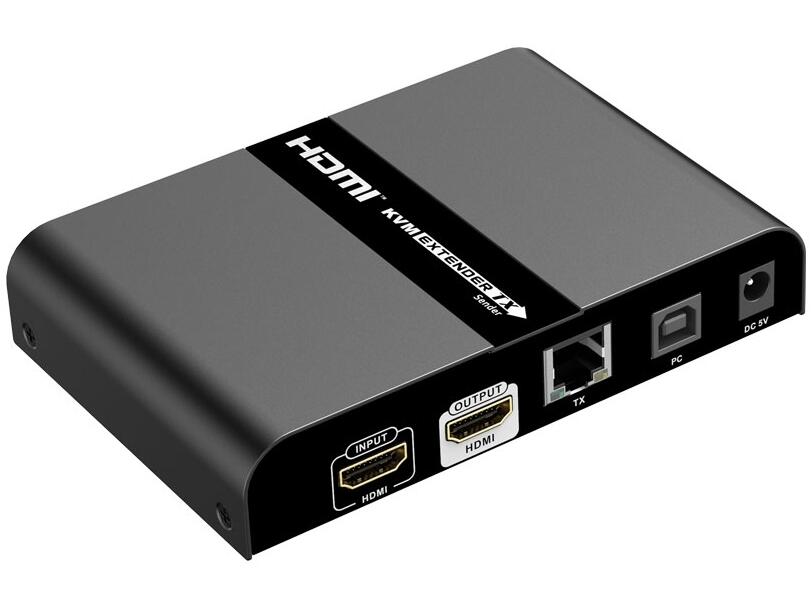

Connectivity and Interface Layout
The transmitter provides flexible connectivity for professional integration. Key interfaces include HDMI input, HDMI loop-out, USB for KVM functionality, and RJ45 output for CAT cable transmission.

Key interface points:

• 1 x HDMI input (Type A, female, 19-pin)
• 1 x HDMI loop-out for local display monitoring
• 1 x USB port for KVM control
• 1 x RJ45 output for CAT6/6A/7 transmission
• DC 5V power input

SKU: CNV-LKV671KVM-TX

Technical Performance and Supported Formats
The unit supports a broad range of video resolutions and audio formats, ensuring compatibility across different AV systems.

• Video resolutions supported: 800x600 up to 4096x2160 at 30Hz, including 1920x1080 and 2560x1080
• HDMI compliance: HDMI 1.4
• HDCP compliance: HDCP 2.2
• Maximum bandwidth: 10.2 Gbps
• Audio formats: PCM, LPCM, Dolby, DTS
• TMDS input signal range: 0.7 to 1.2 Vp-p
• DDC signal level: 5 Vp-p

Electrical and Environmental Details
Designed for continuous professional operation with low power consumption and stable environmental tolerance.

• Power supply: DC 5V 1A
• Power consumption: less than 3W (TX unit)
• Operating temperature: 0 to 60C
• Storage temperature: -10 to 70C
• Humidity tolerance: 0 to 90 percent non-condensing
• Electrostatic protection: IEC61000-4-2 Level 3 contact and air discharge

Physical Build and Installation Notes
The transmitter is housed in a durable metal alloy chassis with a powder-coated black finish and crystal panel detailing. It is compact and suitable for rack or surface installation in professional environments.

• Dimensions: 132.37 x 89.70 x 24.90 mm
• Weight: approximately 320 g
• Material: metal alloy construction
• Installation type: fixed or rack-adjacent deployment

The design prioritizes stable thermal performance and reliable long-term operation in demanding AV setups.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CNV-LKV671KVM-TX
Part No.	LKV671KVM
Technical	Transmitter-TX
HDMI compliance	1.4
HDCP compliance	2.2
Video bandwidth	334MHz
Transmission distance	100?( CAT6)
Video support	720x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x800@60Hz, 1280x1024@60Hz,1440x900@60Hz,1680x1050@60Hz,1920x1080@60Hz , 2560x1080@60Hz , 3840x2160@30Hz , 4096x2160@30Hz
Audio support	PCM
InputTMDS signal	1.2Vp-p
loop-out on TX	yes
IR passback	no
Input	1 x HDMI,1 x USB,DC2.1
Output	1 x HDMI,1 x RJ45
HDMI conector	Type A, Female, 19-pin
RJ-45 connector	RJ-45
Power supply	5V1A
Consumption	TBD
Operation temperaure	0~60degreesC
Storage temperature	-10~70degreesC
Relative humidity	0~90%(non-condensing)
Mechanical	Transmitter-TX
Dimensions(L x W x H mm)	132.37 x 89.70 x 24.90mm
Net weight	TBD
