MT-RB5009UG+S+IN MikroTik RB5009UG+S+IN heavy duty Router with 7x Gigabit & 1x 2.5GB & 1x 10G SFP+ Ports

MT-RB5009UG+S+IN

Click to view larger image
computers

R 3,985.00

inc. VAT

In Stock

Add To Cart

Rate

MikroTik RB5009UG+S+IN heavy duty Router with 7x Gigabit & 1x 2.5GB & 1x 10G SFP+ Ports

Images are for illustrative purposes and actual product may differ.

MT-RB5009UG+S+IN

Wireless Routers (Stand-alone / WAN / Mesh)

MikroTik

MT-RB5009UG+S+IN information and overview

MikroTik RB5009UG+S+IN heavy duty Router with 7x Gigabit & 1x 2.5GB & 1x 10G SFP+ Ports, RouterOS license L5, RouterOS Operating System, RouterOS Operating System, 1 GB RAM, 1 GB storage size, 7x 10/100/1000 Ethernet Ports, 1x 2.5G Ethernet Ports, 1x SFP+ Ports, 3x DC inputs

Specifications & more information about MT-RB5009UG+S+IN, Wireless Routers (Stand-alone / WAN / Mesh) manufactured by MikroTik

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Features:

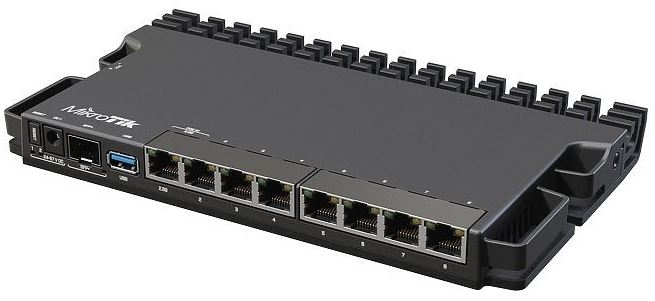

RB5009UG+S+INThe ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MT-RB5009UG+S+IN
Specifications
Product code	RB5009UG+S+IN
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
RouterOS license	5
Operating System	RouterOS (v7 only)
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Powering
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	20 W
Max power consumption without attachments	14 W
FAN count	Passive
PoE in	802.3af/at
PoE in input Voltage	24-57 V
Ethernet
10/100/1000 Ethernet ports	7
Number of 2.5G Ethernet ports	1
Fiber
SFP+ ports	1
Peripherals
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1
Other
CPU temperature monitor	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
